1. Core
Specifications
Processor: AMD Ryzen 7 5700U (8C/16T, 1.8GH z~ 4.3GH z, 15W~28W TDP)
Graphics: Integrated AMD Radeon RX Vega 8 (8 cores, 1900MHz)
RAM: 32GB DDR4 Dual-Channel (Expandable to 64GB via 2×SO-DIMM slots)
Storage: 512GB M. 2 SATA SSD + 2×M. 2 slots (1x NVMe/SATA, 1x SATA-only, up to 4TB total)
2. Connectivity & Ports
Wireless: Wi-Fi 6 + Bluetooth 5.2

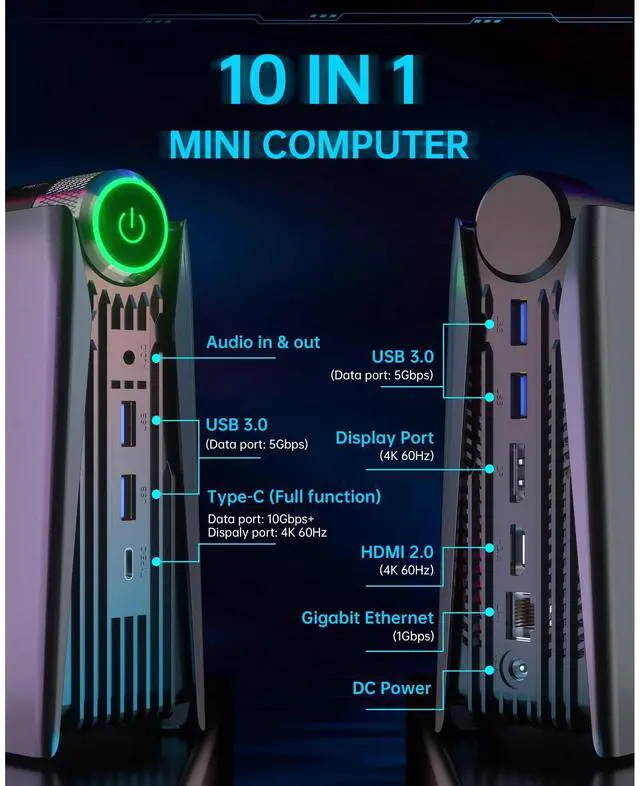

Wired: 1×Gigabit LAN, 6×USB ports (2×10Gbps front, 4×5Gbps rear), 1×USB-C (10Gbps/DP/PD)
Display: HDMI 2.0, DP 1.4 b, USB-C (4K@60Hz each), supports triple-screen output
3. Design & Cooling
Size: 128×128× 41.3 mm (Black-gray ABS+PC shell)
Cooling: Y-shaped heat pipes, 47, 188mm² copper fins, turbo-charged silent fan
4. Key Features
RGB Lighting: Default rainbow effect (customizable via forum software)
Power Modes: 15W/20W/28W adjustment (Silent/Balanced/Performance)

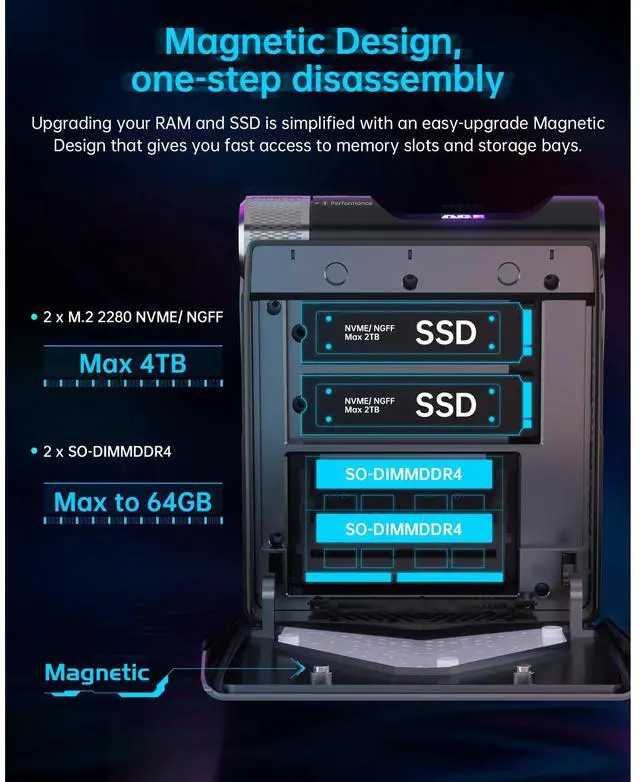

Upgradability: Magnetic quick-release cover for easy access
5. Inclusions
Package: Mini PC, 19V/ 3.42A adapter, HDMI cable, manual (no mounting accessories)
OS: Pre-installed Windows 11 Pro
