Micro Firewall Appliance, Fanles Mini PC, J6412, H13, pfSense, OPNsense, VPN, Soft Router, AES-NI, 4 x Intel I226, HDMI, DP, COM, 4G/5G SIM Slot, 8G DDR4 RAM, 128G SSD
Limited time offer, ends 04/22 By CoreDepot
- Quad-core processor with 2.00 GHz base frequency, delivering efficient performance for firewall and routing tasks.
- Supports up to 32GB DDR4 memory and dual storage options including M.2 NVMe and SATA 3.0 for flexible expansion.
- Features four 2.5 Gigabit Ethernet ports for high-speed network connectivity and traffic handling.
- Offers multiple expansion slots for 4G/5G modules and Wi-Fi/Bluetooth, enabling versatile WAN and wireless setups.
- Includes reliability enhancements such as Watchdog, scheduled boot, Wake-on-LAN, and wide operating temperature support.
- Compact metal chassis (136×126×40 mm) with low power consumption, ideal for space-constrained and always-on deployments.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker H13
Chassis: Full aluminum
CPU: Intel® Celeron® Processor J6412, 1.5M Cache, up to 2.60 GHz
AES-NI Supported: Yes
Memory: 2 x DDR4 3200MHz solt, uo to 32GB, SODIMM
HDD/SSD: 1 x M. 2 (NVME protocol), 1xSATA 3.0

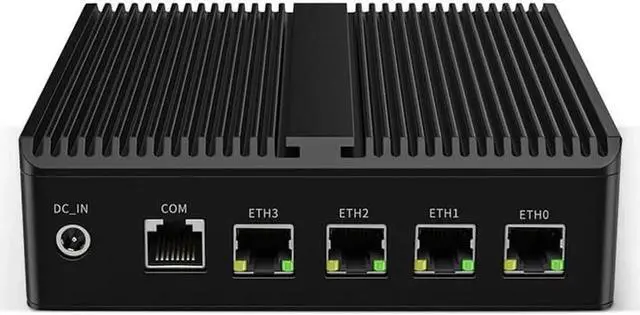

Ethernet: 4*Intel i226 2.5G, Support diskless startup and wake-on-LAN

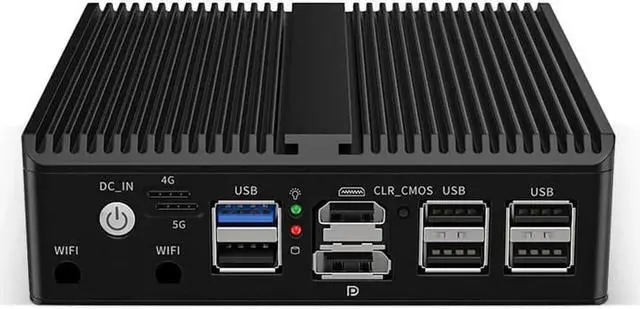

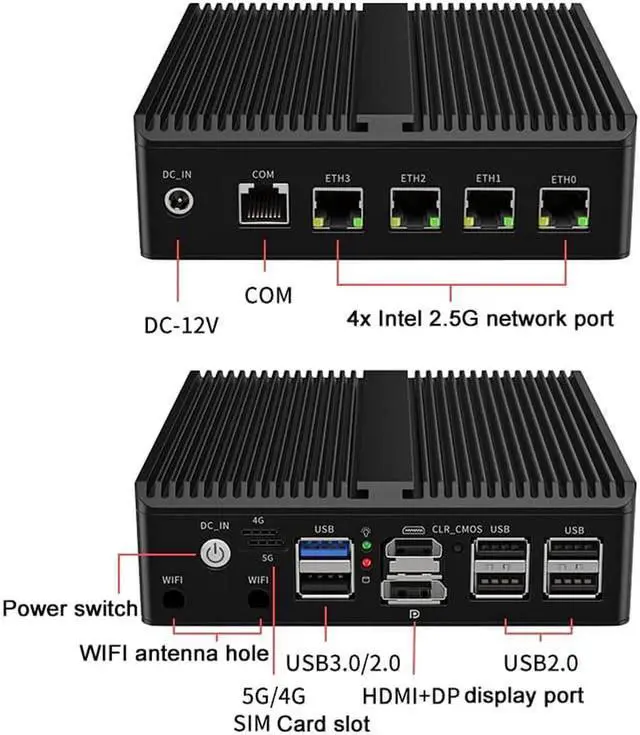

I/O Ports: 4*intel 2.5G LAN, 1*DC, 1*USB 3.0, 5*USB 2.0, 1*DP, 1*HD, 1*Switch, 1* Power
indicator light, 1*clr-cmos, 1*4G SIM solt, 1*5G SIM solt
Expansion: 1*full-length MINI-PCI-e (supporting USB signal 3G/4G communication module), 1*M. 2 2242 (supporting 5G universal)
Power: DC12V-4A 5.5 * 2.5

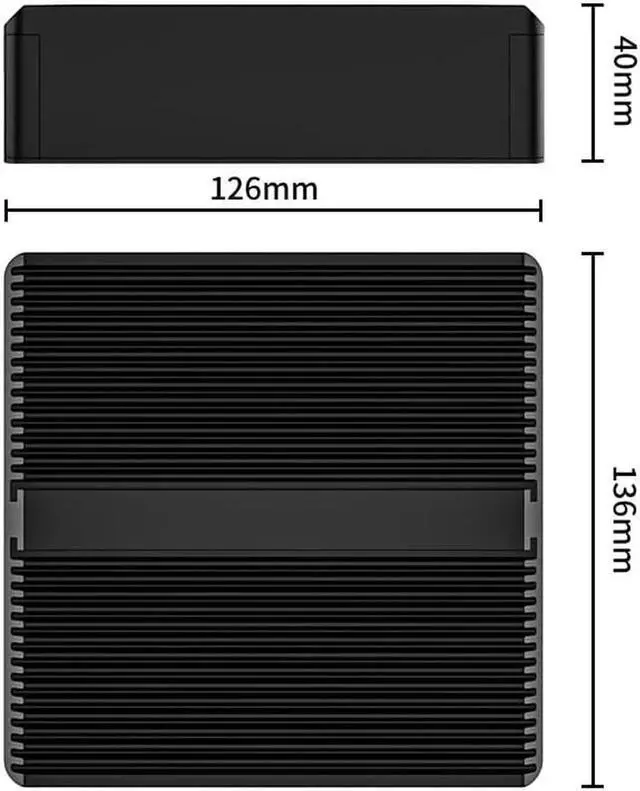

Size: 136x126x40 (mm)
Weight: 1.5 kgs
Operating Temperature: 0°c~70°c centigrade (32°f~140°f)
Storage Temperature: -20°c~80°c centigrade (-68°f~176°f)
Relative Humidity: 10%~90% (non-condensing)
TDP: 10W
Function: Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog
Cooling system: Fanless
BIOS: AMI EFI BIOS
System Support: Windows, Linux Ubuntu, pfSense, OPNsense etc, pfSense will install as default system
Packing List: 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
COMPATIBILITY: firewalls tested with pfsense, untangle, opnsense and other popular open-source software solutions
