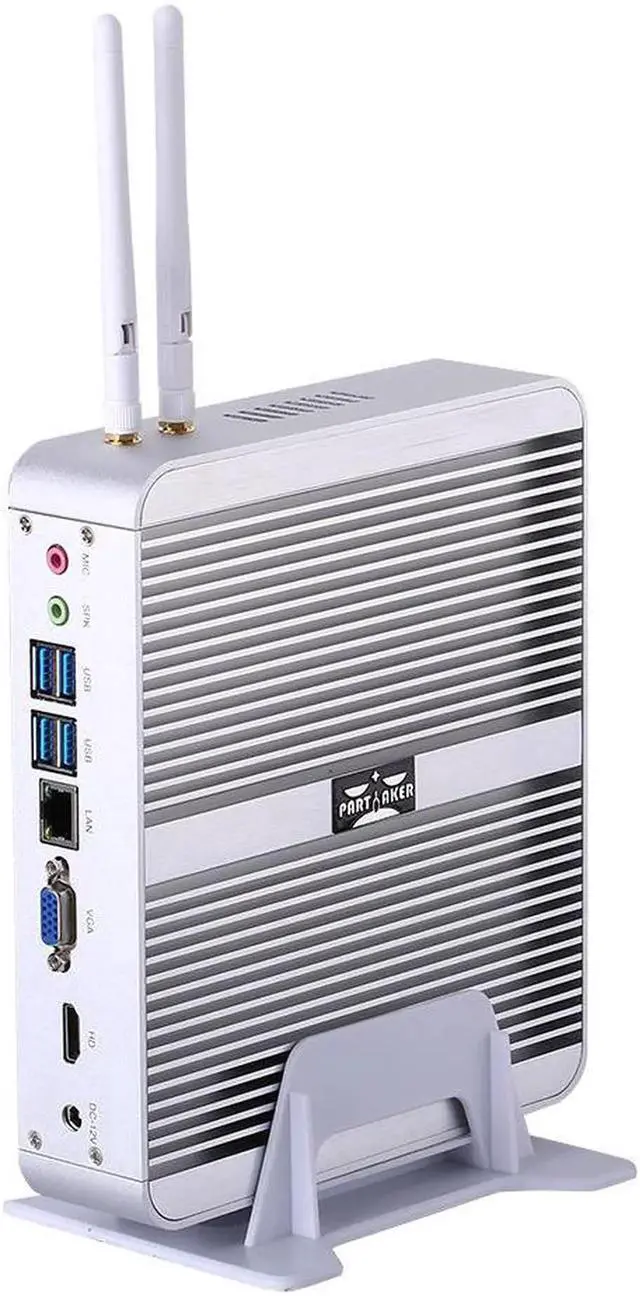

4K Fanless Mini PC Windows 10 Pro/Linux Ubuntu Intel Quad Core I5 8250U Silver DDR4 8GB RAM 64GB SSD Partaker B16 HD Graphics/HD-MI/VGA Dual Output/Dual Band Wi-Fi Micro Desktop Computer

Model Number: Partaker

B16 Color: Silver

Version: Faless

Operating System: Support Windows and Linux Ubuntu

CPU Parameters:

Architecture: 8th Generation Intel Core Kaby Lake R

Processor Core: quad core

Threads: eight threads

TDP: 23W

Hardware Parameters: CPU

interface: BGA

CPU: Intel I5 8250U quad core 1.6GH z CPU Turbo 3.40GHZ CPU bus (FSB) 100MHz

Chipset: Intel SOC chipset with

L3 Cache 6MB BIOS: AMI BIOS, ACPI supported

Memory: 2 SO-DDR4 SDRAM memory slots up to 16GB* 2 Max 32gb ram

Graphic: Intel UHD

Graphics 620 CRT: VGA output interface + HD output and synchronize output

NIC: Onboard RTL 8111DL 10/100/1000 BaseT LAN + Super Signal 300M Dual Antenna WIFI 802.11.

b/g/n Sound card: ALC892 chip, providing 6-channel sound

SATA: 1* MSATA 3.0 interface, support 6Gb/s, 1* SATA3 support 6Gb/s, 1* ngff interface with 2280 M. 2 hard drive (support both sata and pci-e)

MINI PCIE: 2* MINI PCIE interfaces, full height support MSATA solid state hard drive, Half height support MINI PCIE wireless network card

WIFI: 300M WIFI built-in module, dual external antennas enhanced signal

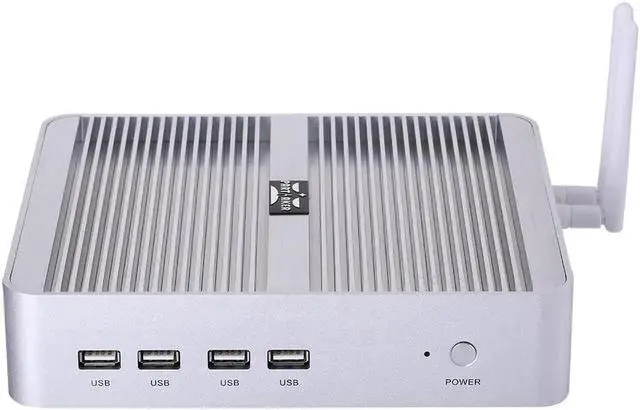

USB: 8 USB with 4 USB 3.0 + 4 USB 2.0

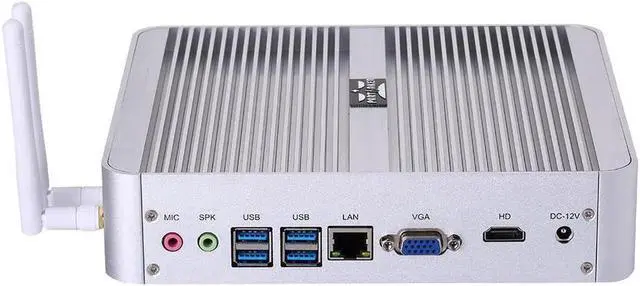

Rear panel: 1* VGA+1* HD+ 1*RJ-45+ 4 *USB ports+ 1*DC (in) 12V/19V+ AUDIO-OUT+ AUDIO-MIC

Power supply: DC IN 12V power supply 5a

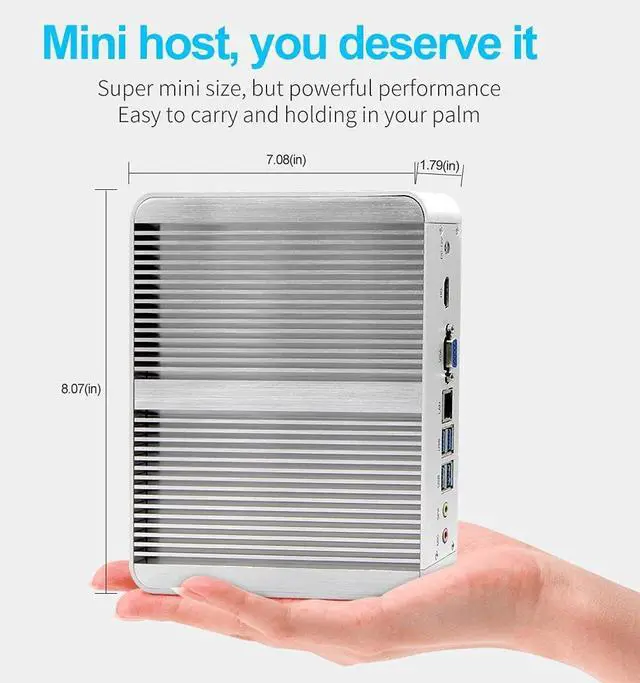

Size: 21* 17* 4.5 cm

Net Weight: 1.65 kgs

Temperature: Operating

Temperature: 0°C~70°C (32°F~140°F)

Storage Temperature: -20°C~80°C (-68°F~176°F)

Relative Humidity: 10%~90% (non-condensing) Installation Desktop/Embedded/Vesa

Mount Application: Widely Used in Home, Business, Industry, Office, Education area.

System: Support Windows and Linux Ubuntu
