Industrial mini pc intel core i5 4200U with 6COM RS232 RS422 RS485 HD VGA GPIO ports for medical industry 4GB Ram 128GB SSD

About this item

1. Intel dual core i7 CPU, 4 MB Cache, Base Frequency 1.8GHz, Max Turbo Frequency 3.0GHz, 22 nm Lithography, Windows 10 (64-bit) license.

1. It comes with DDR3L RAM, SSD(Solid State Disk). And you can expand the storage with an extra 2.5 inch SATA SSD/HDD drives inside.

1. Intel HD Graphics 4400, 3200x2000; 4K dual Monitor Support via HD&VGA; 6xCOM ports; 8-bit GPIO.

1. Support wake-on Lan, Intel Dual Band 2.4/5.0GHz high speed Wireless Wi-Fi(802.11b/g/n), Fanless, all metal case.

1. We promise two years quality warranty and lifelong customer service, if any questions, please don't hesitate to contact us, we will help you resolve the problem immediately.

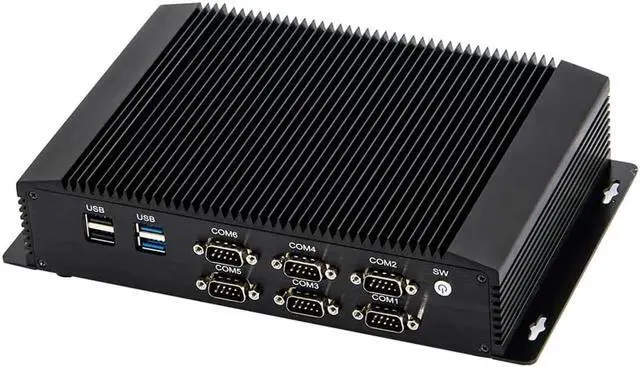

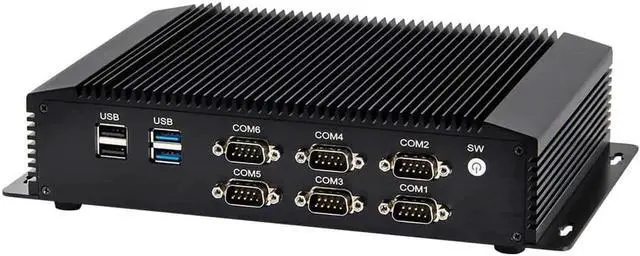

Front-Panel:

6 x COM ports

2 x USB3.0 ports

2 x USB2.0 ports

1 x Power switch button

1 x LED Power Indicator

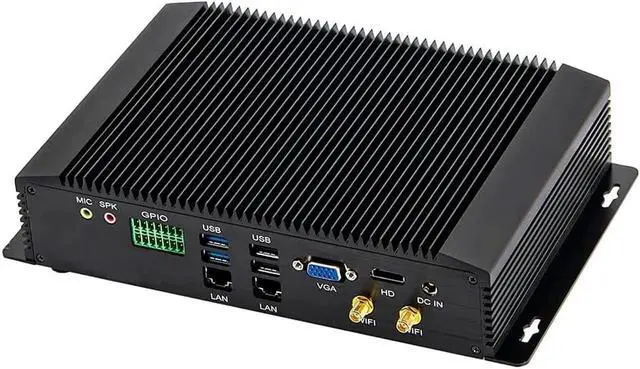

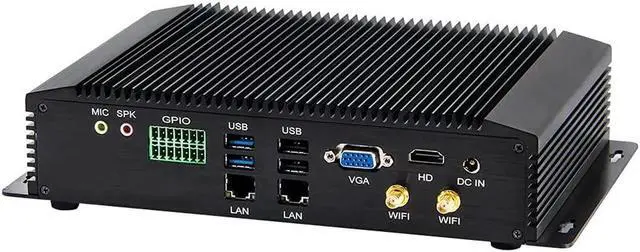

Back-Panel:

2 x USB3.0 ports

2 x USB2.0 ports

2 x Audio Connector

2 x Wi-Fi Connectors for Antennas

2 x RJ-45 ports

1 x GPIO port

1 x LPT port(now the new batch cancelled LPT port)

1 x HD port

1 x VGA port

1 x DC IN

What in Box:

1 x mini pc, 1 x Power Supply, 1 x Power Cable, 2 x WiFi Antennas, Screws.

Power supply: Input:100-240V; Output:12V,5A

Application:

Used in workingshop, factory, Internet Bar, bank, supermarket, library, reading room, hotel, training, call center, CCTV company.

Used as HTPC(Home Theater Personal Computer). Connect HDTV with the HD cable, enjoy education online and play internet movies or games.

Used as Personal Computer, high configuration and fast speed, zero noise.

Industrial Mini PC Intel Core i7-4500U/4650U i5-4200U/4300U Processors, support Windows 10, Windows 8.1, Windows 7, Linux & Ubuntu

Support dual storage 1*mSATA +1*2.5inch SATA SSD/HDD, 4*USB 3.0, 4*USB 2.0 ( total 8x USB prots ),

Dual Intel Gigabit Ethernet LAN ports, Mini PCI-E WiFi 802.11b/g/n(Buletooth optional ), 6x RS232 Serial Ports ( 2x RS485/RS422 optional

HDMI & VGA Dual Display, Aluminum Chassis & Fanless passive Cooling & Zeor Noise & Energy saving,

Watch Dog function, Auto power on, RTC Wake up, Support 3G/4G module and SIM card

1. Dual Intel Gigabit LAN,8USB port.4*USB3.0,4*USB2.0

2. 6 COM port. COM 1&COM 2 Support RS232 RS422 RS485 switch from BIOS setting,no need to open the device.

3. 8Bit GPIO support various user different requirements

4. Special LPT print port.(Due to the shortage of some materials, the parallel port has to be cancelled, please noted.)

5. HD+VGA dual display

6. Half height pcie support Wifi. Full height support 4G

7. Embedded with SIM card slot

8. Support Wake-on-Lan / PXE / 256 Watchdog

9. Industrial grade mini pc.7*24hours working

What in Box: 1 x mini pc, 1 x Power Supply, 1 x Power Cable, 2 x WiFi Antennas, Screws.

Power supply: Input:100-240V; Output:12V 5A

Kindly be noted:

1.The CPU is available for i5-4200U,Dual Core 4M Cache, i5-4200U: Base Frequency: 1.6GHz, Max. Turbo Frequency: 2.6GHz;

Intel HD Graphics 4400: Base Frequency 200MHz, Max Dynamic Frequency 1.0GHz, Max Resolution (HD 1.4):3280x2000@60Hz

2.The Default Operating System is Windows 10 Pro(64-bit), licensed and activated before shipping.

Please check its license condition when it arrives: press "Win+R" keys-input "slmgr.vbs -xpr" to run(note the space between vbs and -xpr)

3.This item has been tested well before shipping. If you have any qustions, please contact us on Amazon. I will do my best to help you.

Front-Panel: 6 x COM ports

2 x USB3.0 ports

2 x USB2.0 ports

1 x Power switch button

1 x LED Power Indicator

Back-Panel: 2 x USB3.0 ports

2 x USB2.0 ports

2 x Audio Connector

2 x Wi-Fi Connectors for Antennas

2 x RJ-45 ports

1 x GPIO port

1 x LPT port(Due to the shortage of some materials, the parallel port has to be cancelled, please noted.)

1 x HD port

1 x VGA port

1 x DC IN

Application:

-Used in working shop, factory, Internet Bar, bank, supermarket, library, reading room, hotel, training, call center, CCTV company.

-Used as HTPC(Home Theater Personal Computer). Connect HDTV with the HD cable, enjoy education online and play internet movies or games.

-Used as Personal Computer, high configuration and fast speed, zero noise.
