Fanless Industrial PC,Mini Desktop Computer with Intel Core I7 4500U Dual Core CPU, 4GB Ram 128GB SSD,6xCOM, 4xUSB 3.0, 4xUSB 2.0, 2xLAN, GPIO, HD Port, VGA, Wi-Fi, Windows 10 Pro

Processor has 2 options suitable for the same motherboard:

1. Haswell 22nm CPU Intel Core i7 4500U 2 cores 4 threads 1.8Ghz Max to 3.0Ghz 4MB cache TDP 15W Intel HD graphic 4400.

2. Haswell 22nm CPU Intel Core i5 4200U 2 cores 4 threads 1.6Ghz Max to 2.6Ghz 3MB cache TDP 15W Intel HD graphic 4400.

Partaker Industrial PC, Fanless Mini Computer, IPC, Windows 10 Pro/Linux Ubuntu, 4G/ WOL/Watchdog Supported, Intel Core I7 4500U/i5 4200U, WiFi/2LAN/GPIO/6COM RS232 422 485,

Function:

1. Green ultra-low power consumption, 7*24 hours

2. 6* COM supports COM1 COM2 for RS232 RS422 RS485 soft switching under BIOS

3. 8-bit GPIO for industrial equipment needs

4. Watchdog for 256-level

5. Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume By Alarm, PXE Lan boot functions

About this item

1. Intel dual core i7 CPU, 4 MB Cache, Base Frequency 1.8GHz, Max Turbo Frequency 3.0GHz, 22 nm Lithography, Windows 10 (64-bit) license.

1. It comes with DDR3L RAM, SSD(Solid State Disk). And you can expand the storage with an extra 2.5 inch SATA SSD/HDD drives inside.

1. Intel HD Graphics 4400, 3200x2000; 4K dual Monitor Support via HD&VGA; 6xCOM ports; 8-bit GPIO.

1. Support wake-on Lan, Intel Dual Band 2.4/5.0GHz high speed Wireless Wi-Fi(802.11b/g/n), Fanless, all metal case.

1. We promise two years quality warranty and lifelong customer service, if any questions, please don't hesitate to contact us, we will help you resolve the problem immediately.

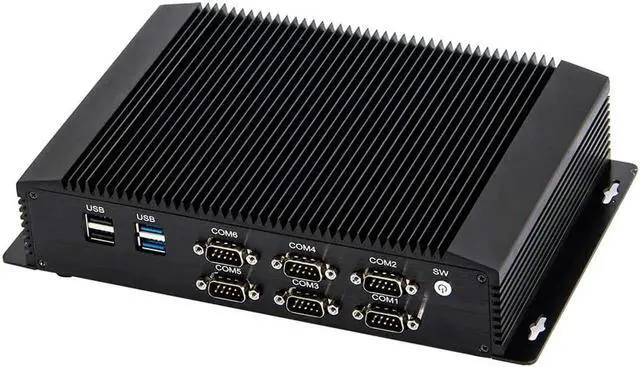

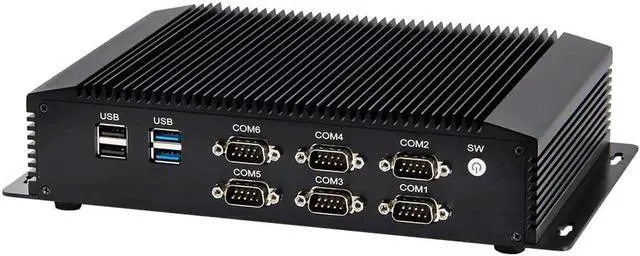

Front-Panel:

6 x COM ports

2 x USB3.0 ports

2 x USB2.0 ports

1 x Power switch button

1 x LED Power Indicator

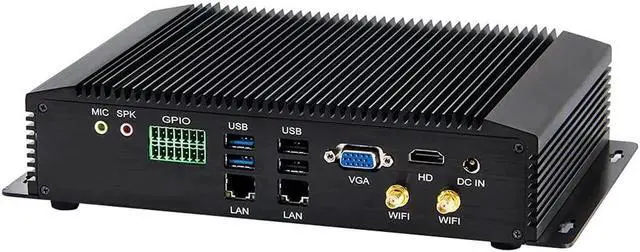

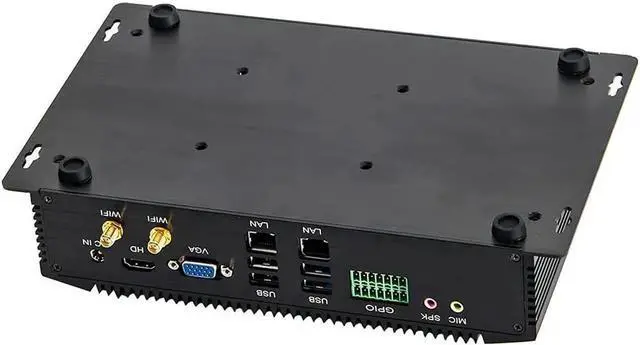

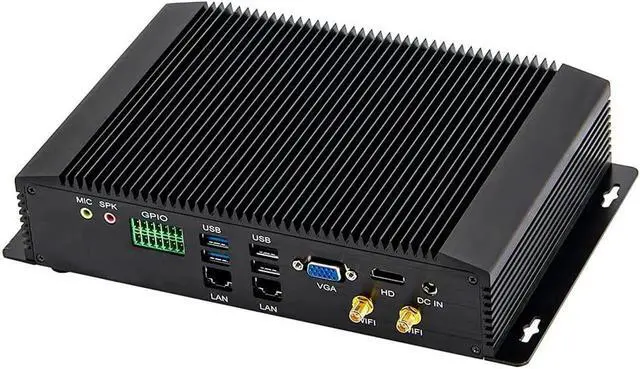

Back-Panel:

2 x USB3.0 ports

2 x USB2.0 ports

2 x Audio Connector

2 x Wi-Fi Connectors for Antennas

2 x RJ-45 ports

1 x GPIO port

1 x LPT port(now the new batch cancelled LPT port)

1 x HD port

1 x VGA port

1 x DC IN

What in Box:

1 x mini pc, 1 x Power Supply, 1 x Power Cable, 2 x WiFi Antennas, Screws.

Power supply: Input:100-240V; Output:12V,5A

Application:

Used in workingshop, factory, Internet Bar, bank, supermarket, library, reading room, hotel, training, call center, CCTV company.

Used as HTPC(Home Theater Personal Computer). Connect HDTV with the HD cable, enjoy education online and play internet movies or games.

Used as Personal Computer, high configuration and fast speed, zero noise.

Industrial Mini PC Intel Core i7-4500U/4650U i5-4200U/4300U Processors, support Windows 10, Windows 8.1, Windows 7, Linux & Ubuntu

Support dual storage 1*mSATA +1*2.5inch SATA SSD/HDD, 4*USB 3.0, 4*USB 2.0 ( total 8x USB prots ),

Dual Intel Gigabit Ethernet LAN ports, Mini PCI-E WiFi 802.11b/g/n(Buletooth optional ), 6x RS232 Serial Ports ( 2x RS485/RS422 optional

HDMI & VGA Dual Display, Aluminum Chassis & Fanless passive Cooling & Zeor Noise & Energy saving,

Watch Dog function, Auto power on, RTC Wake up, Support 3G/4G module and SIM card

1. Dual Intel Gigabit LAN,8USB port.4*USB3.0,4*USB2.0

2. 6 COM port. COM 1&COM 2 Support RS232 RS422 RS485 switch from BIOS setting,no need to open the device.

3. 8Bit GPIO support various user different requirements

4. Special LPT print port.

5. HD+VGA dual display

6. Half height pcie support Wifi. Full height support 4G

7. Embedded with SIM card slot

8. Support Wake-on-Lan / PXE / 256 Watchdog

9. Industrial grade mini pc.7*24hours working

What in Box: 1 x mini pc, 1 x Power Supply, 1 x Power Cable, 2 x WiFi Antennas, Screws.

Power supply: Input:100-240V; Output:12V 5A

Kindly be noted:

1.The CPU is available for i7-4500U,Dual Core 4M Cache, i7-4500U: Base Frequency: 1.8GHz, Max. Turbo Frequency: 3.0GHz;

Intel HD Graphics 4400: Base Frequency 200MHz, Max Dynamic Frequency 1.1GHz, Max Resolution (HD 1.4):3200x2000@60Hz

2.The Default Operating System is Windows 10 Pro(64-bit), licensed and activated before shipping.

Please check its license condition when it arrives: press "Win+R" keys-input "slmgr.vbs -xpr" to run(note the space between vbs and -xpr)

3.This item has been tested well before shipping. If you have any qustions, please contact us on Newegg. I will do my best to help you.

Front-Panel: 6 x COM ports

2 x USB3.0 ports

2 x USB2.0 ports

1 x Power switch button

1 x LED Power Indicator

Back-Panel: 2 x USB3.0 ports

2 x USB2.0 ports

2 x Audio Connector

2 x Wi-Fi Connectors for Antennas

2 x RJ-45 ports

1 x GPIO port

1 x LPT port, (Due to the shortage of some materials, the parallel port has to be cancelled, please noted.)

1 x HD port

1 x VGA port

1 x DC IN

Application:

-Used in working shop, factory, Internet Bar, bank, supermarket, library, reading room, hotel, training, call center, CCTV company.

-Used as HTPC(Home Theater Personal Computer). Connect HDTV with the HD cable, enjoy education online and play internet movies or games.

-Used as Personal Computer, high configuration and fast speed, zero noise.
