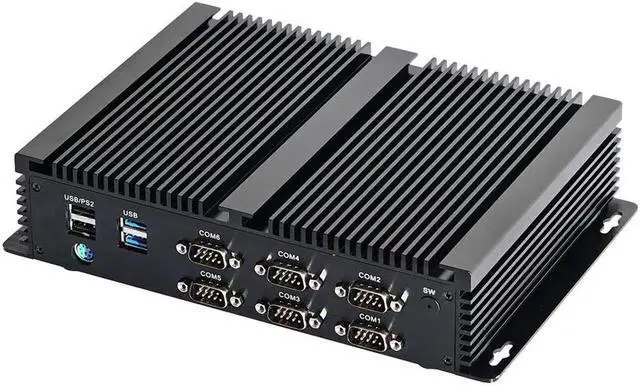

Fanless Industrial Computer, IPC, Desktop PC, Windows 10 Pro/Linux Ubuntu, Intel Core i3 7167U, GPIO, Watchdog, 2*intel i211, 6*COM RS232 RS422 RS485, 8GB Ram 128GB SSD

Product Highlights

- Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat

dissipation, fifit for industrial grade fifield, work as long as 24 hours.

- 2 Intel Gigabit LAN and 6 COM(COM1 COM2 can change to RS232/422/485 from BIOS).

- One embedded SIM card slot onboard for 3G/4G Wi-Fi module.

- Support VGA + HDMI dual display output synchronously.

- Low consumption can save much energy and eco-friendly.

- Support Watchdog, AWAL, RTC, WOL, PXE.

About print Logo:We can making your logo on the product case by laser printing.( If you need pls provide us a high-definition picture by JPG/PDF/PNG format).

Function

1. Green ultra-low power consumption, 7*24 hours

2. 6* COM supports COM1 COM2 for RS232 RS422 RS485 soft switching under BIOS

3. 8-bit GPIO for industrial equipment needs

4. Watchdog for 256-level

5. Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume By Alarm, PXE Lan boot functions

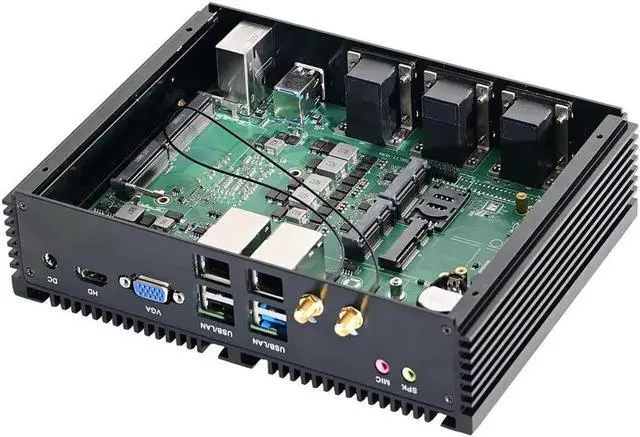

6. Expansion: 1* MSATA3.0 6Gb/s, 1*SATA3 6Gb/s, 1*ngff M.2 2280 (sata/nvme); 1* WiFi half size Mini PCIE; 1* WiFi full size Mini PCIE(Support 4G, with SIM slot)

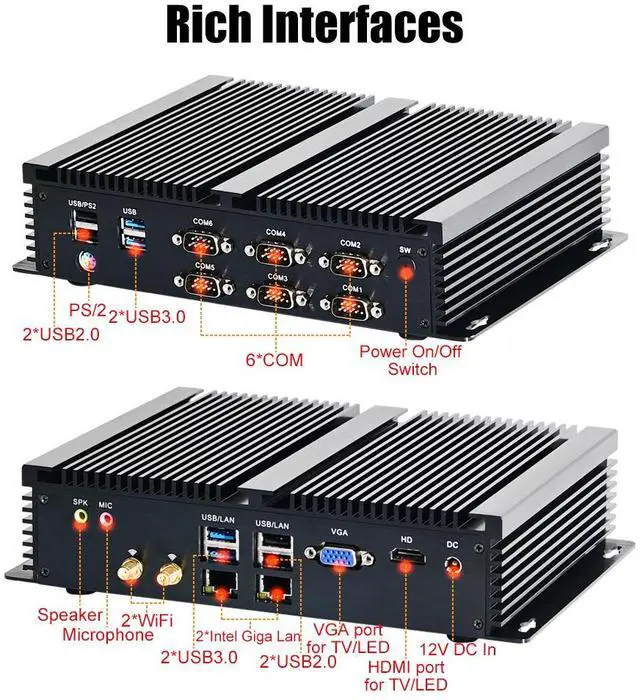

Rich Interfaces

Network: Intel i210/i211 Gigabit Network Connection, 10/100Mbps/1000Mbps BaseT LAN

Audio: Intel Kaby Lake HD-MI Intel Sunrise Point-LP PCH - High Defifinition Audio Controller

Funcation: Watchdog, AWAL, RTC, WOL, PXE

Model Number: I11

CPU: Intel Core i3-7167U Processor

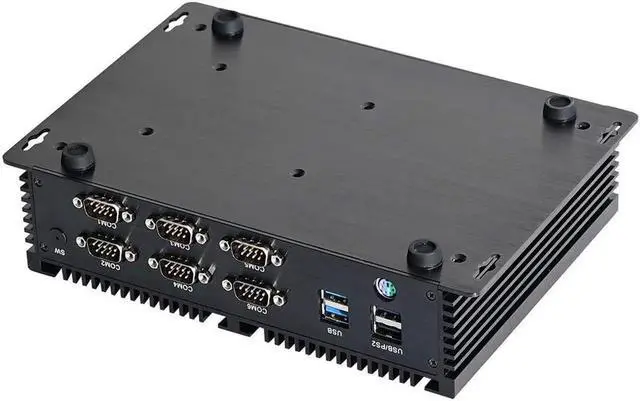

Type: IPC type with mounting ears

Graphic: Intel® Iris® Plus Graphics 650

Material: Aluminum

Color: Black

Memory: 1* SO-DIMM DDR4, max. 32GB

Storage: 1* Msata SSD+1* M.2 2280 SSD+ 1* 2.5 Inch HDD

Expansion: 1* MSATA3.0 6Gb/s, 1*SATA3 6Gb/s, 1*ngff M.2 2280 (sata/nvme); 1* WiFi half size Mini PCIE; 1* WiFi full size Mini PCIE(Support 4G, with SIM slot)

Audio: ALC662

Network: 2* intel i211 Gigabit

WiFi: With dual antennas, 802.11ac 2.4+5Ghz (4G could be customized, contact us)

Bluetooth: 4.0/4.2

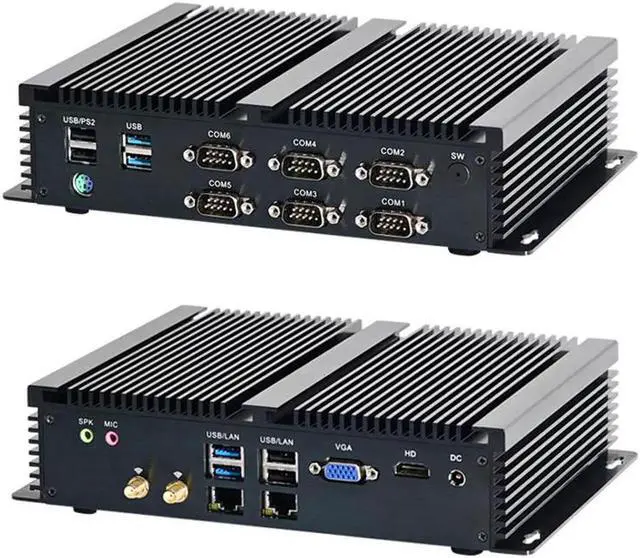

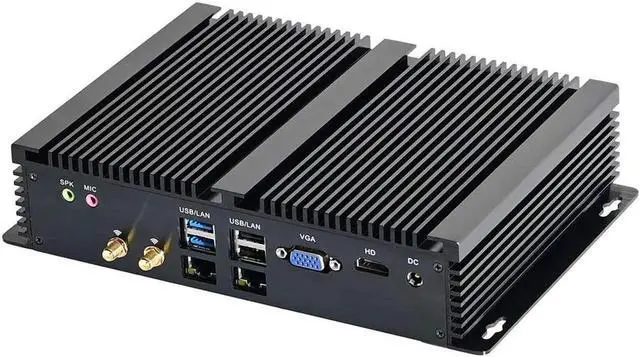

I/0 Port: 4*usb3.0+ 4* usb2.0+ 2* lan+ vga+ HD+ 6* com+ dc+ sw+ps/2

Power: DC100-240V AC/50-60Hz, DC 12V3A

Operating Temperature: -10°C~60°C (32°F~140°F)

Storage Temperature: -20°C~80°C (-68°F~176°F)

Relative Humidity: 10%~90% (non-condensing)

Weight: 1.25KGs

Measurement: 210*155*50mm

Consumption: 28W

Cooling system: Fanless

Function: 1. Green ultra-low power consumption, 7*24 hours

2. 6* COM supports COM1 COM2 for RS232 RS422 RS485 soft switching under BIOS

3. 8-bit GPIO for industrial equipment needs

4. Watchdog for 256-level

5. Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume By Alarm, PXE Lan boot functions

System Support: Windows 10,Linux Ubuntu,Vxworks etc;

And hardware supports kodi, virtual system as proxmox/vmware/esxi server etc

System Default Option: Windows 10 pro in English

Packing List: Industrial PC+ Power supply+ Power Cord+ WiFi antennas+ Warranty Card

For other options, Linux or other OS,other system language, Do leave us message on the order, thank you.
