Fanless Mini PC, Mini Desktop PC, Industrial Computer Intel Core i5 3317U Processor 8GB Ram 128GB SSD Windows 10 Pro Mini PC, Wi-Fi, LAN, VGA, HD,Dual Output

This Mini PC Motherboard can install 2 types of processors

1. CPU Intel Celeron 1037U/1007U 2 core 2 threads 2MB cache 1.8GHz TDP 17W Graphics HD 2500.

2. CPU Intel Core i5 3317U 2 core 4 threads 3MB cache 1.7GHz Max 2.6GHz TDP 17W Graphics HD 4000.

CPU 1037U/1007U/I5 3317U/I5 3337U will ship randomly per the stock.

1. Processor (CPU): Intel Ivy Bridge i5-3317U, 1.70 GHz, 3 MB cache, up to 2.60 GHz
2. Memory (RAM): Supports 2G / 4G / 8G DDR3 memory, Maximum capacity: 8GB
3. Socket: 1 * 204-pin SO-DIMM
4. Graphics: Intel HD Graphics 4000
5. Memory (SATA / mSATA): Supports 2 * 2.5 inch SATA laptop HDD or SDD / 1 * mSATA SSD
6. Language: Multilingual
7. Power consumption: Theoretically max 15W, real use max. 8.7W, TDP Down 7.5W
8. Material: aluminum housing

Highly efficient Intel Core i5-3317U Processor

The mini PC supports Windows 10 Pro and is equipped with the advanced 64-bit Intel Core i5-3317U Processor, 1.70 GHz (Dual-core processor, 3M Cache, up to 2.60 GHz). It can decode and transfer your data at breathtaking speed. Bring it home, experience its ultra-fast performance to instantly receive your favorite shows and movies.

OEM Windows 10 Professional

The Operating System is activated,Default version: OEM Windows 10 Pro,Optional: Windows 7, 8, Linux Ubuntu etc.; Turn any monitor or TV into a complete PC with this Windows Mini PC. All programs supported by Windows 10 such as Microsoft Office, KODI, VLC, TeamViewer & Skype can be installed without any problems.

Chassis cooling

Fanless cooling, noise-free, 100% semiconductor components ensure a longer life of the product. Energy saving, green, low power consumption. 29mm ultra-thin brushed aluminum shell, the cooling effect is very good, the temperature control at 40-50 degrees;

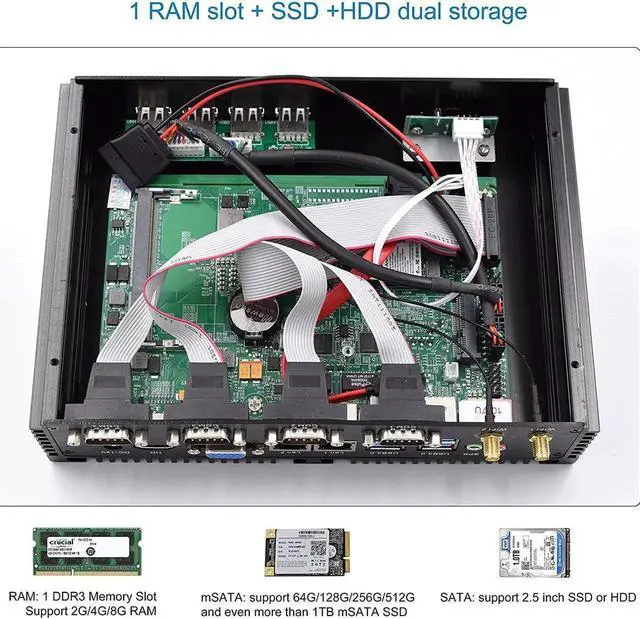

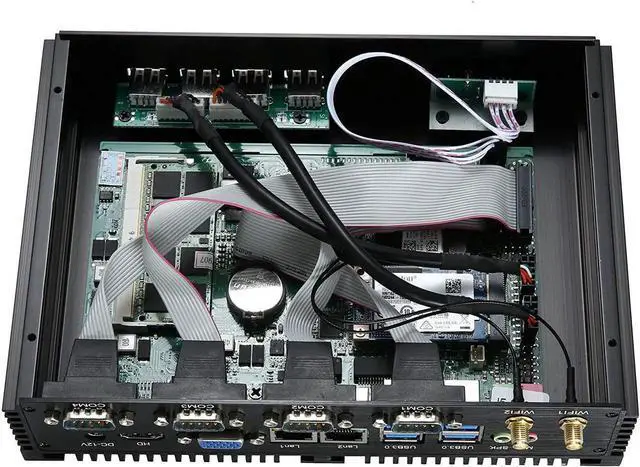

Scalable slot

Max capacity: 8 GB

Socket: 1 * 204 pin SO-DIMM

SATA: Support 2 * 2.5 inch SATA laptop HDD or SSD

mSATA: Supports 1 * mSATA SSD

Memory battery: 3V CR2032 lithium manganese battery

Kindly be advised:

1, The Processor is Intel i5-3317U CPU: Dual Core, Quad Thread; Base Frequency: 1.7GHz, Max. Turbo Frequency: 2.6GHz, 3MB Smart Cache,

Integrated Intel HD Graphics 4000:Graphics Base Frequency: 350 MHz; Graphics Max Dynamic Frequency: 1.05 GHz.

2, The Operating System is Windows 10 Pro, licensed and activated before shipping.

Please check its license condition when it arrives: press "Win+R" keys-input "slmgr.vbs -xpr" to run(note the space between vbs and -xpr).

3, it has been tested well before shipping, if any questions, please feel free contact us, you will get a satisfied solution.

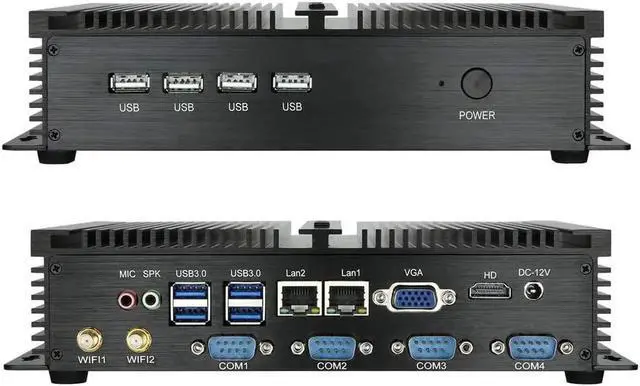

Front-Panel Connectors:

1 x Power switch button (Power LED)

1 x HD LED, Power LEDs

4 x USB 2.0 port s

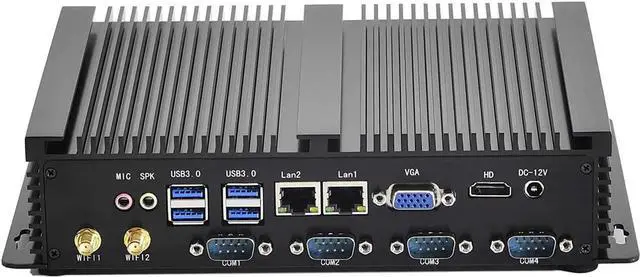

Back-Panel Connectors:

1 * 12V DC input

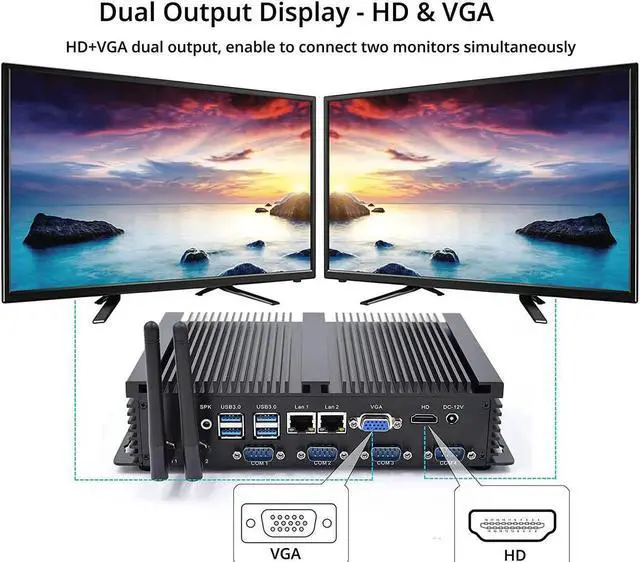

1 * HD port

1 * VGA port

2 * Intel 82574L Giga LAN Port.

4 * USB 3.0 ports

4*COM ( RS232 ) ports

2 * Audio Connector(for Speaker and Microsoft)

Application:

-Used in working shop, factory, Internet Bar, bank, supermarket, library, reading room, hotel, training, call center, CCTV company.

-Used as HTPC(Home Theater Personal Computer). Connect HDTV with the HD cable, enjoy education online and play internet movies or games.

-Used as Personal Computer, high configuration and fast speed, zero noise.

What in Box:

1 x mini PC,1 x Power Adapter,1 x Power Cable,2 x Wi-Fi Antennas,Screws

Power supply: Input:100-240V,0.8A; Output:12V,3A.

Wide use

The Partaker Fanless mini PC is very versatile, such as: Monitor, Surveillance, TV, Digital Signage, Printer, Projector, etc. It will be a superb mini fanless computer.

Model Number: Partaker

I2 CPU: Intel Core i5-3317U Processor (3M Cache, up to 2.60

GHz) Graphics: Intel HD

Graphics 4000 Memory: 1* DDR3/L/-RS 1333/1600 (MAX.

8G RAM) Storage: 1* Msata SSD+1* 2.5 Inch

HDD Network Card: Dual Intel 82574L Gigabit Network Card

Audio Cards: ALC662 sound chip

WiFi: With dual antenna, 802.11.

b/g/n I/0 Port: 4*USB 2.0 + 4*USB 3.0 + 4*COM+ 2*RJ45Lan port gigabit+ 1*HD+ 1*VGA+ 1*MIC+ 1*SPK+ 1*DC-IN jack+ 1*On/Off

Power Switch Power: DC100-240V AC/50-60Hz, DC 12V

Noise: Fanless System

Operating Temperature: 0/70 Centigrade(32F~140F)

Storage Temperature: (-20/+80) Centigrade

Relative Humidity: 10%~90%(non-condensing)

Temperature: 0-70

Centigrade Humidity: 10%-90%

System: Support Windows XP/7/8/ 8.1 /10, WES7/8, Linux, Vxworks etc; Except Barebone without RAM, SSD, HDD, and without any system. Others with

Windows 10 pro (language: English) as the default option, and linux ubuntu or other language options needs to leave the message on the order, thank you.

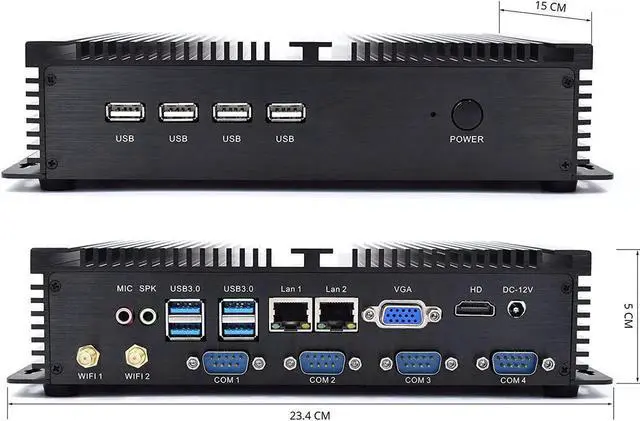

Size: 234*150*48MM

Weight: 2.5KGS

Special Tip: Barebone System Configuration actually is NO RAM No Storage No System Included, due to system restrict, However we choose 1G DDR3 to be displayed but actually no RAM. Please special attention, NO RAM NO SSD NO HDD for Barebone!! Please read carefully before purchase, we don't accpet return due no RAM no Storage no System.
