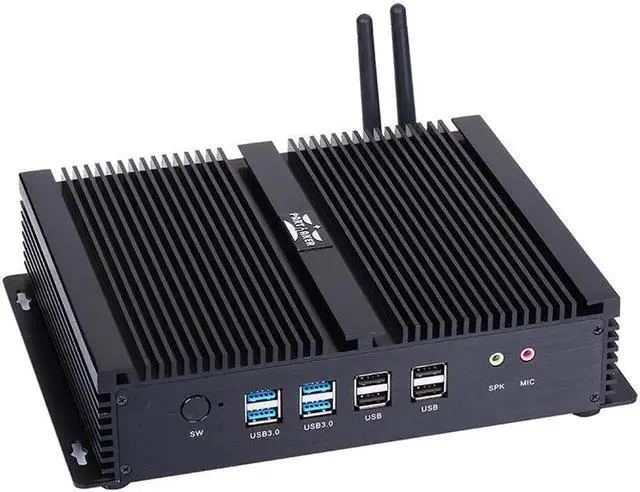

Industrial Mini PC I5 4200U 2 HDMI 6 COM 2 Intel Nic 4G RAM 64G SSD I4

Key Features

CPU Intel Core i7 4500U/Core i5 4200U/Core i3 4010U/5005U

RAM : Support 2G/4G/8G DDR3L

Storage Support 1*mSATA and SATA SSD/ 2.5 inch laptop HDD;Can install 1piece HDD(2.5 inch) and 1 piece SSD(mSATA 3.0) together

Graphics HD Graphics, support ultra HD 4K resolution

Package Content 1*Mini PC,1* Power Adapter,1*Power plug, 2*WiFi antennas.

Rich Interfaces

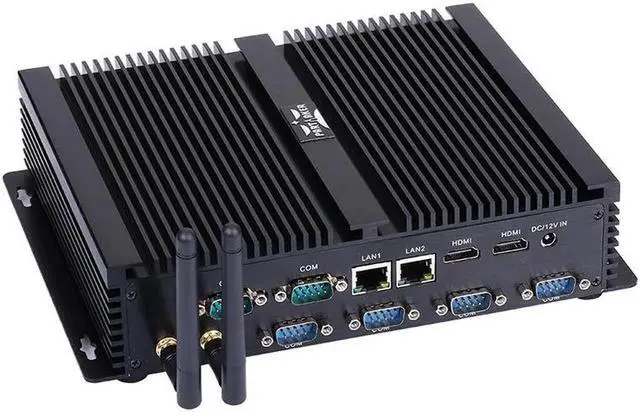

I/O Mic;Speaker; 4*USB 3.0; 4* USB 2.0; 2* Intel 82574L Gigabit Network Connection

2* HDMI 2.0; 1* DC12V In; 6* RS232 COM ports, 2 Wifi Antennas

Operating System Windows 7 Wiindows 8.1, Windows 10, Linux Compatible

Multi Language for you choice

BIOS AMI BIOS, ACPI supported, support electric call-on/Wake-on-LAN functions.

Solid & Strong

Wireless 300MB Wifi with 2 Antennas

Power and Working Environment

Input DC100-240V AC/50-60Hz

Output DC 12V~3A/5A

Advanced Technologies Virtualization Intel® Virtualization Technology (VT-x)

Energy-saving Enhanced Intel SpeedStep® Technology and Idle States

Support 64 bit computing

Material : Brushed Aluminum Alloy

Extremly durable with aluminum alloy computer case

Small Size

All Partaker fanless mini pcs smaller than A4 paper, some of the small size pc only 3.5 inch size, just like the HDD sized using it traditional fat computers. Most of those small size fanless mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.

Durability: all those fanless mini pcs are highly intergrated, fanless design makes it runs silent and no need extra maintenance like normal fat comptuters. And most of them using aluminium alloy computer case, very durable.

Low power: all the Partaker fanless mini pcs using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.

Silent operation: fanless mini pc also name as silent computer, quiet mini pc or silent desktop pc. As there is no fan inside, the pc runs totally silent all day long, make sure you can keep wholehearted in to your work

Partaker fanless mini pcs compatiable with almost all popular operating systems, such as Windows, Linux. You can use this mini computer as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe.

Model Number: Partaker

I4 Memory: 1* DDR3L 1333/1600, LPDDR3 1333/1600 (Max.

8G RAM) Storage: 1* Msata SSD+1* 2.5 Inch

HDD Network Card: 2* Intel 1000M 82574L Lan

Ports Audio Cards: ALC662 sound chip

WiFi: With dual antenna, 802.11.

b/g/n I/0 Port: 2*HDMI Ports+ 4* USB 3.0 + 4* USB 2.0 + 6 COM Port with RS232+ 2* RJ45 Gigabit LAN Port+ 1*

DC12V IN+ Mic+ SPK Power: DC100-240V AC/50-60Hz, DC 12V~19V/6A

Noise: Fanless System

Operating Temperature: 0/70 Centigrade(32F~140F)

Storage Temperature:

(-20/+80) Centigrade Relative Humidity: 10%~90%(non-condensing)

System: OEM Windows 10 Pro Default, Linux as optional

Special Tip: Barebone Configuration actually is NO RAM Included, due to system restrict, However we choose 1G DDR3 to be displayed. Please special attention, NO RAM NO SSD NO HDD for Barebone!!!
