Industrial Mini PC Computer Intel Core i3 8145U Desktop PC Win 10 2*DDR4 M.2 NVMe+Msata+2.5 inch SATA 4K HTPC Nettop HDMI VGA WiFi 8GB Ram 128GB SSD

Processors parameter for reference only

CPU Intel Core i7 1165G7 4 Cores 8 Threads 12MB Cache 2.8Ghz Max 4.7Ghz TDP 28W Intel Iris Xe Graphics.

CPU Intel Core i5 1135G7 4 Cores 8 Threads 8MB Cache 2.4Ghz Max 4.2Ghz TDP 28W Intel Iris Xe Graphics.

CPU Intel Core i7 10510U 4 Cores 8 Threads 8MB Cache 1.8Ghz Max 4.9Ghz TDP 15W Intel UHD Graphics.

CPU Intel Core i3 8145U 2 Cores 4 Threads 4MB Cache 2.1Ghz Max 3.9Ghz TDP 15W Intel UHD Graphics.

CPU Intel Core i5 10310U 4 Cores 8 Threads 6MB Cache 1.7Ghz Max 4.4Ghz TDP 10W Intel UHD Graphics.

CPU Intel Core i5 1235U 10 Cores 12 Threads 12MB Cache 3.30Ghz Max 4.40GHz TDP 15W Intel Iris Xe Graphics eligible

CPU Intel Core i7 1255U 10 Cores 12 Threads 12MB Cache 3.50GHz Max 4.70GHz TDP 15W Intel Iris Xe Graphics eligible

Hightlights

- Onboard newest 10nm 11-12th Gen Intel Core i5/i7 Processor with powerful computing performance;

- Onboard newest Intel Iris Xe Graphics that is comparable to NVIDIA GeForce MX350 discrete graphics card;

- Brushed Full Aluminum Alloy Black color Rugged shell, Exquisite production craft on

outside design fit for industrial fields;

- Fanless system without cooling fan, no any noise, work as long as 7x24 hours;

- 2*DDR4 RAM slots 2xfaster than 1 ram slot, DDR4 2xfaster than DDR3;

- Triple-Storage capacity: support 1*M.2 NVME 2280 SSD+1*MSATA SSD+1*2.5'' SATA SSD/HDD;

- Support VGA + HD dual display output synchronously and asynchronously;

- Can be mounted on the wall by long screws;

- Low consumption CPU TDP only 15W, save much energy eco-friendly.

1. Fanless PC(Small Computer) is specially designed for working in dusty or noise free environment to avoid catastrophic failures.

2. Fanless Mini PC just use its Aluminum alloy case to dissipate the heat to the air to avoid over heating. Paired the Fanless Mini-PC computer with Solid State Hard Disk (SSD) will make the computer with zero noise, space saving, low power Consumption, and trouble free for your project.

3. It supports 24 Hours/7 Days Long-Time Working and "Wake on Lan" Function, with fanless design 0.00dB silent system, about 25W low power motherboard, engergy-saving and environmental protection, ideal for Servers, QoS, Routers, Firewall, Gateways.

4. 2 RS232 COM Ports is ideal for use with custom design embedded device. it provides a complete range of solutions for retail, data acquisition, industrial automation, kiosk.

5. Intel HD Graphics, with 1 HDMI + 1 VGA Port, support ultra HD 4K output, support dual monitor dual display.

Model Number: I3

Color: Black

Material: Aluminum

Type: IPC type with mounting ears

CPU: Intel Core i3-8145U Processor (4M Cache, up to 3.90 GHz)

BIOS: AMI BIOS, ACPI supported

Memory: 2 x SO DIMM DDR4-2400 (MAX. 32G RAM)

Storage: 1 x mSata SSD, 1 x 2.5 inch HDD

Network Card: 1000M Nic

Audio Cards: ALC662 sound chip

WiFi: With dual antennas, 802.11ac 2.4Ghz and 5Ghz

Bluetooth: 4.0/4.2(optional)

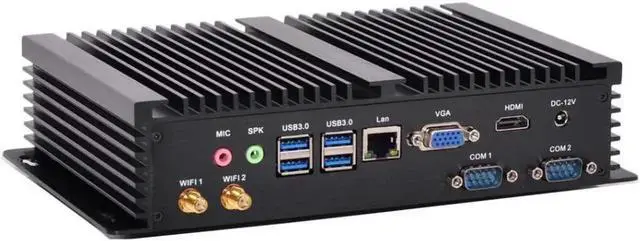

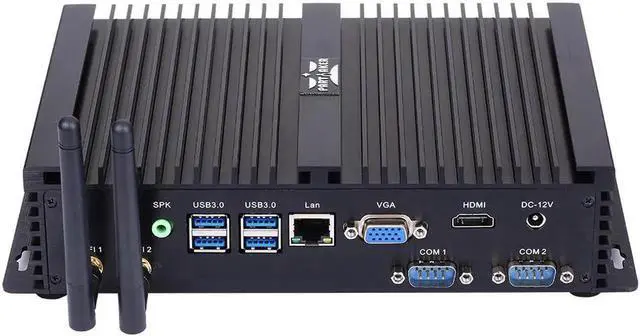

I/0 Port: DC, HDMI, VGA, LAN, USB 2.0 x 3, USB 3.0 x 4, MIC, SPK, 2 x COM RS232

Power: DC100-240V AC/50-60Hz, DC 12V5A

Operating Temperature: 0°C~70°C Centigrade

Storage Temperature: -20°C~80°C Centigrade

Relative Humidity: 10%~90% (non-condensing)

Size: 234 x 150 x 43mm

Weight: 2.5kgs

Consumption: 15W

Cooling system: Fanless

Features: 1). First-class temperature control ensures 24h/7 days without shutting down

2). 12V green and environmentally friendly, only 15W to 25W power for daily use

3). Support restore AC power loss/LAN PXE boot

4). WOL supported on Windows 7 only, not on Windows 10

If need WOL on Windows 10, please find our I27~I28, I25 etc models

5)Support dual screen for simultaneous display or synchronous different display

Packing List: industrial pc, power supply, power cord, WiFi antennas

Warranty: 3 years

System Support: Windows 10, Linux Ubuntu etc

System Default Option: Windows 10 pro in English
