Fanless Mini PC Intel Core i3 8145U Mini Computer 2*DDR4 mSATA M.2 NVMe WIN10 Mini PC Windows10 with HD VGA USB 16GB Ram 128GB SSD

Advantages of Partaker Fanless Mini Computer

1. 8-12th Generation Intel Core i3-8145U/i5-8250U/i5-1235U Processors

2. Dual-channel DDR4 high-frequency memory, up to 64GB

3. 2 * M.2 SSD, support SATA 6Gb/s bus, also support NVME protocol

4. Processor Graphics: Intel UHD Graphics 630/Intel Iris Xe Graphics eligible

5. Support 4K HD display

6. Built-in dual-band WiFi

7. Interface: 4*USB3.0, 4*USB2.0

8. Fanless Mini PC

9. Support 24 hours boot, Wake on LAN, Diskless boot, Power on

10. Good choices for business office, meeting room, home entertainment, educations, Industrial equipment.

About this item

Equipped with Core i5-1235U, i5-8250U, i3-8145U Mini PC, Windows 10 Pro pre-installed, Can upgrade windows 11, can handle multiple tasks in same time, games, office, design, web, Power can be switched freely. Whether it is for work or for fun, it is convenient to face various challenges with serenity.

Mini PC Support 32 * 2 SODIMM, maximum memory 64GB, 2.5 inch SATA3.0 SSD / HDD. 1 * Msata3.0, M.2 solid-state hard drive, can easily install various applications to store personal files (video, music, etc.), read and write speed, operation execution speed.

1 * HDMI and 1 * VGA support dual display output, integrated graphics card: UHD Graphics 620, HDMI support 4K HD dual display output, large classroom or conference projector, small home theater. Enjoy the reality of life and bring shocking visual effects

4xUSB 3.0, 4xUSB 2.0, 1xVGA, 1xHDMI, 1xLAN, 1x headphone / microphone combination. USB3.0 offers faster transmission speed, stable wired connection, and smoother transmission and download.

Kindly be Advised:

1, The CPU Model is intel i5 8th Generation Processor:

8250U: 4 Cores, 8 Threads; Base Frequency: 1.6GHz, Max Turbo Frequency: 3.4GHz, 6MB Smart Cache, Integrated Intel UHD Graphics 620:

Intel UHD Graphics 620: Base Frequency: 300MHz; Max Dynamic Frequency: 1.10GHz; 4096x2304@24Hz.

2, The Operating System is Windows 10 Pro; It is licensed and activated before shipping.

Please check its licensed condition when it arrives: press "Win+R" keys-input "slmgr.vbs -xpr" to run(note the space between vbs and -xpr).

3, It has been tested well before shipping; If any questions, please contact me, you will get a satisfied solution.

Features: intel i5 8th Generation CPU, Fanless, Smart Design, Zero Noise, Full Metal Case.

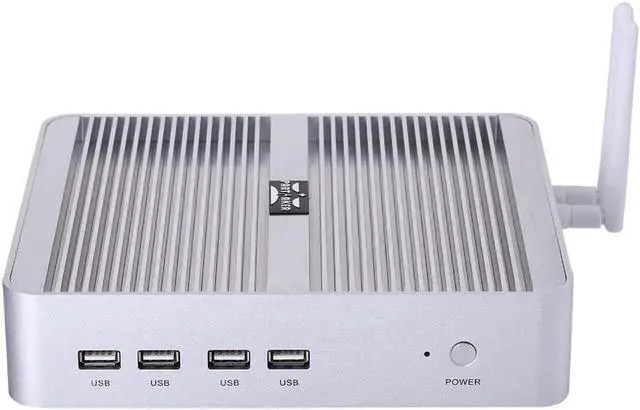

Front-Panel Connectors:

1 x Power Switch Button;

1x Power LEDs;

4 x USB 2.0 ports

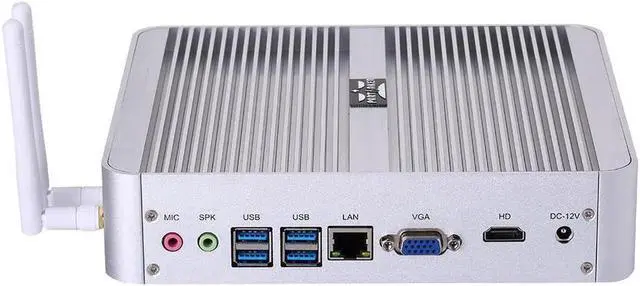

Back-Panel Connectors:

1 x 12V DC input

1 x HD port

1 x VGA port

1 x Gigabit LAN port

4 x USB 3.0 ports

2 x Audio in/out Connectors

Motherboard:

RAM: 2x so-dimm DDR4 Slots

PCIE: 2x Mini PCIE interfaces:

full height one for mSATA solid state hard drive.

Half height one for Mini PCIE wireless card.

1x Mini PCIE for NGFF 2280 M.2 SSD

1x SATA for 2.5 inch drive

Network Card: Onboard RTL 8111DL 10/100/1000 BaseT LAN;

Wireless: 300M 2.4/5GHz 802.11.b/g/n with Dual Antenna

Sound card: ALC892 chip, providing 6-channel sound

What in Box:

1x Mini PC

1x Power Adapter

1 x Power Cable with US plug

1x Desktop Bracket

2 x Wi-Fi Antennas

1x Set SATA power and data cables ( for 2.5'' drive)

1x HD cable

some screws

Compact design

The mini computer size is 6.69*8.07*1.77in, it is very convenient to put on the desk and will not take too much space. Whether you are traveling or on business, you can easily deal with work matters

Multi-function ports

Mini pc is very suitable for daily needs. It can be connected to various devices such as TVs, printers, projectors, etc.

Low power consumption, Fanless design, zero noise

Adopting all aluminum alloy shell, design of heat dissipation holes on both sides, fast heat dissipation to ensure the normal operation of the computer, zero noise brings a comfortable experience

Mini pc is suitable for various fields

Model Number: Partaker

B13 Color: Silver

Material: Aluminum

CPU: Intel Core i3-8145U

Processor Memory: 2* SO-DIMM DDR4-2400/2666, max.

64GB RAM Storage: 1* Msata SSD+1* M. 2 2280 SSD+1* 2.5 Inch

HDD Expansion: 1 * MSATA 3.0, 6Gb/s; 1 * SATA 3.0, 6Gb/s; 1* ngff 2280 M. 2 2280 (sata/nvme) SSD; 1 * WiFi module

Audio Cards: 6-channel ALC892

Network Card: RTL8168/8111/8112 PCI-E 10/100/1000

Gigabit NIC WiFi: With dual antennas, 802.11.

b/g/n 2.4 +5Ghz Bluetooth: Optional (Default without this function, please do leave us message on the order, thank you)

I/0 Port: VGA+HD+ 4*USB 3.0 + 4*USB 2.0 + LAN+ Spk+

Mic Power: DC100-240V AC/50-60Hz, DC 12V/3A

Operating Temperature: 0°C~70°C Centigrade (32°F~140°F)

Storage Temperature: -20°C~80°C Centigrade (-68°F~176°F)

Relative Humidity: 10%~90% (non-condensing)

Mini PC Stand: Yes

Vesa Mount: Optional

Weight: 2.5 kgs

Measurement: 200*175*45mm

Consumption: 15W

Design: Fanless

Function:

1. Support diskless boot

2. Support Restore AC Power Loss

3. Support dual screen (VGA+HD) for simultaneous display or synchronous different display 4.

HD 1.4 4K: 4096x2304@24Hz

Warranty: 3 years

System Support: Windows 10, Linux Ubuntu, Vxworks etc; And hardware supports kodi, virtual system as proxmox/vmware/esxi server etc

System Default Option: Windows 10 pro in

English ATTENTION: Barebone is no RAM, no SSD, no HDD and as well no any system. For other options, Linux or other OS, other system language, Do leave us message on the order, thank you.
