Industrial PC Mini PC Windows/Linux I5 4200U 2 COM 4G RAM 64G SSD I3

Main Advantages

1.Fanless PC(Small Computer) is specially designed for working in dusty or noise free environment to avoid catastrophic failures.

2. Fanless Mini-PC just use its Aluminum alloy case to dissipate the heat to the air to avoid over heating. Paired the Fanless Mini-PC computer with Solid State Hard Disk(SSD) will make the computer with zero noise, space saving, low power Consumption, and trouble free for your project.

3. It supports 24 Hours/7 Days Long-Time Working and "Wake on Lan" Function, with fanless design 0.00dB silent system, about 25W low power motherboard, engergy-saving and environmental protection, ideal for Servers, QoS, Routers, Firewall, Gateways.

Features

1. Support Windows 8/10, Linux, Ubuntu OS, and more;

2. Support two hard disk, one mSATA SSD and one 2.5 inch HDD/SSD, and we free send 2.5 inch SATA cables;

3. Low power consumption only 15W, energy-saving up to 90% compare to traditional desktop computers;

4. Support Wake-on-LAN, Automatically power on when power failure, support virtualization.

5. Extensive connectivity, 1x Gigabit LAN, 2x RS232, 4x USB 3.0 ports , 3x USB2.0,Combo audio;

6. Support WiFi connected to network;

7. Aluminum case & Fanless passive cooling offer you zero noise experience.

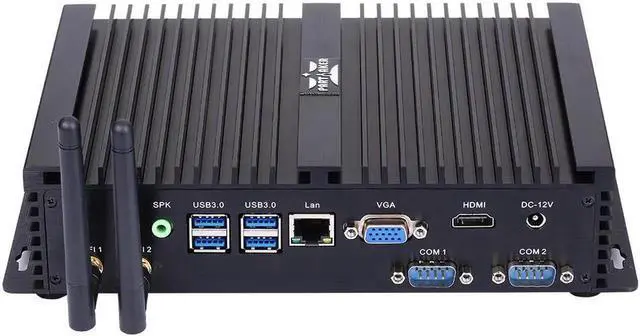

Rich Interfaces

2 RS232 COM Ports is ideal for use with custom design embedded device. it provides a complete range of solutions for retail, data acquisition, industrial automation, kiosk.

Multiple USB Ports(4* USB3.0+3* USB 2.0) solution is ideal for use with custom design embedded device. Our small Mini PC Computer With multiple USB Ports, Engineer can control multiple custom device on one computer.

Intel HD Graphics , with 1 HDMI + 1 VGA Port, support ultra HD 4K output, support dual monitor dual display

What In The Package

1x Mini PC;

1x AC adapter ( we ship correct power plug base on buyer's address );

1x Power cord;

1x WiFi module and antennas

1x SATA Power cable & data cable;

Processors Performance

Core i3 4005U: 22 nmCPU Haswell 1.70 GHz 2 Core 4 thread Intel HD Graphics 4400 200 MHz-950 MHz

Core i3 4200U: 22 nmCPU Haswell 1.70 GHz 2 Core 4 thread Intel HD Graphics 4400 200 MHz-950 MHz

Core i3 5005U: 14 nmCPU Broadwell 2.00 GHz 2 Core 4 thread Intel HD Graphics 5500 300MHz-850GHz

Core i5 5250U: 14 nmCPU Broadwell 1.60 GHz-2.70 GHz 2 Core 4 thread Intel HD Graphics 6000 300MHz-950MHz

Core i5 7200U: 14nm CPU Kaby Lake 2.3GHz 2 Core 4 thread intel HD Graphics 620 300MHz-1GHz

Core i3 6006U: 14nm CPU SkyLake 2.0GHz 2 Core 4 thread intel HD Graphics 520 300MHz-900GHz

Core i3 6157U: 14nm CPU SkyLake 2.4GHz 2 Core 4 thread intel Iris Graphics 550 300MHz-1GHz

Core i3 7167U: 14nm CPU Kaby Lake 2.8GHz 2 Core 4 thread intel Iris Plus Graphics 650 300MHz-1GHz

Core i5 8250U/i7 8550U: 14nm CPU Kaby Lake R 1.6/1.8GHz 4 Core 8 thread intel UHD Graphics 620 300MHz-1.1GHz(DDR4 Ram Only)

Small Size, Low power consumption, zero noise

Quality trust for millions of users

Gagabit Lan, RS232 COM, 7*USB Port, WiFi Module, Dual Display, Stable Operation

Innovation speed, high-speed configuration

Meet industrial needs, smooth and stable operation.

Green and enery saving, TDP 15W, effective energy saving

Solving industrial problems, professional design for engineering enviroment, strong hardware support.

Support wake on lan, Restore after AC power Loss, Power On, HD Dual Display, 4K HD output, Synchronous/Asynchronous

Wide application and industry and people's life.

Model Number: Partaker

I3 Memory: 2* DDR3L 1333/1600 LPDDR 1333 /1600 (MAX.

16G RAM) Storage: 1* Msata SSD+1* 2.5 Inch

HDD Network Card: 1000M Gigabit Lan

Audio Cards: ALC662 sound chip

WiFi: With dual antenna, 802.11.

b/g/n I/0 Port: 1*DC + 1*HDMI+ 1*VGA+ 1*LAN+ USB 2.0 *3+ USB 3.0 *4+ 1*MIC Input+ 1*SPK Output+ 2*COM

RS232 Power: DC100-240V AC/50-60Hz, DC 12V

Noise: Fanless System

Operating Temperature: 0/70 Centigrade(32F~140F)

Storage Temperature:

(-20/+80) Centigrade Relative Humidity: 10%~90%(non-condensing)

Temperature: 0-70

Centigrade Humidity: 10%-90%

System: OEM Windows 10 Pro Default, Linux as optional

Special Tip: Barebone Configuration actually is NO RAM Included, due to system restrict, However we choose 1G DDR3 to be displayed. Please special attention, NO RAM NO SSD NO HDD for Barebone!!!
