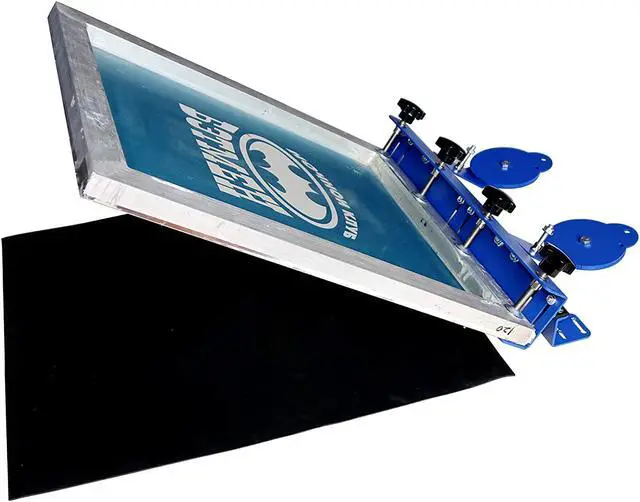

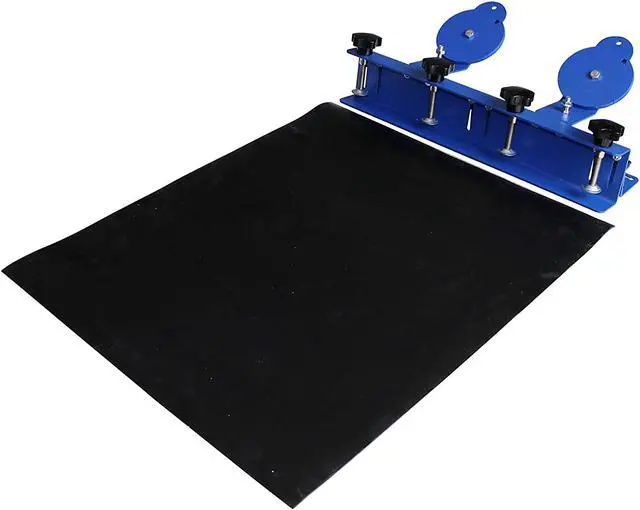

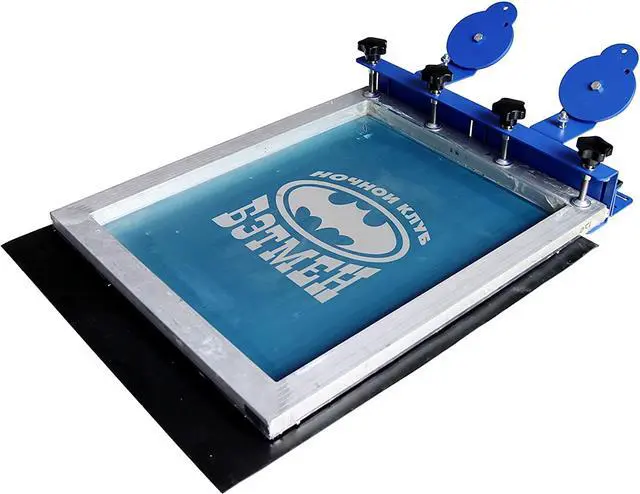

Intsupermai Screen Printing Hinge Clamp for Silk Screen Printing Machine Hobby Screen Printer 20x24 Inches
- Suitable for all kinds of plane product printing, like: electronic circuit board, paper box, glass, board, metal plate, and all kinds of board, etc. Do not recommend to use this machine for cloth, ribbons, sashes, paper, thin plastic sheets and other light materials. (These materials are too thin, after printing, the screen frame may stuck with the plate then mess up the printing result ).Paper, thin plastic sheets and other lighter materials are recommended to use vacuum screen pallet.
- This printer should be fixed on the table or plank, equiped with 3 handles / 2 support holders/ 4 gravity balance plates. Balance plate can be installed individually or together according to weight request, it can be moved forward and back within 6 inche
- With the bolt in the balance rack, could adjust the lifting angle and height of the screen frame.It is suitable for printing of various substrates within the thickness of 1.57 inches.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter:
Clamp size: 18.9" x 2.4" (48x6cm)
Suggest max screen frame size: 21.6" x25.6 x 2.3" (55x65x6 cm)
Suggest printing area: 19.6" x 23.6" (50x60cm)

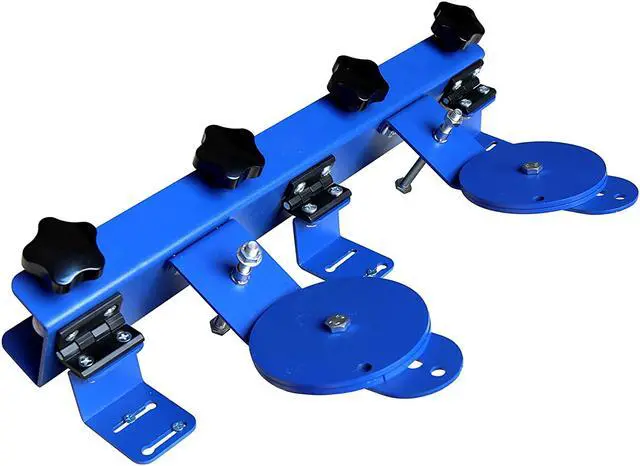

The screen chuck shall be directly fixed on the wooden working table by self-tapping screws or fixed on the metal or wooden working table by self-tapping M8 bolts. The main body of the machine adopts advanced electrostatic spraying metal surface treatment, acid and alkali resistance, corrosion resistance, cleaning resistance, no rust, long-term use; Some parts are made of stainless steel.
The lifting height of the screen frame can be adjusted up and down 40 mm by loosening and moving elastic and hinge screws.
The lifting angle of the screen frame is adjusted 0-45 degrees by the upper and lower screws of the gravity support plate
The rubber base plate is also arranged according to the need, suitable for printing.
The gravity plate can be adjusted back and forth according to the weight of the screen plate to reach a proper balance, and the quantity of gravity plates can be increased or decreased to reach a proper balance.
Clamp size: 18.9" x 2.4" (48x6cm)
Suggest max screen frame size: 21.6" x25.6 x 2.3" (55x65x6 cm)
Suggest printing area: 19.6" x 23.6" (50x60cm)
The screen chuck shall be directly fixed on the wooden working table by self-tapping screws or fixed on the metal or wooden working table by self-tapping M8 bolts. The main body of the machine adopts advanced electrostatic spraying metal surface treatment, acid and alkali resistance, corrosion resistance, cleaning resistance, no rust, long-term use; Some parts are made of stainless steel.
The lifting height of the screen frame can be adjusted up and down 40 mm by loosening and moving elastic and hinge screws.
The lifting angle of the screen frame is adjusted 0-45 degrees by the upper and lower screws of the gravity support plate
The rubber base plate is also arranged according to the need, suitable for printing.
The gravity plate can be adjusted back and forth according to the weight of the screen plate to reach a proper balance, and the quantity of gravity plates can be increased or decreased to reach a proper balance.
