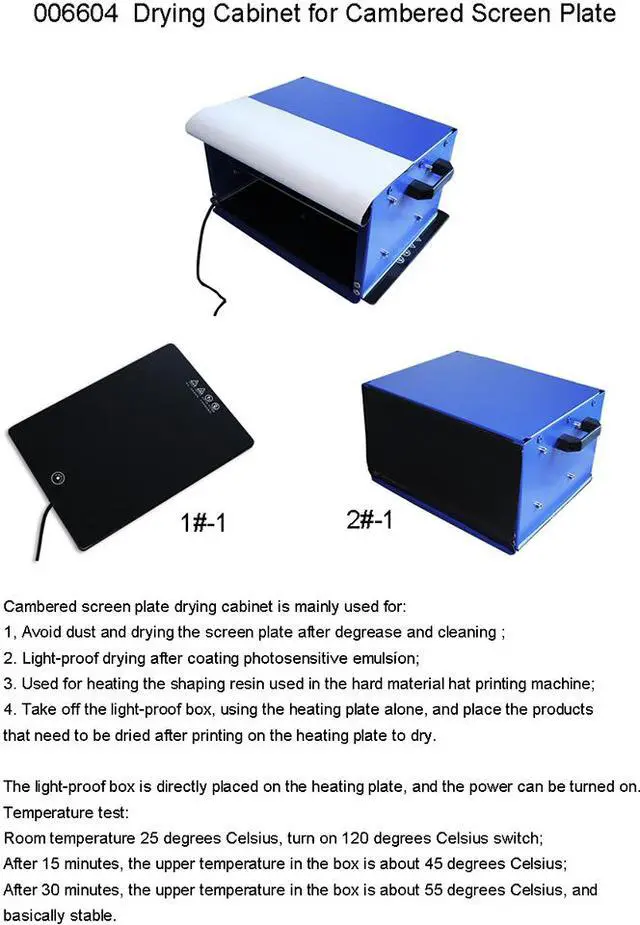

Intsupermai 4 Layers Screen Printing Drying Cabinet Cambered Screen Plate Drying 13.7x10x7.5

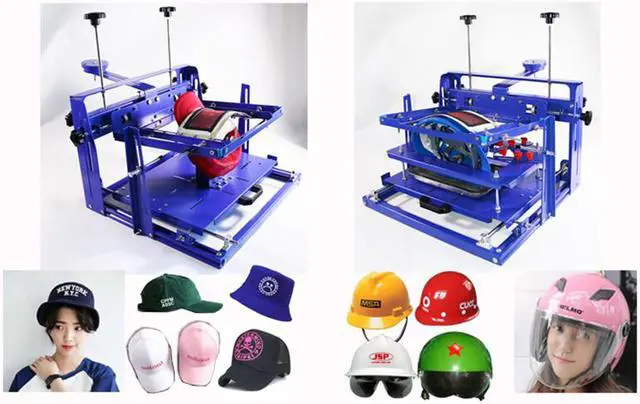

- This machine is specially matched for all kinds of cap and mask printing machines produced by our company.

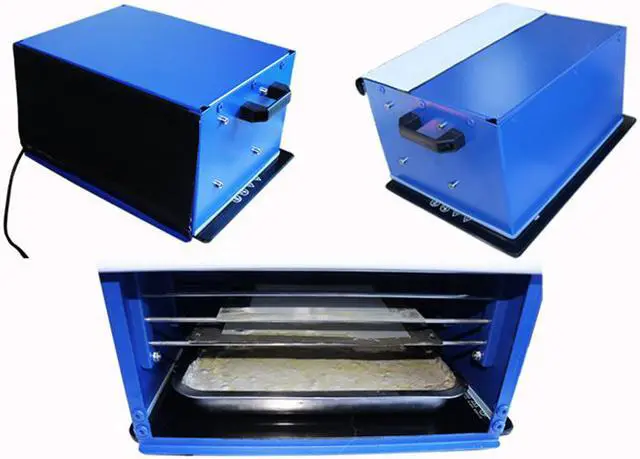

- This machine is composed of two parts, one is the plate heating table; Two is light-proof box with four layers.

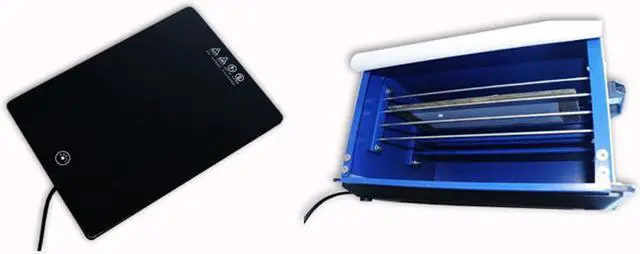

- The surface size of the plate heating table is 40*28 cm, and the power is 120W; The surface of the heating table is high quality tempered high temperature resistant glass, not afraid of water, glue, acid and alkali resistance, resistant to cleaning.
- The light-proof box is directly placed on the heating plate, and the power can be turned on.
- Special note: it may take 40-50 minutes to melt the shaping resin.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The inner dimension of the light-proof box is 35x26x19 cm; There are four layers of screen plate partition, suitable for drying the inner size of 100*190 mm (outer size 130*200 mm); 100*240 mm (outer size 130*250 mm) cambered mesh plate. The effect of avoiding light and dust is good.
Heat and melt the shaping resin of the hard material hat screen printing machine.

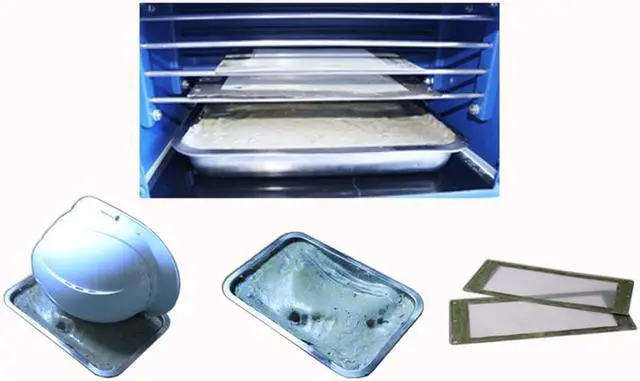

Drying upper screen plate; The heating and melting of the lower shaping resin can be carried out simultaneously without affecting each other.
Box parts are advanced electrostatic spraying surface treatment, corrosion resistance, acid and alkali resistance, cleaning resistance, long - term use without rust.
Temperature test:
Room temperature 25 degrees Celsius, turn on 120 degrees Celsius switch;
After 15 minutes, the upper temperature in the box is about 45 degrees Celsius;
After 30 minutes, the upper temperature in the box is about 55 degrees Celsius, and basically stable.
Do not use microwave oven
Item included(006604):
1*Drying Cabinet for Cambered Screen Plate
Heat and melt the shaping resin of the hard material hat screen printing machine.
Drying upper screen plate; The heating and melting of the lower shaping resin can be carried out simultaneously without affecting each other.
Box parts are advanced electrostatic spraying surface treatment, corrosion resistance, acid and alkali resistance, cleaning resistance, long - term use without rust.
Temperature test:
Room temperature 25 degrees Celsius, turn on 120 degrees Celsius switch;
After 15 minutes, the upper temperature in the box is about 45 degrees Celsius;
After 30 minutes, the upper temperature in the box is about 55 degrees Celsius, and basically stable.
Do not use microwave oven
Item included(006604):
1*Drying Cabinet for Cambered Screen Plate
