SXD12025 5IN1 5-Fan Adjustable DC Cooling Kit, 120 x 120 x 25mm Each, 3-12V, 1100-3200 RPM, 48-94.5 CFM per Fan, Dual Ball Bearing, 100-240V AC Adapter, for Mining Rigs & Cabinets
- COMPLETE FIVE-FAN KIT - Includes five SXD12025 DC fans, one adjustable 3-12V controller/power adapter, and one 5-way splitter. Pack quantity 1 means one complete kit containing five fans.
- AC INPUT, DC OUTPUT - The supplied adapter accepts 100-240V AC, 50/60Hz and supplies adjustable DC 3-12V up to 2A through a 5.5 x 2.1mm barrel interface. The fans are DC devices and must not be connected directly to 110V or 220V AC. The 2A rating is the adapter's total output limit, not one fan's current.
- PER-FAN PERFORMANCE REFERENCE - At 3V, 1100 RPM / 48 CFM / 18.8 dBA / under 0.2W; at 5V, 1600 RPM / 58.8 CFM / 23.5 dBA / 0.65W; at 10V, 2600 RPM / 79 CFM / 31.2 dBA / 2.8W; at 12V, 3200 RPM / 94.5 CFM / 38.5 dBA / 5.02W. Values apply to one fan, not the combined output of five fans. Simultaneous results depend on the voltage setting and total load.
- PER-FAN DIMENSIONS - Each fan measures 120 x 120 x 25mm, with 105mm mounting-hole spacing, 4.3mm mounting-hole diameter, and a 230mm lead. Verify enclosure dimensions, mounting pattern, connector fit, and power requirements before installation.

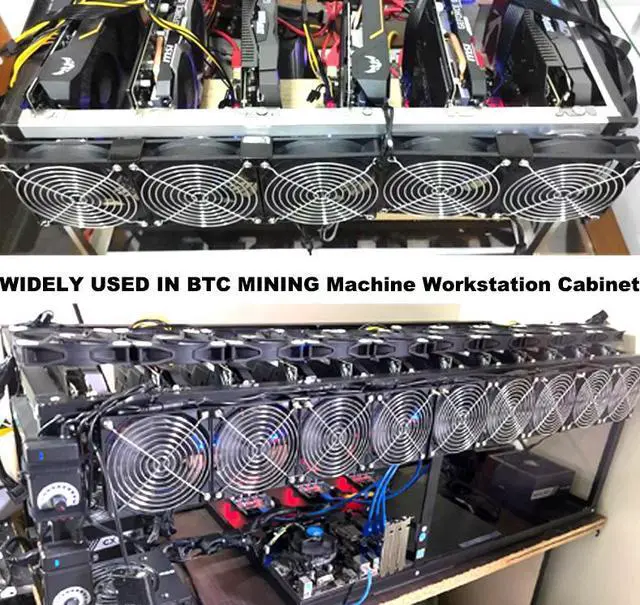

- EQUIPMENT COOLING APPLICATIONS - Seven-blade fans with dual ball bearings provide adjustable airflow for mining rigs, workstation cabinets, and equipment enclosures. Actual five-fan performance depends on voltage setting, airflow restriction, and total electrical load; no combined CFM, RPM, noise, or wattage rating is claimed.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
SXD12025 5IN1 Adjustable Five-Fan DC Cooling Kit
Designed for equipment cooling and ventilation projects, the SXD12025 5IN1 combines five 120mm DC fans with one adjustable power controller and one 5-way splitter. The kit provides flexible airflow for mining rigs, workstation cabinets, equipment enclosures, ventilation panels, and other compatible installations.
IMPORTANT POWER INFORMATION

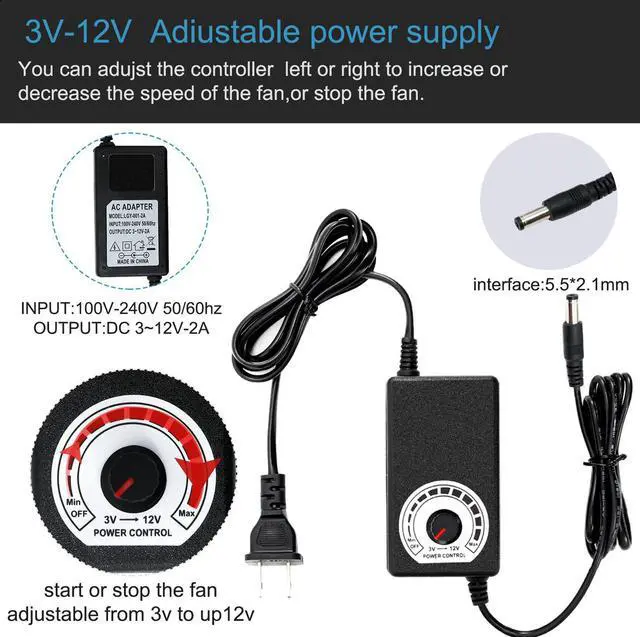

The included adapter accepts 100-240V AC at 50/60Hz and converts it to adjustable DC 3-12V, up to 2A, through a 5.5 x 2.1mm barrel interface. The fans themselves are low-voltage DC devices. Do not connect any fan directly to 110V or 220V AC. The 2A specification is the total output limit of the included adapter, not the current rating of one fan.

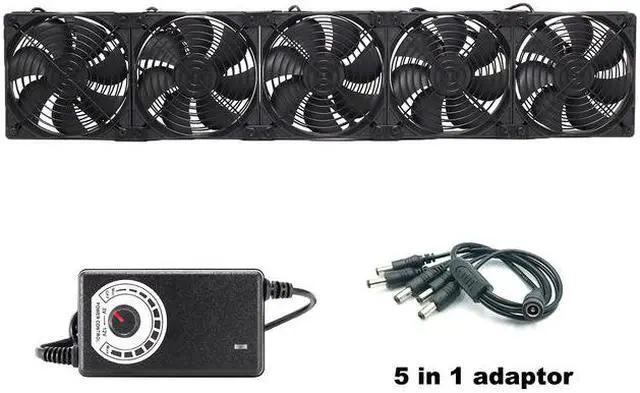

VERIFIED KIT CONTENTS
- Five SXD12025 DC cooling fans
- One adjustable 3-12V controller/power adapter
- One 5-way splitter
- Pack quantity: 1 complete five-fan kit

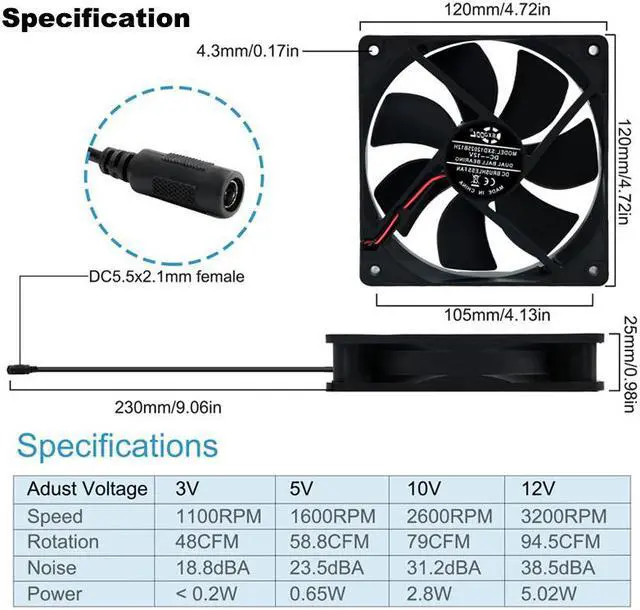

VERIFIED SPECIFICATIONS FOR EACH FAN
- Frame size: 120 x 120 x 25mm
- Mounting-hole spacing: 105mm
- Mounting-hole diameter: 4.3mm
- Lead length: approximately 230mm
- Interface: DC 5.5 x 2.1mm female connector

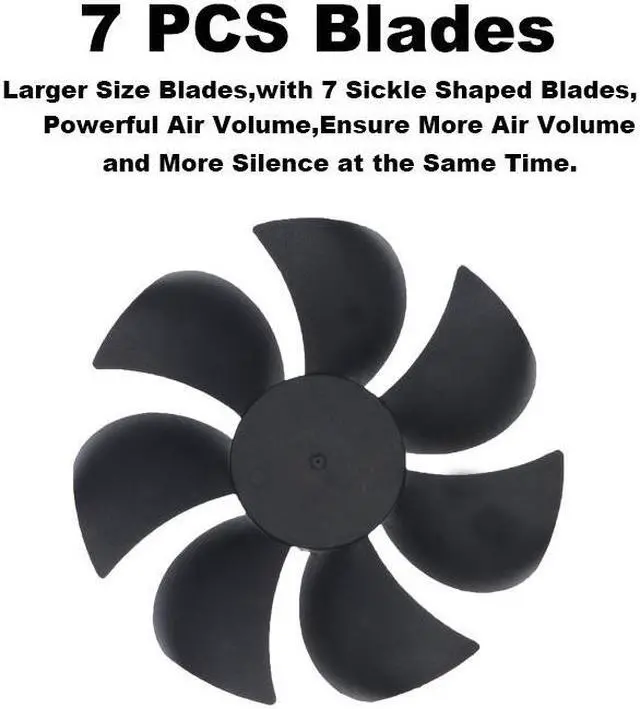

- Blade count: 7

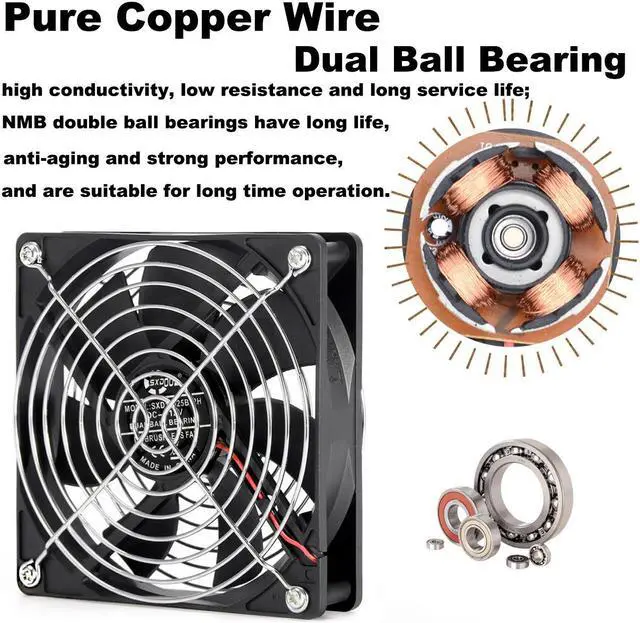

- Bearing type: dual ball bearing
PER-FAN VOLTAGE AND PERFORMANCE REFERENCE
At 3V: 1100 RPM, 48 CFM, 18.8 dBA, under 0.2W
At 5V: 1600 RPM, 58.8 CFM, 23.5 dBA, 0.65W
At 10V: 2600 RPM, 79 CFM, 31.2 dBA, 2.8W
At 12V: 3200 RPM, 94.5 CFM, 38.5 dBA, 5.02W
All RPM, airflow, noise, and power figures above apply to one fan. They are not combined five-fan totals and should not be multiplied to create a kit rating. Simultaneous operation depends on the selected voltage, airflow restriction, wiring conditions, and the total load supported by the adapter. No claim is made that all five fans will simultaneously reach the maximum per-fan reference values.
INSTALLATION CHECKLIST
Before purchase and installation, confirm the available 120 x 120 x 25mm space, 105mm mounting pattern, 4.3mm hole size, 5.5 x 2.1mm connector fit, cable routing, and electrical requirements. Keep cables and nearby objects clear of the rotating blades. Select a voltage setting appropriate for the required balance of airflow and noise.
FREQUENTLY ASKED QUESTIONS
Is this a 110V or 220V fan?
No. The included adapter accepts 100-240V AC, but its output to the fans is adjustable DC 3-12V.
Are the listed RPM and CFM values totals for all five fans?
No. Every performance value is a reference for one fan, not the combined output of the kit.
What does Pack Quantity 1 include?
One complete kit containing five fans, one adjustable controller/power adapter, and one 5-way splitter.
