SXD12025 2IN1 2-Fan Adjustable DC Cooling Kit, 120 x 120 x 25mm, 3-12V, 1100-3200 RPM, 48-94.5 CFM per Fan, Dual Ball Bearing, 100-240V AC Adapter, for Mining Rigs & Cabinets

SXD12025 2IN1 Adjustable Two-Fan DC Cooling Kit

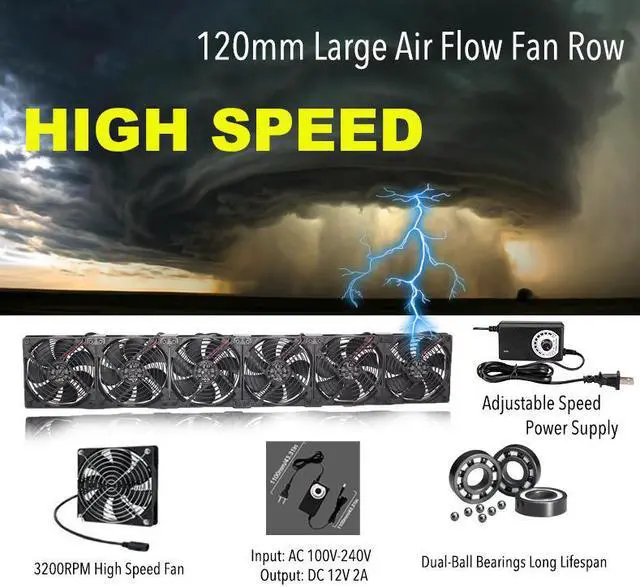

The SXD12025 2IN1 is a speed-adjustable cooling kit intended for targeted airflow in compatible BTC mining rigs, workstation cabinets, and equipment enclosures. One pack contains two 120mm DC fans, one adjustable AC-to-DC adapter/controller, and one 2-way splitter cable as shown in the product images.

IMPORTANT POWER DISTINCTION

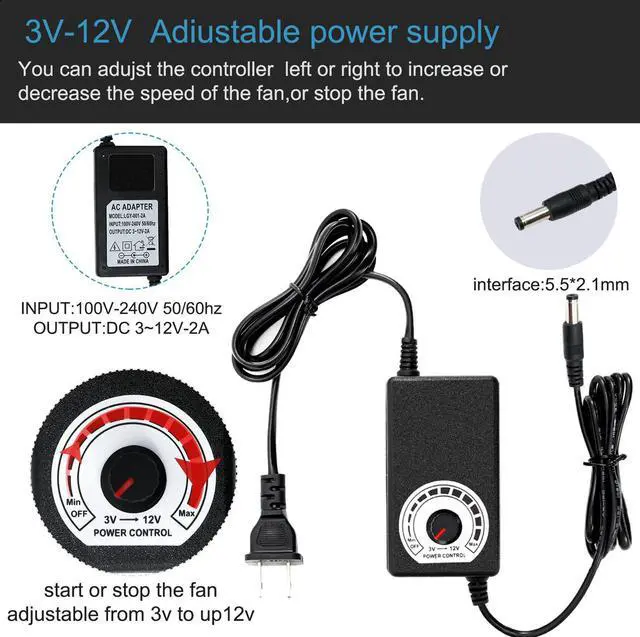

The included adapter accepts 100-240V AC at 50/60Hz. Its output is adjustable DC 3-12V, up to 2A, through a 5.5 x 2.1mm interface.

The included fans are DC fans. They are not direct-input 110V or 220V AC fans. Never connect either fan directly to household or mains AC power. The stated 2A value is the maximum output rating of the adapter, not the operating-current specification of an individual fan.

REFERENCE PERFORMANCE FOR ONE FAN

Voltage | Speed | Airflow | Noise | Power

3V | 1100 RPM | 48 CFM | 18.8 dBA | Under 0.2W

5V | 1600 RPM | 58.8 CFM | 23.5 dBA | 0.65W

10V | 2600 RPM | 79 CFM | 31.2 dBA | 2.8W

12V | 3200 RPM | 94.5 CFM | 38.5 dBA | 5.02W

These are image-listed reference values for one fan at the stated voltage settings. They are not combined specifications for both fans. Do not add or double the airflow, noise, or power figures to represent the complete kit. Actual operating results can vary with controller setting, mounting, airflow restriction, and operating environment.

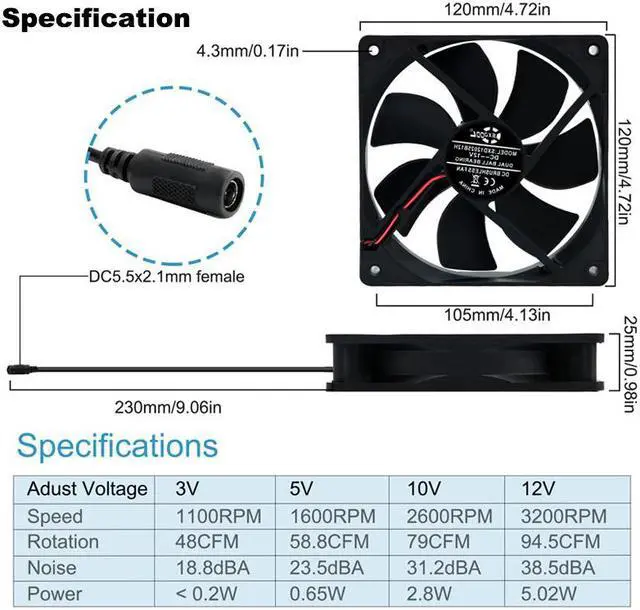

PHYSICAL SPECIFICATIONS FOR EACH FAN

Fan size: 120 x 120 x 25mm

Mounting-hole spacing: 105mm

Mounting-hole diameter: 4.3mm

Fan cable length: 230mm

Fan connector: DC 5.5 x 2.1mm female

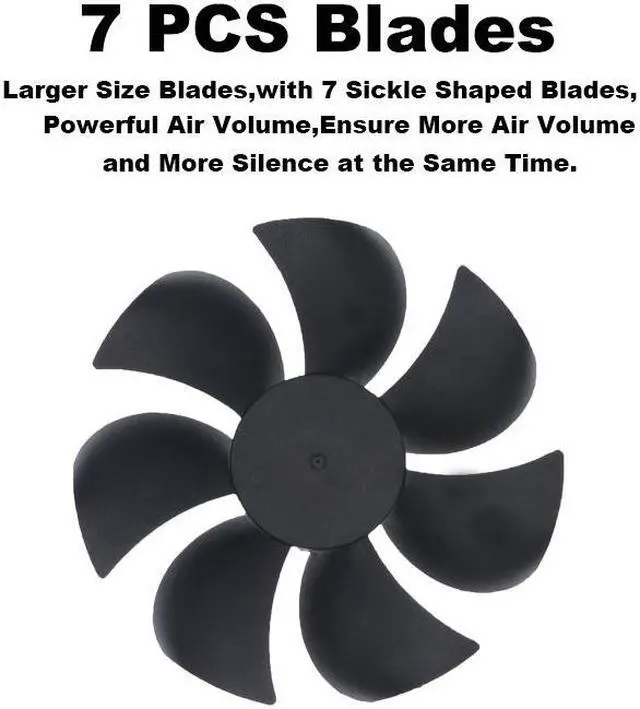

Blade design: Seven sickle-shaped blades

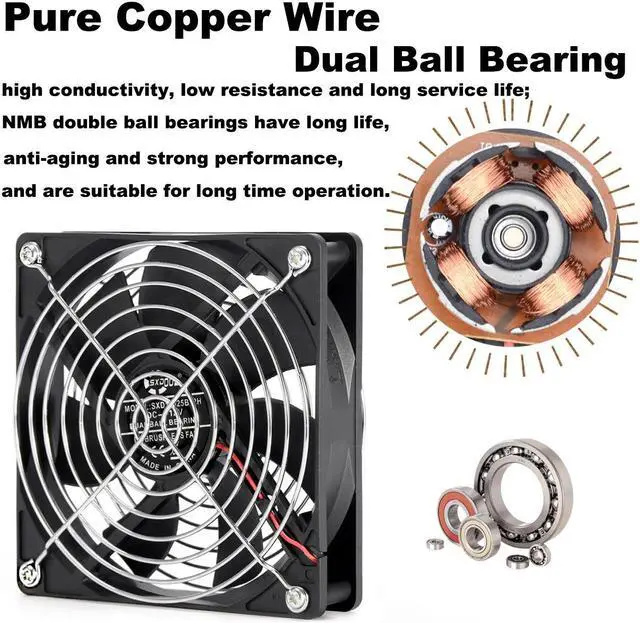

Bearing type: Dual ball bearing

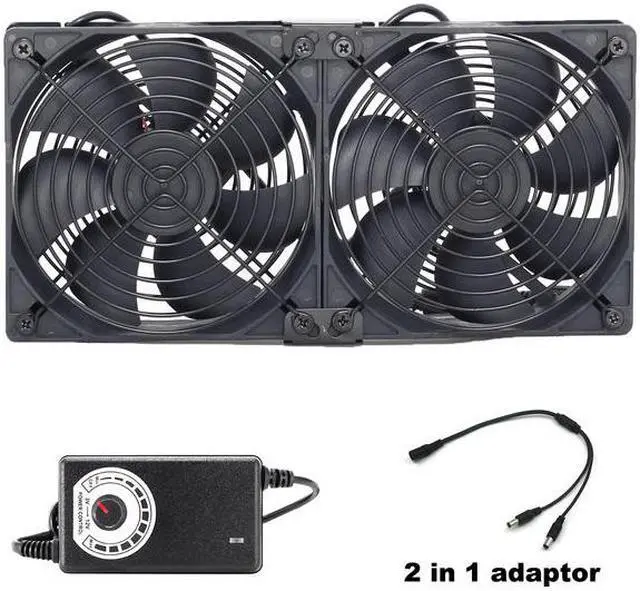

PACKAGE CONTENTS

2 x 120 x 120 x 25mm DC cooling fans

1 x Adjustable 100-240V AC input / DC 3-12V output adapter-controller

1 x 2-way splitter cable

Pack quantity 1 refers to one complete SXD12025 2IN1 kit containing the components listed above.

APPLICATION AND COMPATIBILITY

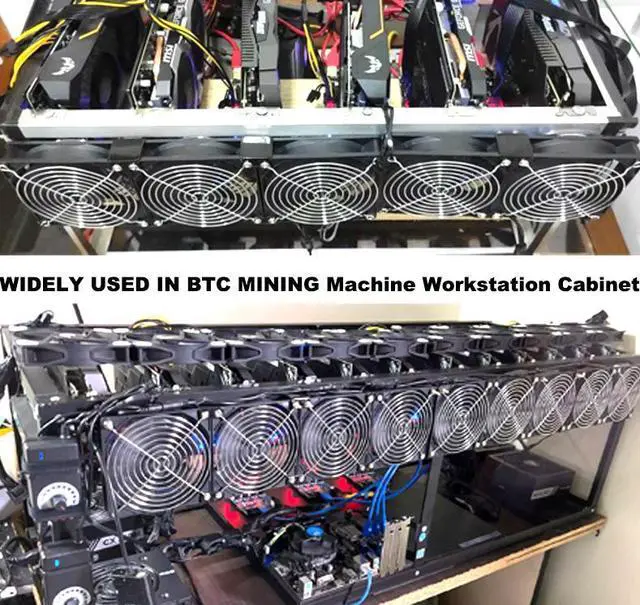

Product images reference cooling applications such as BTC mining equipment and workstation or equipment cabinets. Before ordering, compare the available installation space, 105mm mounting-hole spacing, 4.3mm hole diameter, 5.5 x 2.1mm connection, required airflow direction, and power arrangement with the intended equipment.

Compatibility is determined by physical and electrical fit. Universal compatibility is not claimed.

FREQUENTLY ASKED QUESTIONS

Q: Are these 110V or 220V AC fans?

A: No. The fans operate from the adapter's adjustable DC 3-12V output. Only the adapter accepts 100-240V AC input.

Q: Does the package contain one fan or two fans?

A: It contains two 120 x 120 x 25mm fans as part of one SXD12025 2IN1 kit.

Q: Is 2A the current rating of each fan?

A: No. The 2A figure is the maximum output rating shown for the included adapter.

Q: Are the listed airflow and noise figures combined for both fans?

A: No. The RPM, CFM, dBA, and wattage values are reference data for one fan at each listed voltage.

Q: Will this kit fit every mining rig or cabinet?

A: No universal fit is claimed. Verify the dimensions, mounting pattern, connector, polarity, airflow direction, and power requirements before purchase.
