UNIVERSAL GPU COOLER (CHECK SIZE CAREFULLY)
- It is universal GPU Cooler,can fit for most of the market graphic cards.

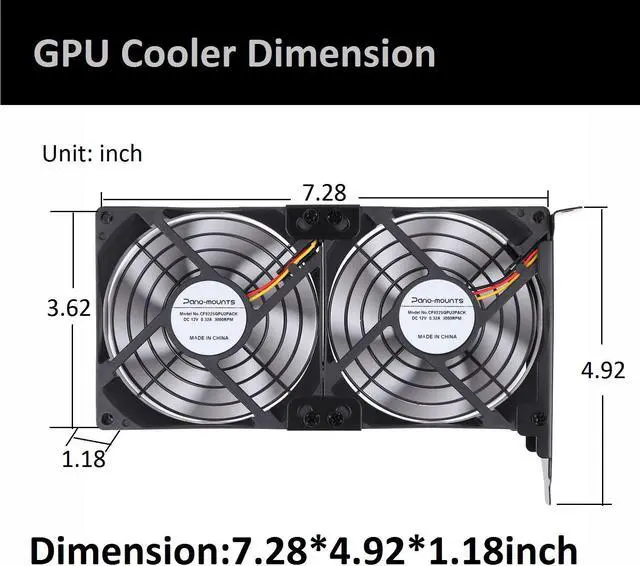

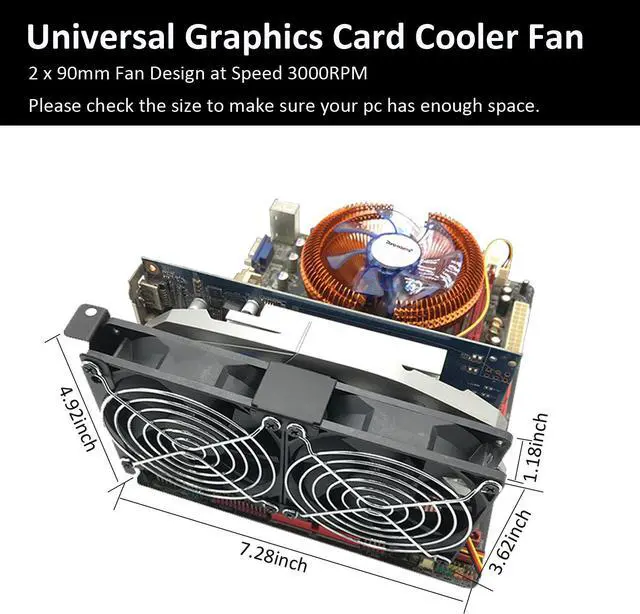

- Size :7.28 * 4.92*1.18inch.
- Please check the size and make sure it can fit your pc perfectly.
99% GRAPHIC CARD COOLER COMPATIBLE
- The temp of PC running at full load after installed our fans is around 35 degrees-56 degrees
- The temp of PC normal operation after installed our fans is around 24 degrees-27 degrees
- The temp of PC normal operation but with other brand cooling fans is around 44 degrees-90 degrees
HUMANIZATION MUST NEED ACCESSORIES

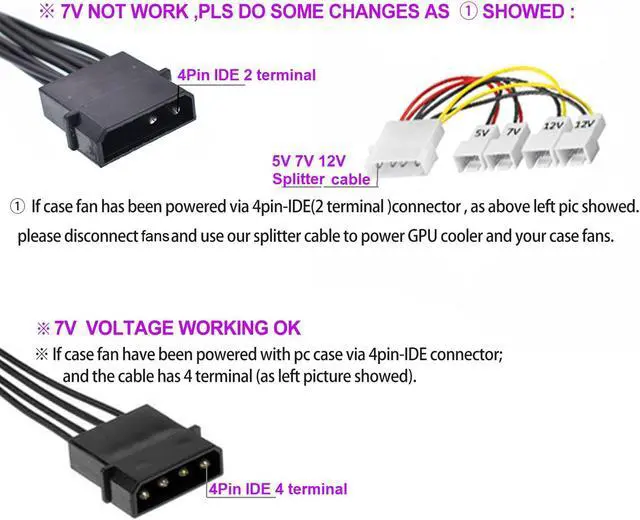

4 IN 1 Voltage Cable
You can get different airflow and noise level by selecting voltage connector.
Easy 2 Pin Connector
2 pin connector allows these graphics card fans can be powered in series.
Extra Tools Accessories
You can install or mount the cooler by these tools easily.

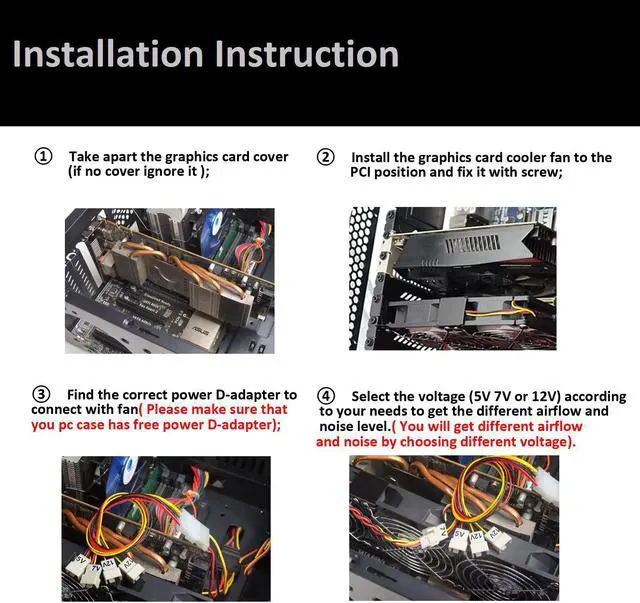

INSTALLATION INSTRUCTION
Take the GPU cover away but keep the heat sink.
Mount the cooler to the PCI position as picture showed.
Install the fan close to the GPU and let fan cool GPU heat sink directly.
Choose your ideal airflow by selecting the voltage and connect fan to the PC power connector.
| Products | |||||
|---|---|---|---|---|---|
| Dimension | 70*70*15mm | 90x90x25mm | 120*120*25mm | 120*120*38mm | 70*70*15mm |
| Dimension | 7.09*3.54*0.59inch | 3.62*3.62*0.98inch | 4.72*4.72*0.98inch | 4.72*4.72*1.5inch | 7.09*3.54*0.59inch |
| Current | 0.1A | 0.2A | 1.4A | 0.8A | 0.1A |
| Connector | 4Pin PWM | 2 PIN XH2.54 | 4PIN PWM +3PIN ARGB | 3PIN | 4Pin PWM |
| Airflow | variable | 48.2CFM | 46.9CFM | 125.2CFM | variable |
| Speed | 1500-2800RPM ±10% | 3000RPM ±10% | 800-1800RPM ±10% | 3500RM ±10% | 1500-2800RPM ±10% |
| Bearing Type | Dual Ball | Hydraulic | Hydraulic | Dual Ball | Dual Ball |
| Noise | 16-20dBA | 37.5dB | 10-31dB | 52dB | 16-20dBA |
| Voltage | 12V | 12V | 12V | 12V | 12V |
| Packing | 1 PCS | 2 PCS | 3 PCS | 1 PCS | 1 PCS |
