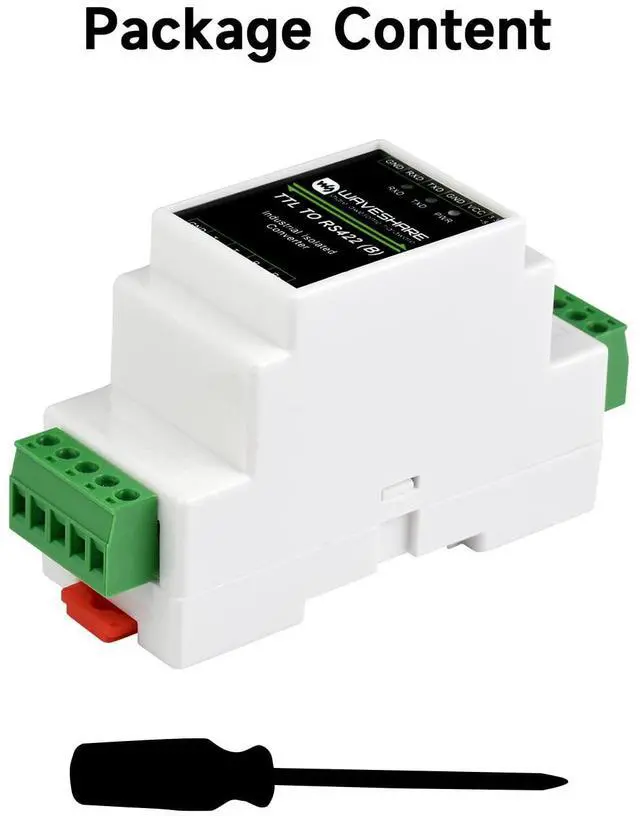

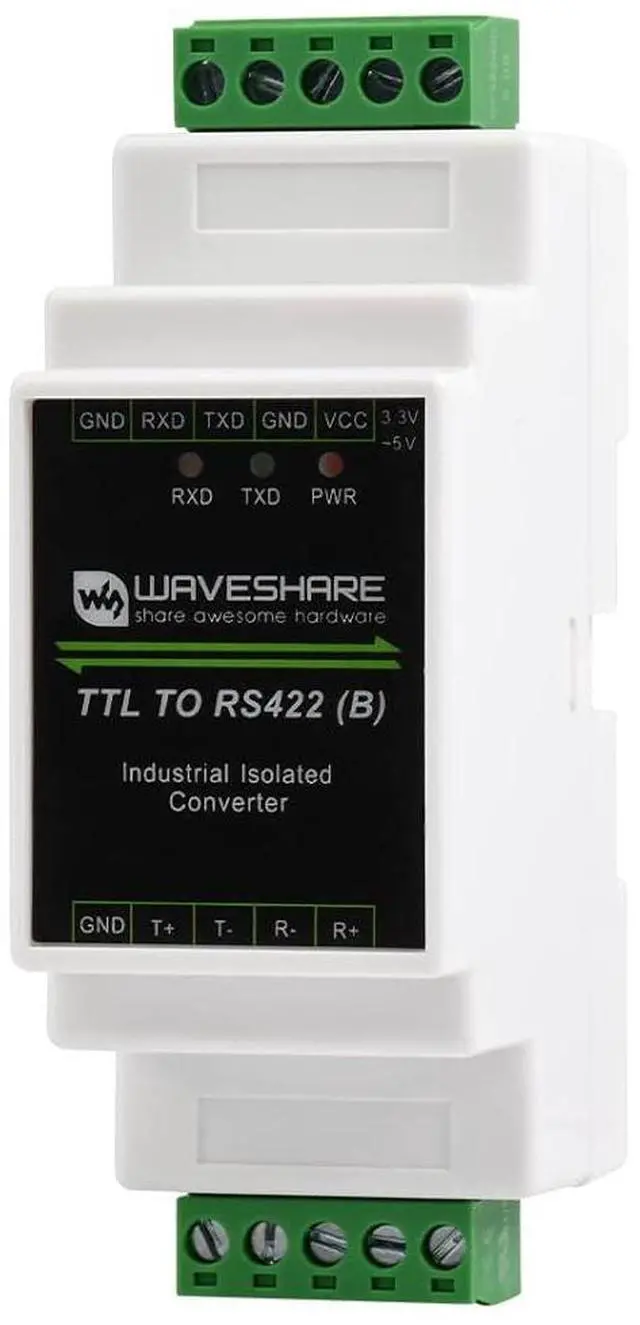

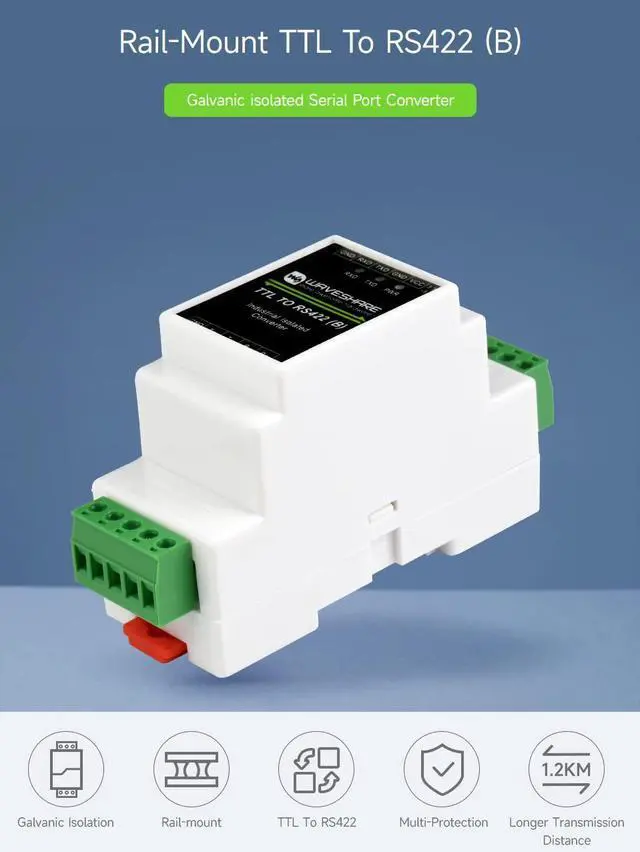

Waveshare Rail-Mount TTL To RS422 Isolated Converter, Anti-Surge, Multiple Isolation Protection
Limited time offer, ends 06/18 By Zhiyi Technology

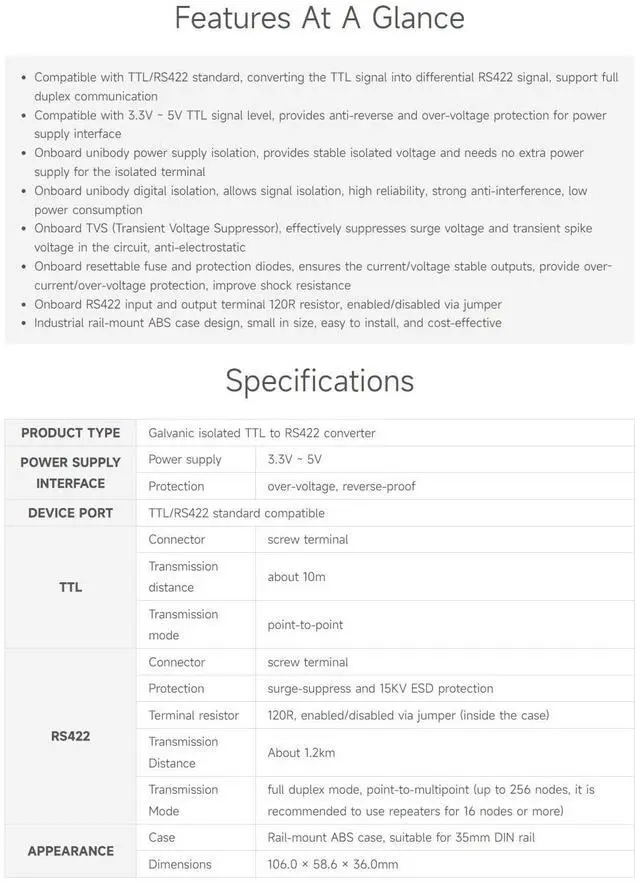

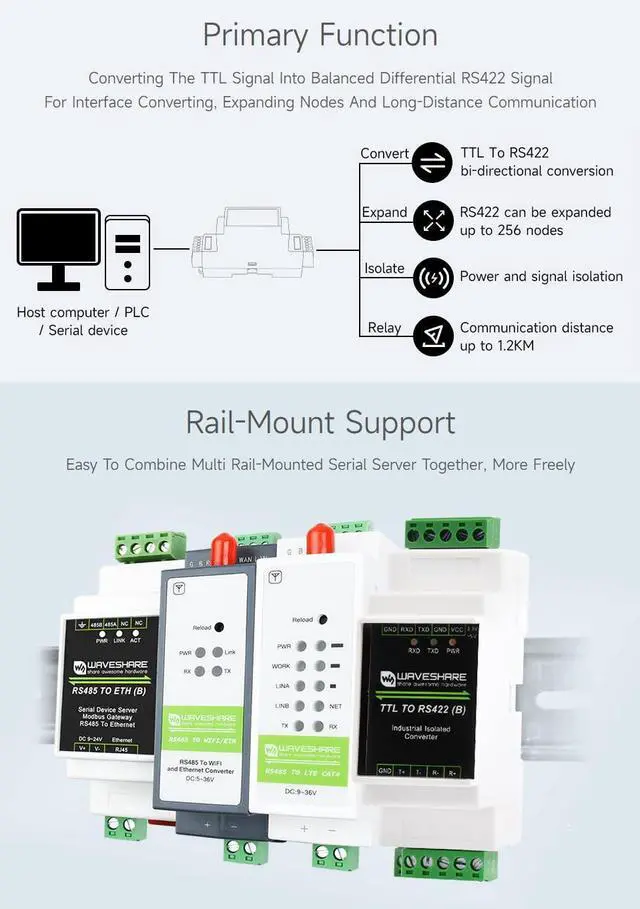

- Compatible with TTL/RS422 standard, converting the TTL signal into differential RS422 signal, support full duplex communication. Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface
- Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, and low power consumption

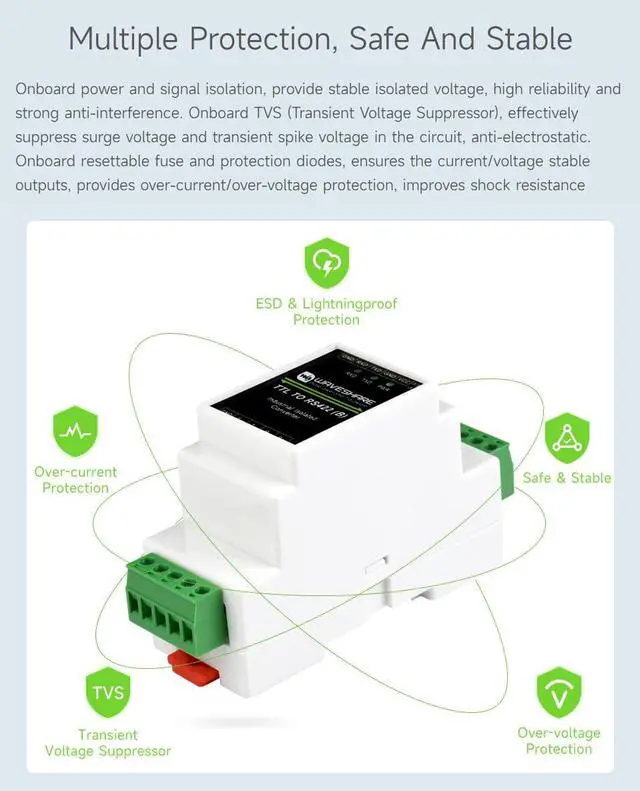

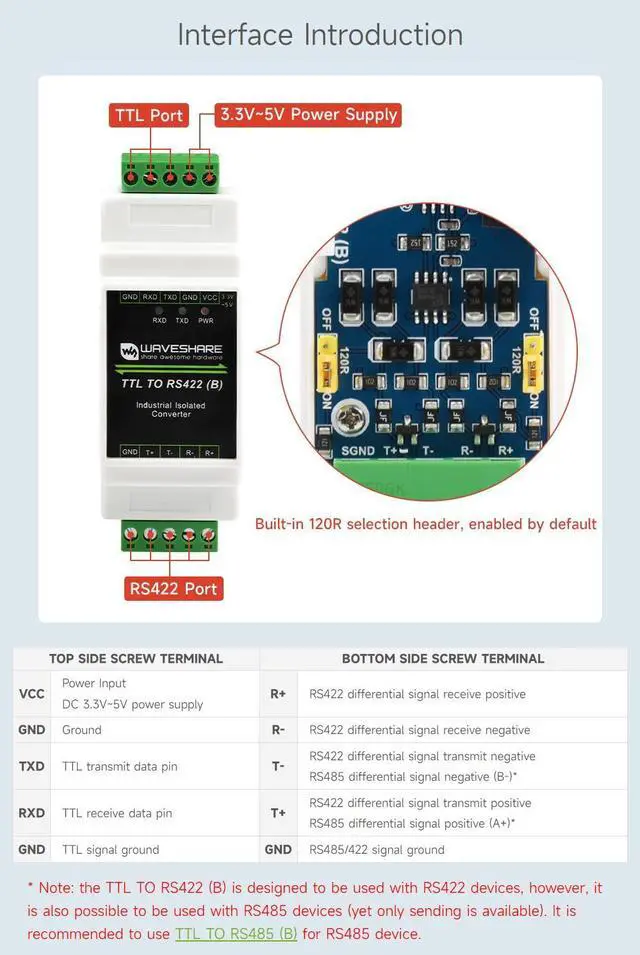

- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, anti-electrostatic. Onboard RS422 input and output terminal 120R resistor, enabled/disabled via jumper
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance
- Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective. Provide online user manual, please refer to while using
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Compatible with TTL/RS422 standard, converting the TTL signal into differential RS422 signal, support full duplex communication. Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface
Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, and low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, anti-electrostatic. Onboard RS422 input and output terminal 120R resistor, enabled/disabled via jumper
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance
Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective. Provide online user manual, please refer to while using
Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, and low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, anti-electrostatic. Onboard RS422 input and output terminal 120R resistor, enabled/disabled via jumper
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance
Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective. Provide online user manual, please refer to while using
