$73.58
Ships from China.
Meet Your Seller

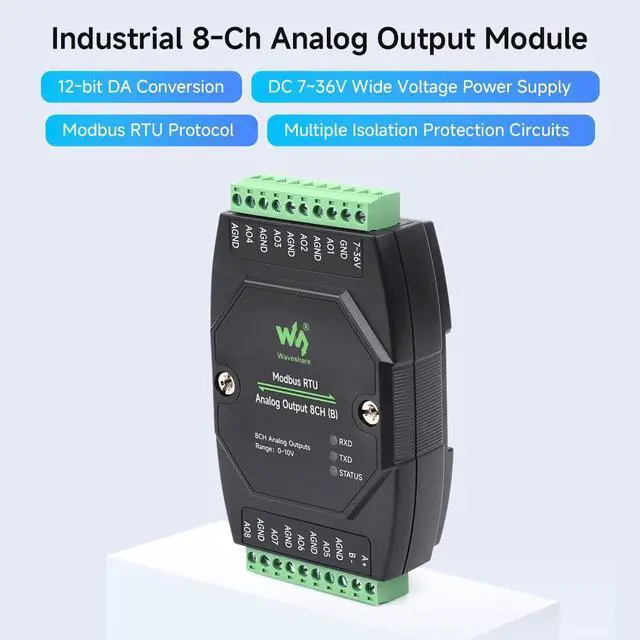

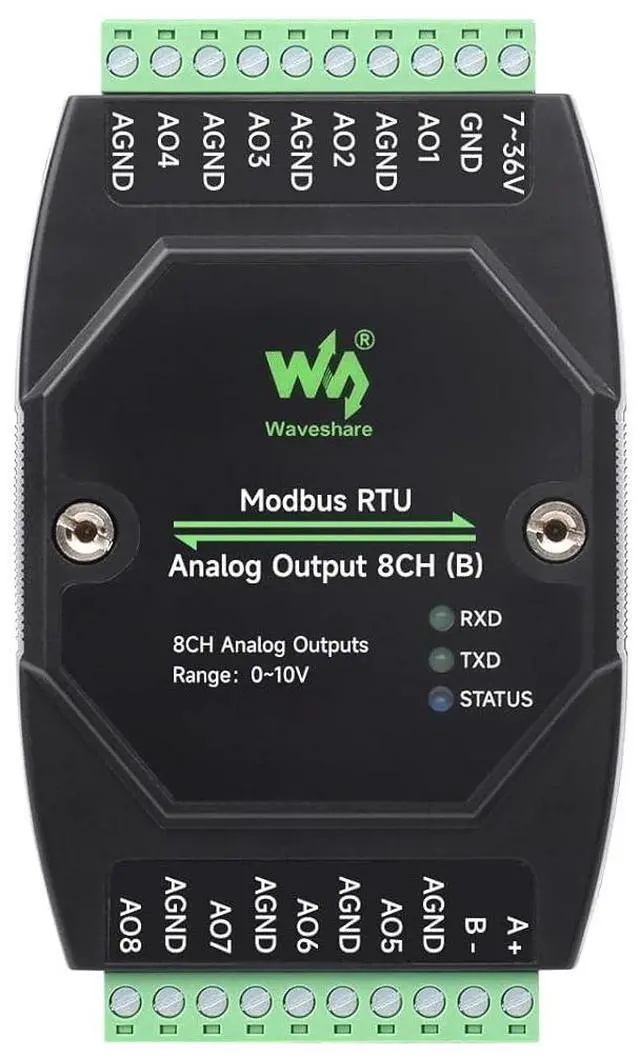

Waveshare Industrial 8-Ch Analog Output Module, 12-Bit DA Conversion, Supports 8-Ch Simultaneous Voltage Output, DC 7~36V Wide Voltage Power Supply, Modbus RTU Protocol, Rail-Mount Support
- Configurable device address (1~255), multi devices can be cascaded on RS485 bus
- Onboard voltage regulator, supports 7~36V wide range power supply
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal

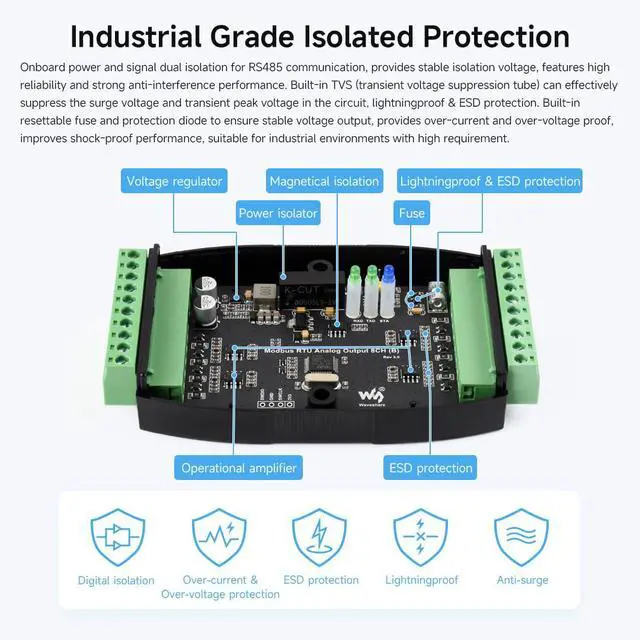

- Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
- Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
- 12-bit DA conversion, using high-precision resistors for more accurate output data
- Onboard watchdog, for stable output without crashing
- Rail-mount case design, support stacking combination, easy to install and safer to use
- 3x LEDs for indicating the MCU status and signal transceiving status
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Configurable device address (1~255), multi devices can be cascaded on RS485 bus
Onboard voltage regulator, supports 7~36V wide range power supply
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
12-bit DA conversion, using high-precision resistors for more accurate output data
Onboard watchdog, for stable output without crashing
Rail-mount case design, support stacking combination, easy to install and safer to use
3x LEDs for indicating the MCU status and signal transceiving status
Onboard voltage regulator, supports 7~36V wide range power supply
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
12-bit DA conversion, using high-precision resistors for more accurate output data
Onboard watchdog, for stable output without crashing
Rail-mount case design, support stacking combination, easy to install and safer to use
3x LEDs for indicating the MCU status and signal transceiving status
