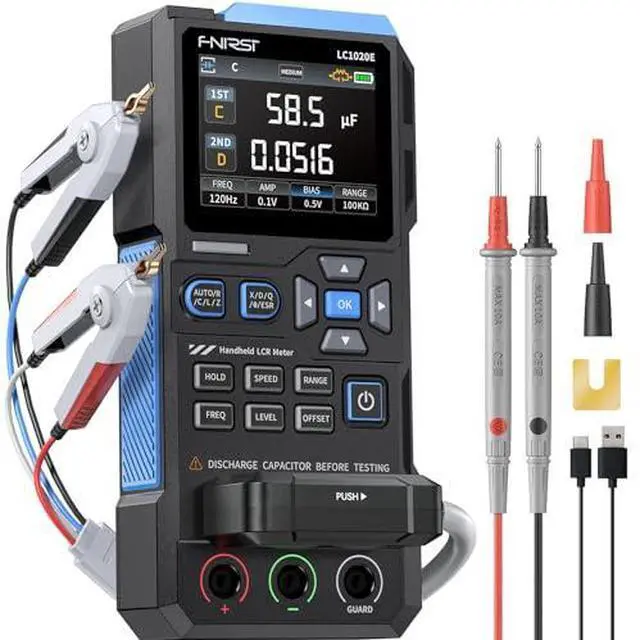

FNIRSI LC1020E 100kHz LCR Meter, 19,999 Counts Resistor Inductor Capacitor Tester, Auto Component Detect, Measures ESR/Q/D//X, 2.8 Color TFT, Dual Parameter Display, Sorting & Open/Short Calibration

Dual ParameterFNIRSI LC1020E LCR Meter supports AUTO, Capacitance, Resistance, and Inductance with main/secondary parameters (X/D/Q//ESR) shown simultaneously.
Frequencies: 100Hz/120Hz/1kHz/10kHz/100kHz. 19, 999-count display ensures precise readings. Smart SortingESR Meter with Sorting & Comparison Mode calculates relative error (%) using preset nominal/tolerance ( 0.1 % 99.9 %) for accurate component screening. Alerts via sound/LED. Supports Capacitors 1pF100mF, Resistors 10m10M, Inductors 1µH100H. Reliable TestingCapacitance meter supports open/short calibration, adjustable test voltage ( 0.1 / 0.3 / 0.6V ) and internal bias ( 0.0 / 0.5V ). Records if components meet preset nominal/tolerance, tracking success/fail counts. Data hold locks readings. 100 output ensures accuracy.
Speed: Fast (4/s), Medium (2/s), Slow (1/s). User-FriendlyESR meter capacitor tester features 3-pin sockets and 5-slot jacks for precise four-terminal (Kelvin) measurements with professional fixtures. 2.8 TFT display with 10-level brightness. 3000mAh battery with auto-off, Type-C charging/firmware updates. NotePerform open/short calibration before measurement. Fully discharge capacitors and inductors. For onboard components, ensure the circuit is powered off. Do not measure live circuits to avoid damage or inaccurate readings
