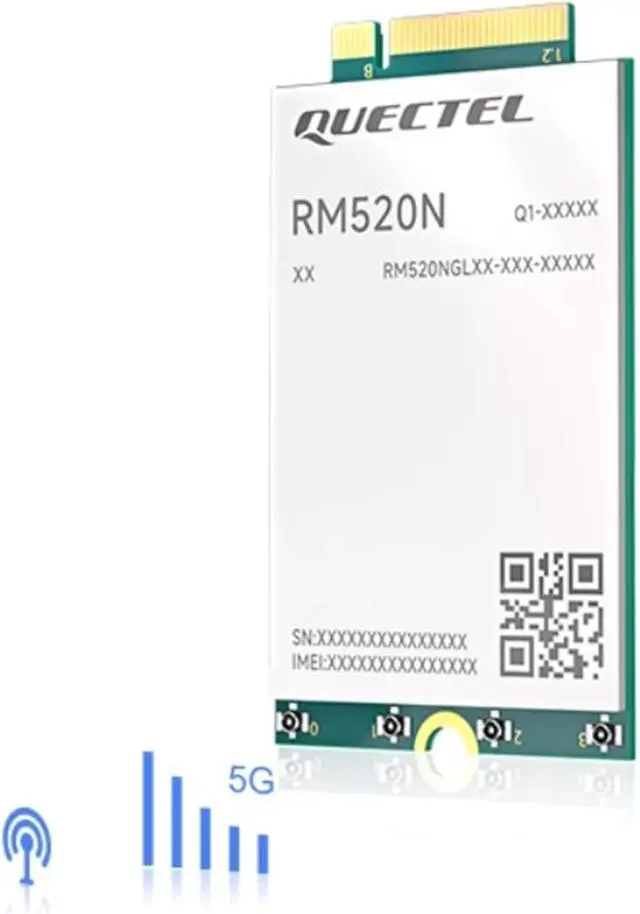

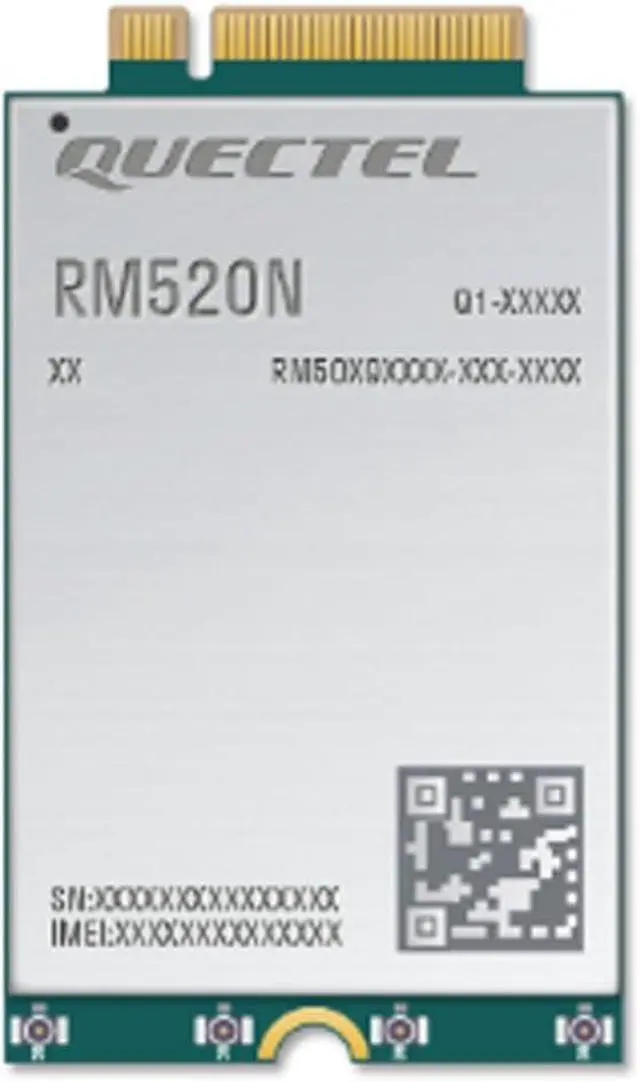

RM520N-GL IoT 5G NR Sub-6G Module, 5G Mini PCIe M.2 Network Card, 5G Cellular Data Modem, Supports 5G NSA and SA Modes, GNSS Receiver, for IoT and eMBB Applications (5G RM520N-GL Module)

The RM520N is a series of 5G IoT modules specially optimized for IoT/eMBB applications, designed in an M. 2 form factor in accordance with the 3GPP Release 16 specification, which supports both 5G NSA and SA modes, NSA
data rates: 3.4G bps (DL) / 550Mbps (UL), SA
data rates: 2.4G bps (DL) / 900Mbps (UL).. The RM520N is compatible with Quectels 5G module series RM50xQ, LTE-A Cat 6 module EM06, Cat 12 module series EM12/EM12xR/EM120K, and Cat 16 module EM160R-GL, facilitating migration from LTE-A to 5G. Support Worldwide 5G and LTE-A coverage Cellular Data Network.. The RM520N is an industrial-grade 5G module for industrial and commercial applications only. It covers nearly all the mainstream carriers worldwide and supports IZat location technology Gen9C Lite (GPS, GLONASS, BDS and Galileo). The integrated Multi-constellation GNSS receiver greatly simplifies the product design and provides quicker, more accurate and dependable positioning capability.. The RM520N IoT 5G NR Sub-6G Module has a rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB and PCIe drivers for Windows 7/8/ 8.1 /10, Linux, and Android).
Size: 30mm × 52mm × 2.3 mm, Extended temperature range of -40°C to +85°C.. The RM520N 5G Cellular Data Modem Module can be adopted in a wide range of eMBB and IoT applications including industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, video transmission, and digital signage.
