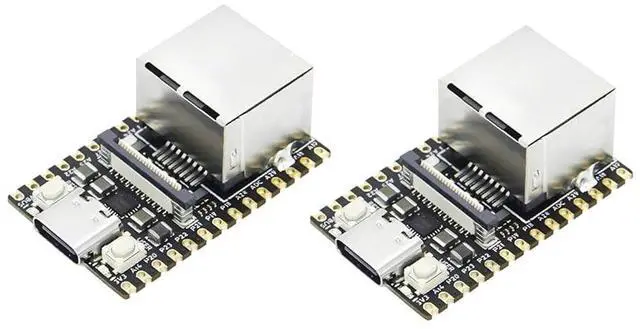

LicheeRV Nano RISC-V Development Board, WiFi 6 Ethernet AI Vision RISCV Sensor, 1TOPS NPU 1GHz RISC-V C906 CPU, 2Gbit DDR3 RAM 100M RJ45 Port, Support Linux Debian (LicheeRV-Nano-E 2pcs)

LicheeRV Nano is a mini-sized RISC-V development board, equipped with the SG2002 processor, large core 1GHZ (RISC-V/ARM optional), small core 700MHZ RISC-V, 256MB DDR3 memory, built-in 1Tops NPU, support BF16. 25~300M 8051 low-power core.. LicheeRV Nano RISC-V development board has rich interfaces such as MIPI-CSI, MIPI-DSI, SDIO, ETH, USB, SPI, UART, I2C, etc., which can be expanded to a variety of applications. Support TF card / SD NAND two-choice boot (SD NAND pad is under the TF card slot).

. LicheeRV Nano RISC-V Single Board Computer Onboard video interface: Video
output: 2 lane MIPI DSI output, standard 31pin interface, support 6pin capacitive touch screen.
Video input: 4 lane MIPI CSI input, 22Pin interface, supports split dual-channel CSI.. LicheeRV Nano RISC-V Single Board Computer onboard audio interface: Audio
output: Onboard PA amplifier, can directly connect speakers within 1W on the pin header.
Audio input: Onboard analog silicon microphone, can directly receive sound.. LicheeRV Nano RISC-V Single Board Computer supports wireless connection: W/WE version supports 2.4G / 5.8G dual-band WiFi6 and BLE 5.4, wired
connection: E version supports 100M RJ45 connector..
Wide Application: LicheeRV Nano RISC-V development board supports building MMF development environment, supports mainline buildroot, and also supports openwrt, alpine linux and Debian image systems.
