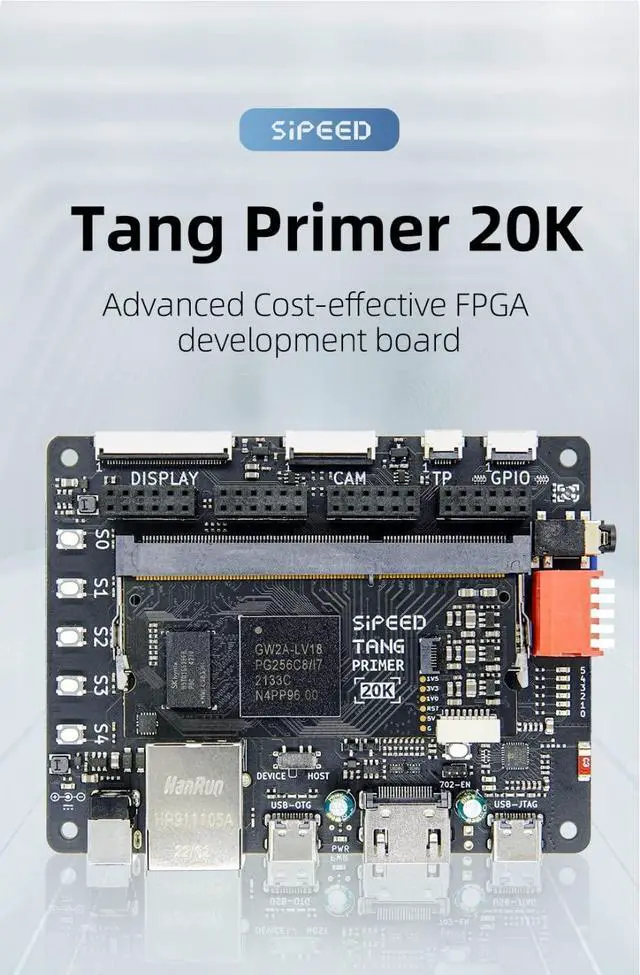

Sipeed Tang Primer 20K Gowin GW2A FPGA GoAI Development Board Kit Minimum System with DSP LvDs Interface and BSRAM Resources onboard 1GB DDR3 and PMIC Running RISC-V Code

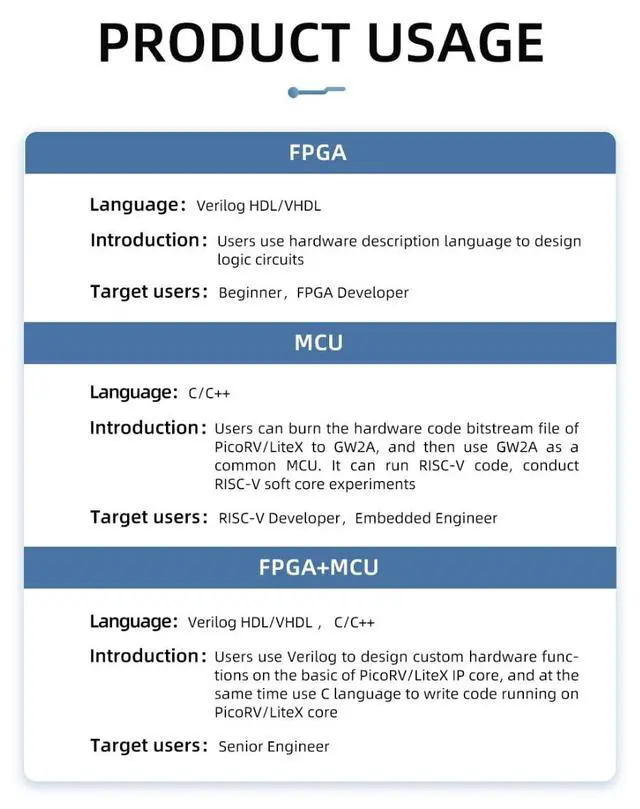

[High-performance DSP] Sipeed Tang Primer 20K Core Module board is sodimm package, uses GW2A-LV18PG256C8I7 as the main chip, and hasmultiple internal resources, such as high-performance DSP, high-speed LvDs interface and BSRAM resources, on-boardDDR3 and PMIC. Users could use this CM board for rapiddevelopment and verify, and it's suitable for high-speedand low-cost situations.. [Run RISC-V Code] Sipeed Tang Primer 20K gowin fpga development boards can burn the hardware code bitstream file ofPicoRV/Litex to Gw2A, and then use GW2A as acommon MCU. lt can run RISC-V code, conduct RISC-v soft core experiments.

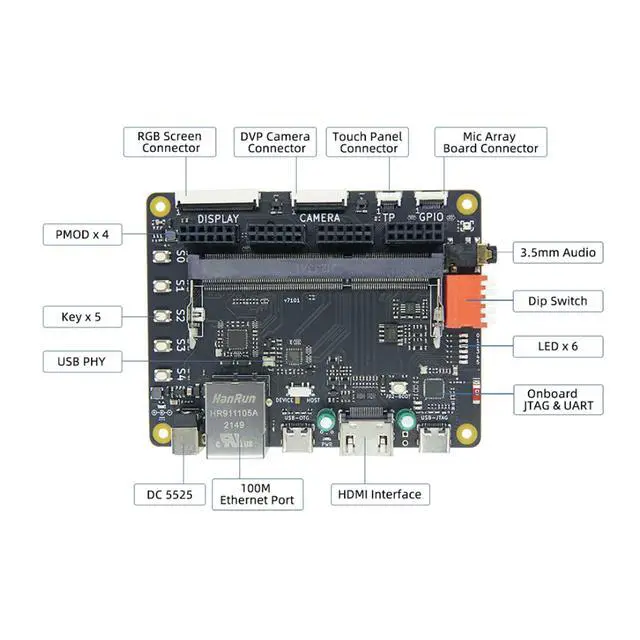

[Verilog Design] Sipeed Tang Primer 20K Dock FPGA single board computer use verilog to design custom hardware func-tions on the basic of PicoRV/Litex lP core, and at thesame time use C language to write code running onPicoRV/Litex core.. [Rich Peripheral interfaces] Sipeed Tang Primer 20K Dock is equipped with a wealth of pe-ripheral resources, such as onboard USB-JTAG & UARTperipheral, Ethernet PHY and RJ45 connector, USB 2.0PHYHDMI l output connector, Audio output circuit and 3.5 mm connectorRGB screen connector, DVP cameraconnector.. [PMOD interfaces] Sipeed Tang Primer 20K Lite ext-board routes so many lOs todouble row pin headers and PMOD interfaces, with whichusers could easily connect other peripheral modules or cir-cuits for secondary development.
