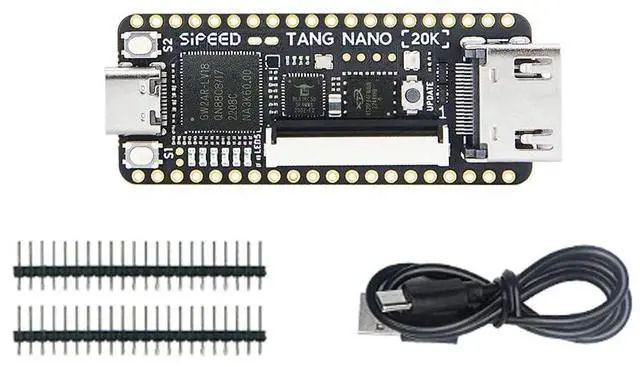

Sipeed Tang Nano 20K GW2AR-18 QN88 FPGA Development Board with 64Mbits SDRAM 828K Block SRAM Linux RISCV Single Board Computer for Retro Game Console Support microSD RGB LCD JTAG Port

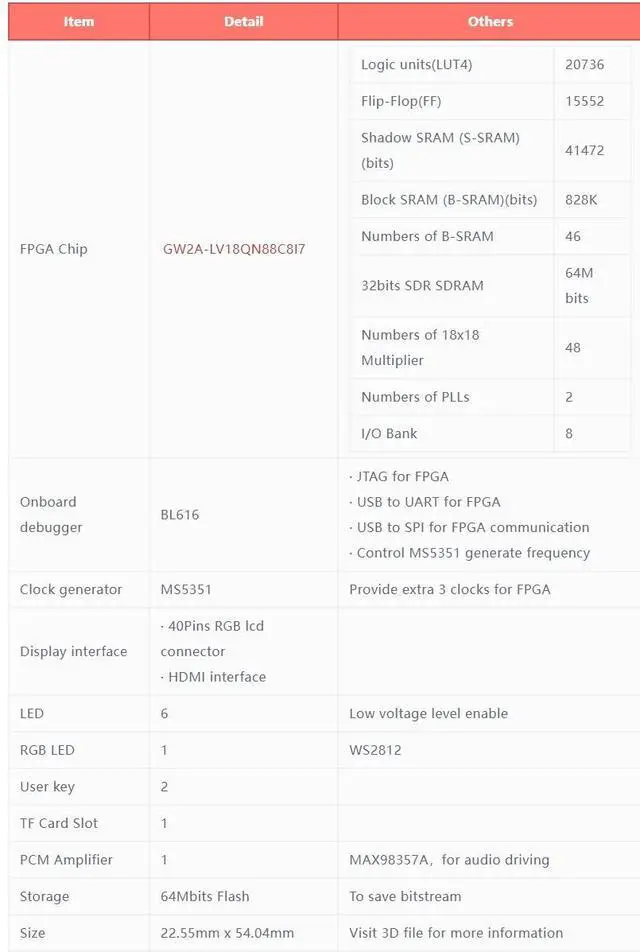

[FPGA Chip] GW2AR-18 QN88 FPGA Chip containing 20736 LUT4 logic cells and 15552 Filp-Flops.There are 2 PLL in this FPGA chip, and many DSP units supporting 18 bit x 18 bit multiplication
[Onboard Debugger ] Sipeed Tang Nano 20K Development Board support JTAG for FPGA, USB to UART for FPGA,USB to SPI for FPGA communication, Control MS5351 generate frequency
[USB2.0 HS interface] The 27MHz crystal generates the clock for HDMI display, onboard MS5351 clock generating chip also provides mutiple clocks.Support Serial communication, high-speed SPI reception.
[Application scenarios] Tang Nano 20K Open source Development Board supports game console emulators, drives RGB screens, multiple display outputs, 20K LUT4, RISC-V soft-core experiments.
[Wiki] "dl.sipeed.com/shareURL/TANG/Nano_20K/1_Datasheet"
Any after-Sales Privems, Please Contact us by click "Waypondev" store and ask a question or leave the message in our forum by "forum.youyeetoo .com/".

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

[FPGA Chip] GW2AR-18 QN88 FPGA Chip containing 20736 LUT4 logic cells and 15552 Filp-Flops. There are 2 PLL in this FPGA chip, and many DSP units supporting 18 bit x 18 bit multiplication. [Onboard Debugger ] Sipeed Tang Nano 20K Development Board support JTAG for FPGA, USB to UART for FPGA, USB to SPI for FPGA communication, Control MS5351 generate frequency. [USB 2.0 HS interface] The 27MHz crystal generates the clock for HDMI display, onboard MS5351 clock generating chip also provides mutiple clocks. Support Serial communication, high-speed SPI reception.

. [Application scenarios] Tang Nano 20K Open source Development Board supports game console emulators, drives RGB screens, multiple display outputs, 20K LUT4, RISC-V soft-core experiments.. [Wiki] "dl. sipeed. com/shareURL/TANG/Nano_20K/1_Datasheet". Any after-Sales Privems, Please Contact us by click "Waypondev" store and ask a question or leave the message in our forum by "forum. youyeetoo. com/".
