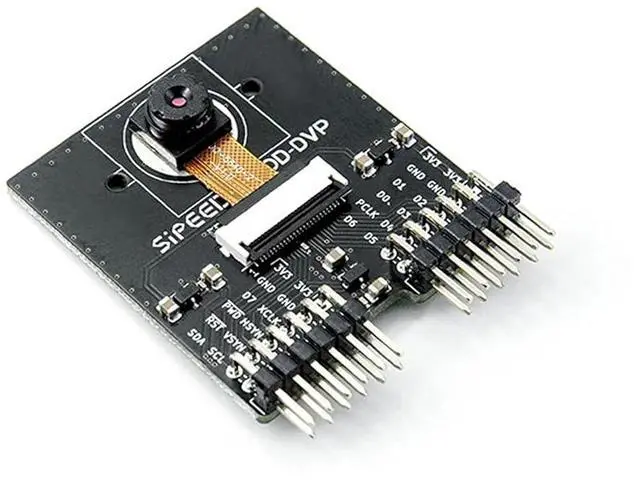

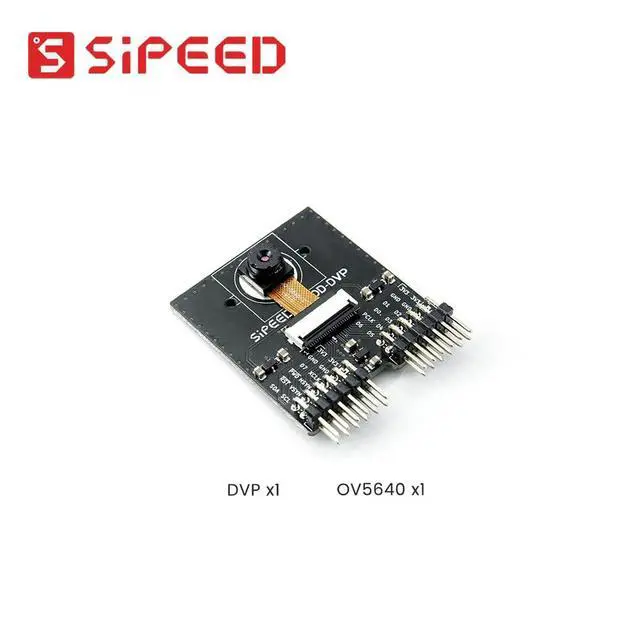

Sipeed Tang PMOD Module for Sipeed Tang Primer 25K Dock FPGA Development Board or Tang Mega 138K/138K Pro Dock FPGA DEV Board Kit, for FPGA Education IDE Programming (Camera Module)

The Sipeed TANG PMOD module is an FGPA expansion module compatible with the Digilent Pmod interface standard. The simple backplane can be used to connect a USB joystick to a 40Pin SDRAM module, and the 3 PMOD ports can be used to connect a HDMI monitor and a PS2 joystick to a typical Retro Game console form factor.. Sipeed TANG PMOD modules can be used to extend the functionality of FPGA development boards that include this interface, such as the Sipeed Tang Mega 138K/138K Pro Dock DEV Board and Tang Primer 25K Dock FPGA single board computer.

. Sipeed TANG PMOD modules offer different expansion functions and can be used in any combination to realize the desired functions.. The Sipeed TANG 40P MODULE is an FGPA expansion module that is partially compatible with the DE10-Nano 40P interface standard and can be used to expand the functionality of FPGA development boards that include this interface.. The higher pin count allows the connection of more complex modules such as dual-particle SDRAM modules and DVP binocular camera modules.. The Sipeed TANG SDRAM module is not compatible with Mister SDRAM V 3.0, please check the schematic diagram carefully (the difference is on pins 29 and 30 of the 40P bus).
