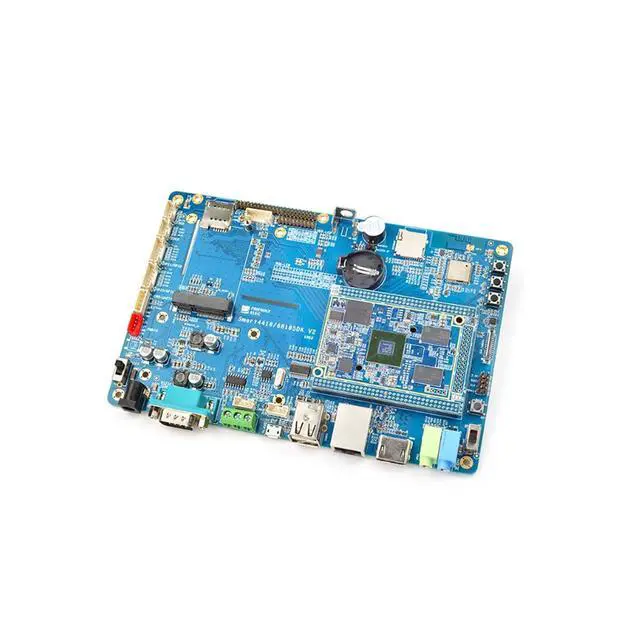

Nanopi Smart4418 Dev Kit Cortex-A9 DDR3 Single Board Computer with 1GB RAM + 8GB eMMC onboard WiFi Gbps Ethernet Port for Project Development Support Ubuntu-core Android (with Core Board)

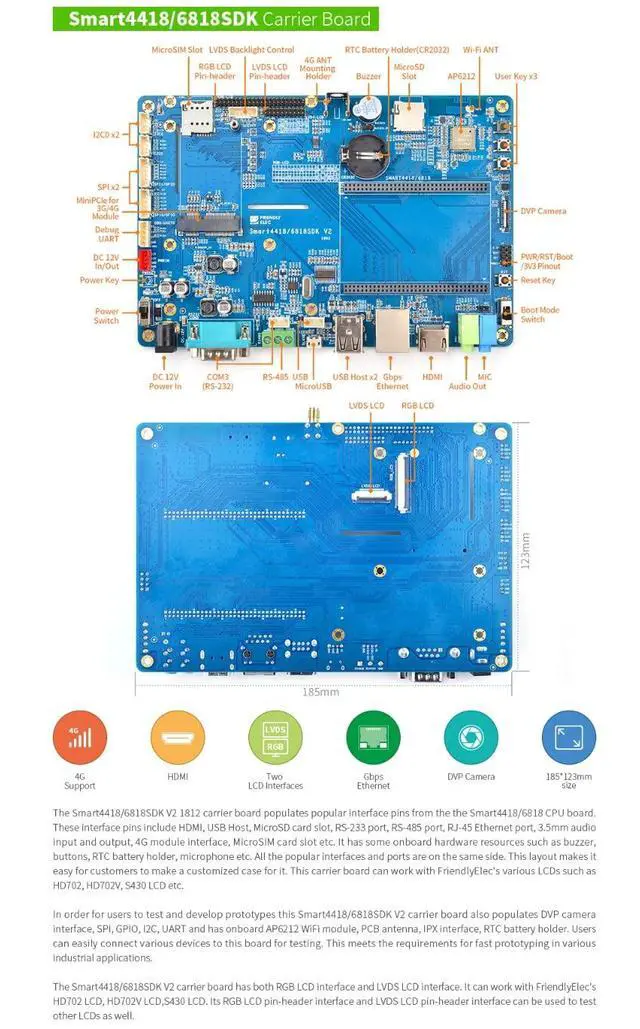

Smart4418/6818SDK V2 Backplane: Bring out various common interfaces of Smart4418/6818 core board, such as HDMI output, USB Host, MicroSD card slot, RS-233 interface, RS-485 interface, RJ-45 Ethernet port, 3.5 mm audio Input and output port, 4G module interface, MicroSIM card slot, etc..
Smart4418/6818SDK Baseboard: It brings out more interfaces, such as DVP camera, SPI, GPIO, I2C, UART and other common interfaces, onboard AP6212 Wi-Fi Bluetooth module, and has PCB antenna, IPX antenna interface, RTC battery holder..

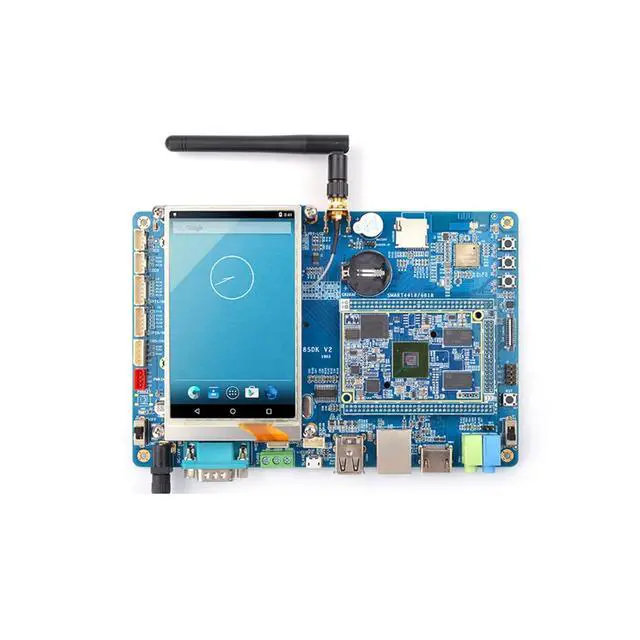

Smart4418/6818SDK V2 Backplane: There are RGB LCD interface and LVDS LCD interface on the bottom, which can be directly connected to HD702 LCD screen, HD702V LCD screen, S430 LCD screen, and lead out RGB LCD and LVDS LCD interface pin headers, which is convenient for users to evaluate other LCD displays Screen..

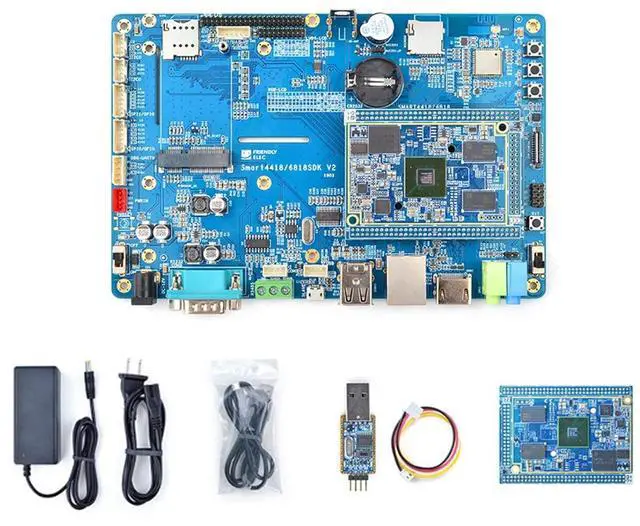

Smart4418 Dev Kit 2.0: It can use various interfaces easily and quickly, which is very suitable for product development of enterprise users, and for the convenience of users to quickly develop product prototypes.
Wiki: "wiki. friendlyelec. com/wiki/index. php/Smart4418/6818SDK_V2". Any after-sales problems, please contact us by our tech-support click "WayPonDEV" store or leave the message in our forum by "forum. youyeetoo. com/" and ask the question.
