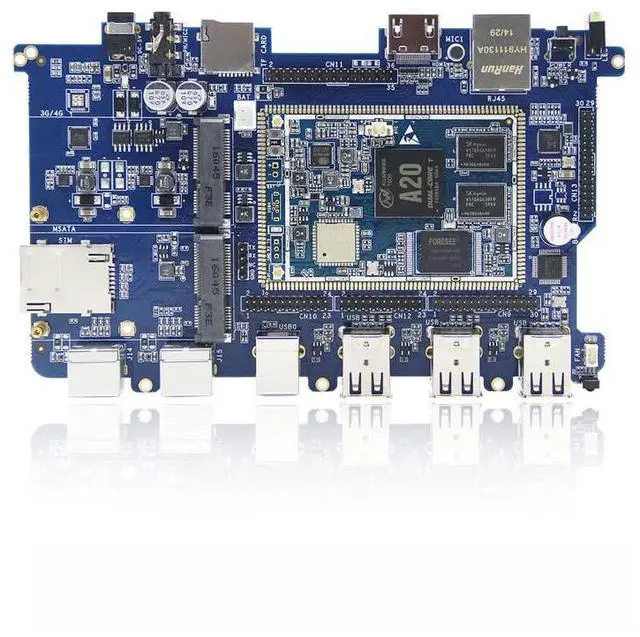

CubieAIO A20 Board Open Source All in One Mini Embedded Computer Android Linux UART x4 USB x6 Allwinner A20, ARM Demo Board

·

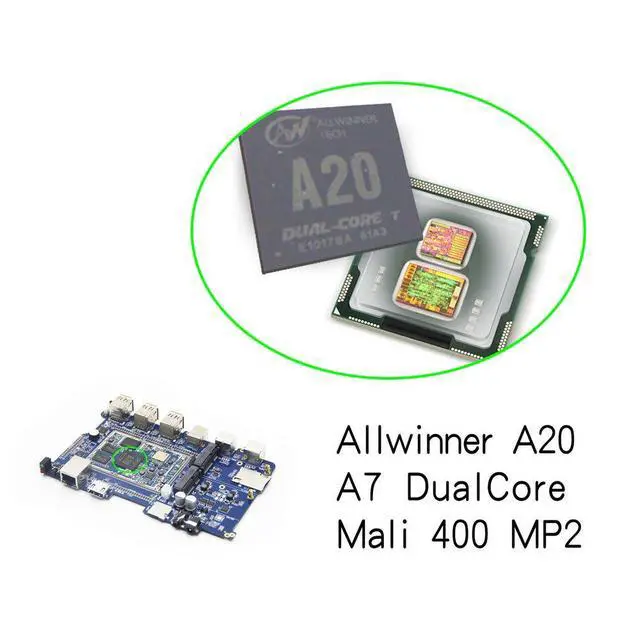

CPU: AllWinner SOC A20 ARM Cortex-A7 Dual-CoreARM Mali400 MP2 Complies with OpenGL ES 2.0 / 1.1, 100M/1000M Ethernet RJ45, Wifi+BT 4.0 wireless connection with external antenna.

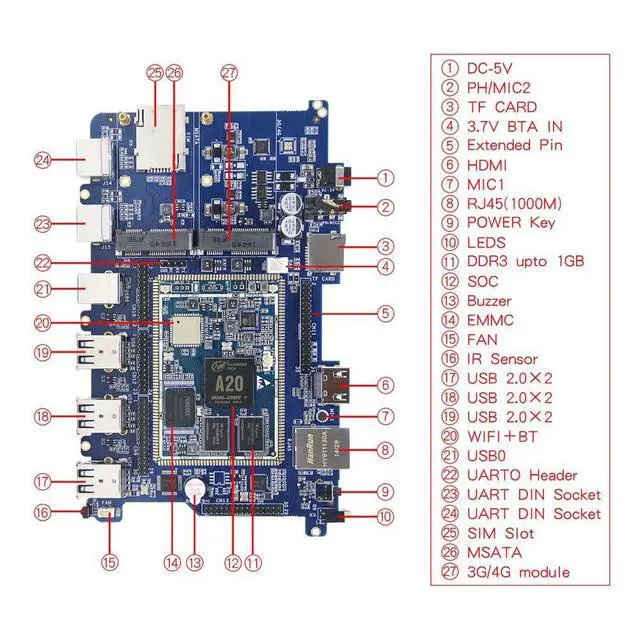

· ROM: 1GB DDR3@480MHz (960MTPS), Storage solution4G TSD/8GB emmc (default) 1GB Default, HDMI&VGA 1080P@60Hz display output, SATA 2.0 interface support MSATA. Support 3G/4G miniPCIE module with data communication. · 6 x USB HOST, 1 x OTG, 1 x Toslink (SPDIF Optical), 1 x IR, 2 x LEDs, 1 x Headphone and Micin jack, 3 x Keys, PowerDC5V @ 4A, support Real Time Clock battery. 54 extended pins including UART, LineIN, MicIn, PWM, Low Resolution ADC, SPI, I2C, LCD, GPIO, CCIR656, MIPI_CSI, I2S. · 54 extended pins including UART, LineIN, MicIn, PWM, Low Resolution ADC, SPI, I2C, LCD, GPIO, CCIR656, MIPI_CSI, I2S. · CubieAIO-A20 is open source All In One Mini embedded computer especially targets many Android & Linux industry applications. This device integrates all the computers features and interfaces in a very small size, even including host, display and touch panel. It can be used as an end product for a lot of computing and controlling applications across all industries.
