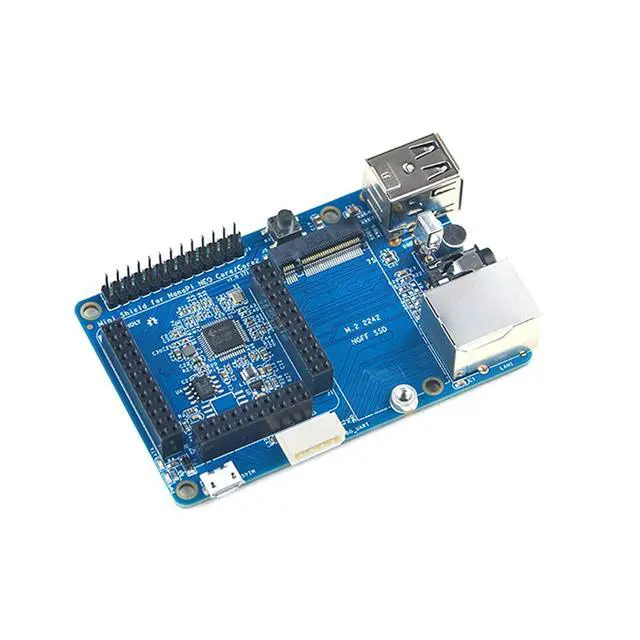

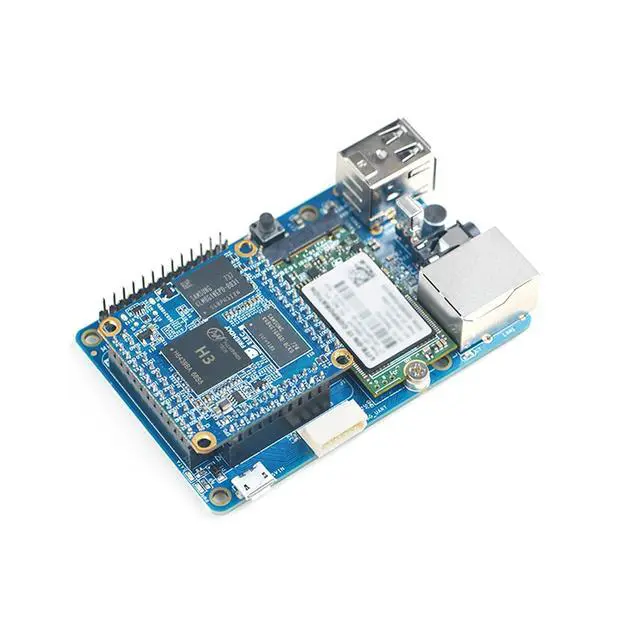

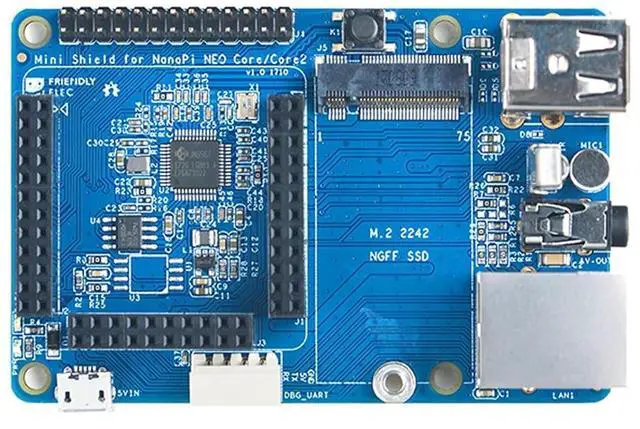

    NanoPi NEO Core Open Source Custom Mainboard, Mini Shield for NanoPi NEO Core/Core2 Single Board Computer with SDK Carrier Board Developed (Without NEO Core Board)

    Be the first to review this product...

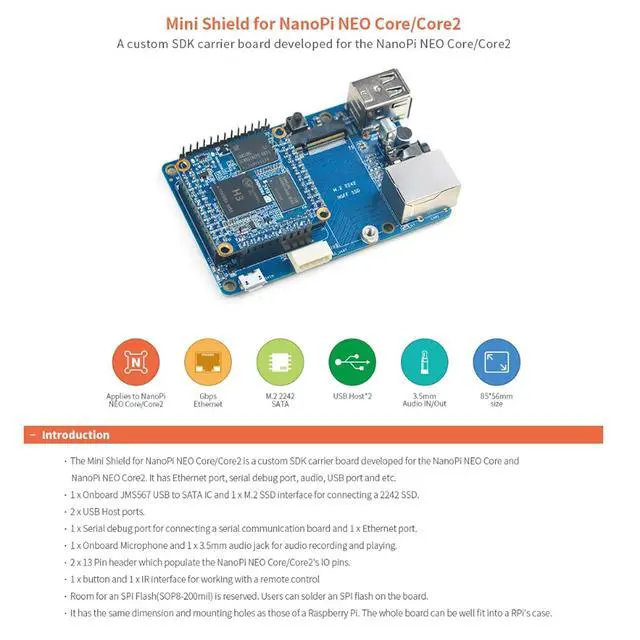

    • The Mini Shield for NanoPi NEO Core/Core2 is a custom SDK carrier board developed for the NanoPi NEO Core andNanoPi NEO Core2.lt has Ethernet port, serial debug port, audio, USB port and etc.
    • lx Onboard JMS567 USB to SATA IC and 1xM.2 SSD interface for connecting a 2242 SSD.·2x USB Host ports
    • 1x Serial debug port for connecting a serial communication board and lx Ethernet port
    • 1x Onboard Microphone and 1x3.5mm audio jack for audio recording and playing
    • 2×13 Pin header which populate the NanoPi NEO Core/Core2's l0 pins
    • Room for an SPIl Flash(SOP8-200mil) is reserved.Users can solder an SPl flash on the board

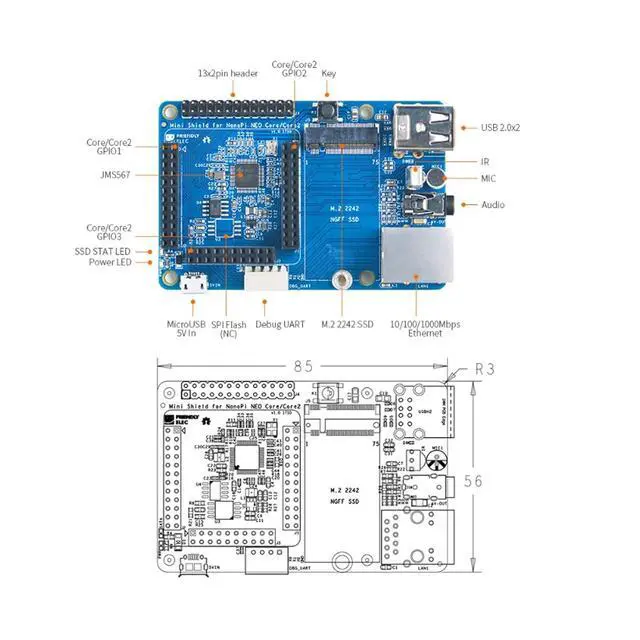

    • lt as the same dimension and mounting holes as those of a Raspberry Pi.The whole board can be well fit into a RPi's case
    • Wiki: Any after-sales problems, please contact us by our tech-support click "WayPonDEV" store or leave the message in our forum by "forum.youyeetoo .com/" and ask the question
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    The Mini Shield for NanoPi NEO Core/Core2 is a custom SDK carrier board developed for the NanoPi NEO Core andNanoPi NEO Core2. lt has Ethernet port, serial debug port, audio, USB port and etc.. lx Onboard JMS567 USB to SATA IC and 1xM. 2 SSD interface for connecting a 2242 SSD. ·2x USB Host ports. 1x Serial debug port for connecting a serial communication board and lx Ethernet port. 1x Onboard Microphone and 1x 3.5 mm audio jack for audio recording and playing. 2×13 Pin header which populate the NanoPi NEO Core/Core2's l0 pins.

    Room for an SPIl Flash(SOP8-200mil) is reserved. Users can solder an SPl flash on the board. lt as the same dimension and mounting holes as those of a Raspberry Pi. The whole board can be well fit into a RPi's case.
    Wiki: Any after-sales problems, please contact us by our tech-support click "WayPonDEV" store or leave the message in our forum by "forum. youyeetoo. com/" and ask the question
