SLogic Combo 8 Logic Analyzer Debugger Serial Port, DAPLink CKLink Debugging Tools, Portable Development Kit Tool for ARM RISC-V Linux Single Board Computers

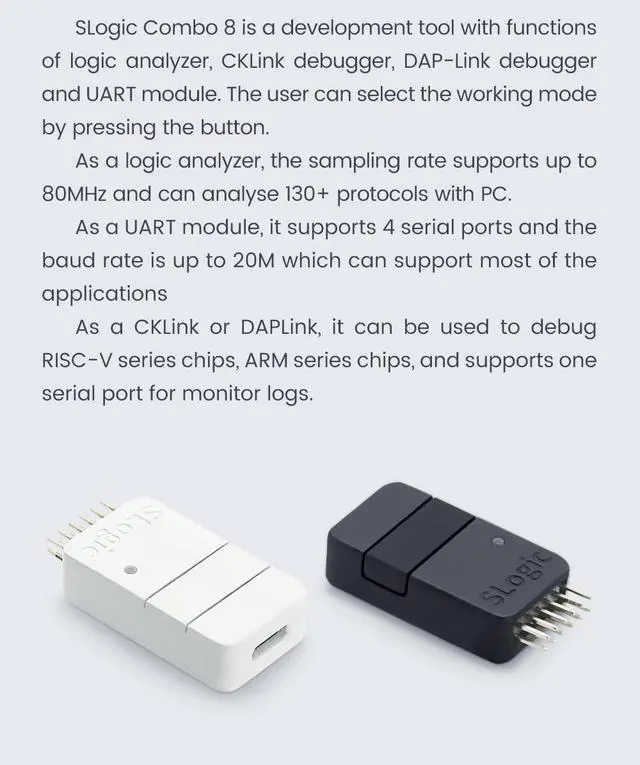

- SLogic Combo 8 is a development tool that combines the functions of a logic analyzer, CKLink Debugger, DAP-Link Debugger, and USB2 UART, which can be switched at the push of a button.

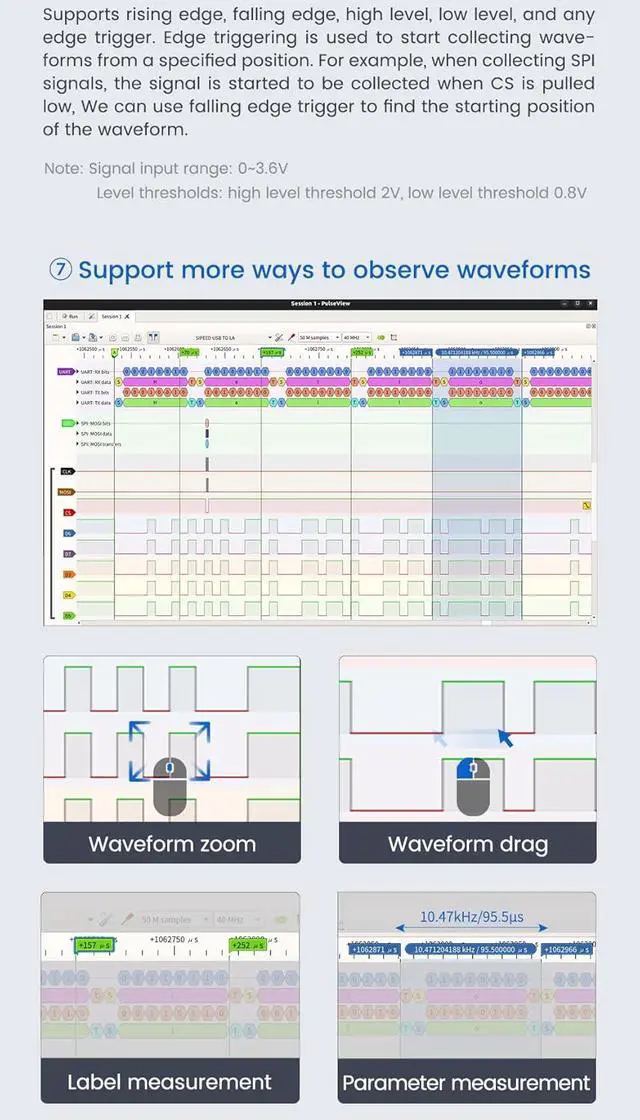

- SLogic Combo 8 can be used as a logic analyzer with a maximum sampling rate of 80MHz, and can be used with a host computer to analyze most protocols.

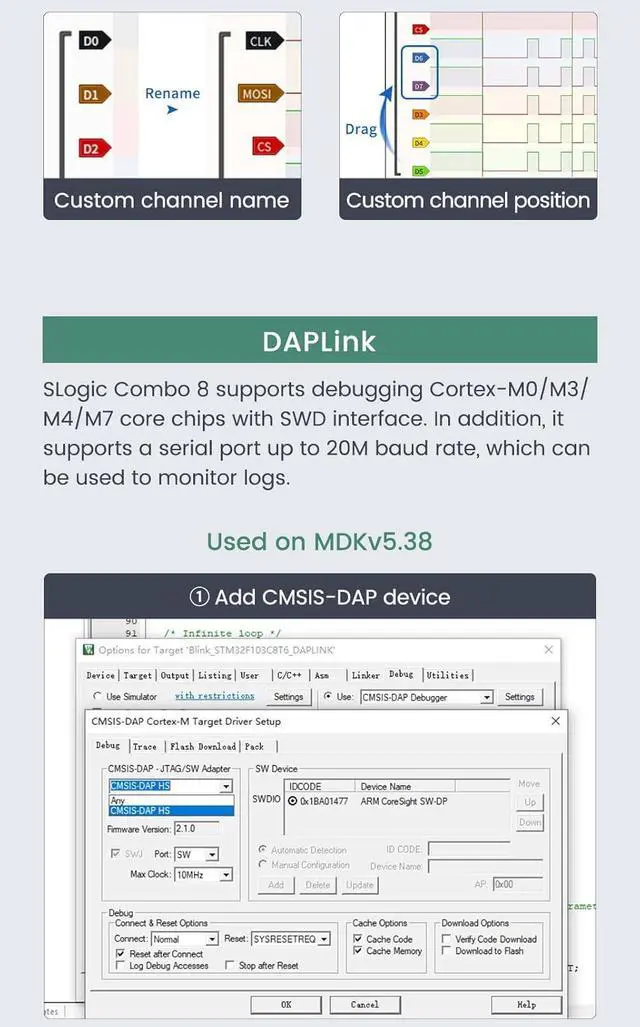

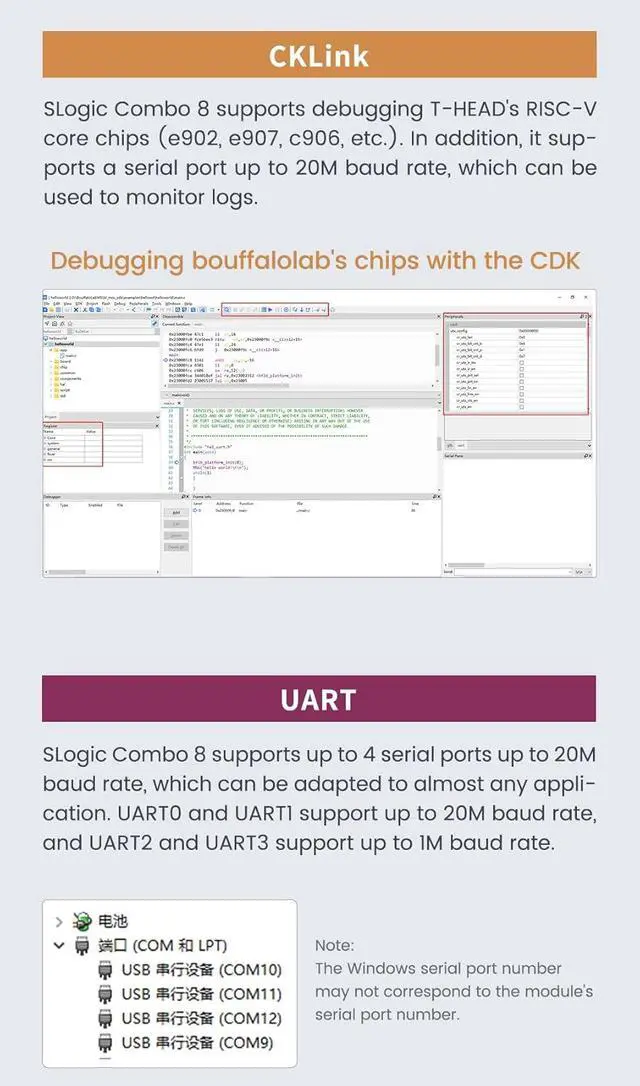

- SLogic Combo 8 can be used as CKLink or DAPLink for debugging RISC-V and ARM single board computers, and it also supports one additional virtual serial port for log observation.
- As a UART module, SLogic Combo 8 supports 4 serial ports at the same time, with a maximum baud rate of 20M, which can be adapted to most of the scenarios using serial ports. Among them, UART0 and UART1 can reach up to 20M baud rate, and UART2 and UART3 can reach up to 1M baud rate.
- [SDK Document] SLogic Combo 8 SDK download please click "WayPonDEV" store and ask the question. All technical and after-sales questions, please leave all technical and after-sales questions, please leave the message to "wpd#youyeetoo&com (#-@,&-.)" .
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SLogic Combo 8 is a development tool that combines the functions of a logic analyzer, CKLink Debugger, DAP-Link Debugger, and USB2 UART, which can be switched at the push of a button.. SLogic Combo 8 can be used as a logic analyzer with a maximum sampling rate of 80MHz, and can be used with a host computer to analyze most protocols.. SLogic Combo 8 can be used as CKLink or DAPLink for debugging RISC-V and ARM single board computers, and it also supports one additional virtual serial port for log observation.
. As a UART module, SLogic Combo 8 supports 4 serial ports at the same time, with a maximum baud rate of 20M, which can be adapted to most of the scenarios using serial ports. Among them, UART0 and UART1 can reach up to 20M baud rate, and UART2 and UART3 can reach up to 1M baud rate.. [SDK Document] SLogic Combo 8 SDK download please click "WayPonDEV" store and ask the question. All technical and after-sales questions, please leave all technical and after-sales questions, please leave the message to "wpd#youyeetoo&com (#-@, &-.
)".
. As a UART module, SLogic Combo 8 supports 4 serial ports at the same time, with a maximum baud rate of 20M, which can be adapted to most of the scenarios using serial ports. Among them, UART0 and UART1 can reach up to 20M baud rate, and UART2 and UART3 can reach up to 1M baud rate.. [SDK Document] SLogic Combo 8 SDK download please click "WayPonDEV" store and ask the question. All technical and after-sales questions, please leave all technical and after-sales questions, please leave the message to "wpd#youyeetoo&com (#-@, &-.
)".
