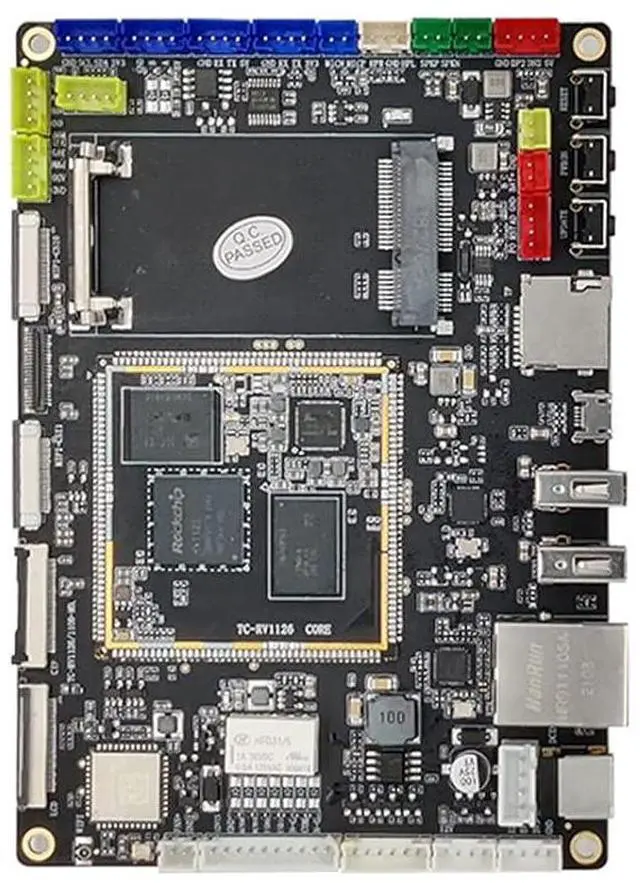

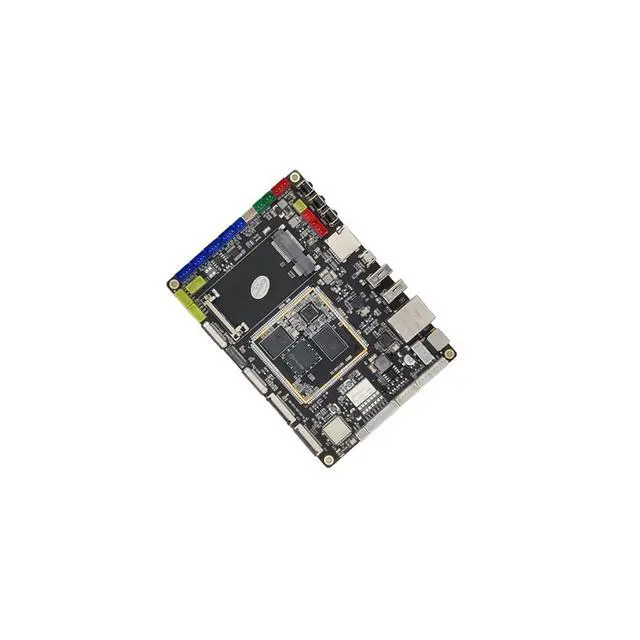

TC-RV1126 Rockchip RV1126 2.0Tops 1.5GHz ARM Cortex-A7 AI Single Board Computer Onboard 1GB RAM LPDDR4+8GM eMMC Bluetooth & WiFi for Smart Home Module Supports Linux Buildroot+QT OS

[Integrates NEON and FPU] TC-RV1126 Single Board Computer takes Low-consumption processor Rockchip RV1126, with 14nm lithography process and quad-core 32-bit ARM Cortex-A7 architecture, integrates NEON and FPU, the frequency is up to 1.5GH z.. [ 2.0 Tops NPU] Built-in neural network processor NPU with computing power up to 2.0 Tops realizes that the power consumption of AI computing isless than 10% of the power required by the GPU. With tools andsupporting AI algorithms provided, it supports direct conversionand deployment of Tensorflow, PyTorch, Caffe, MxNet, ONNX, etc..

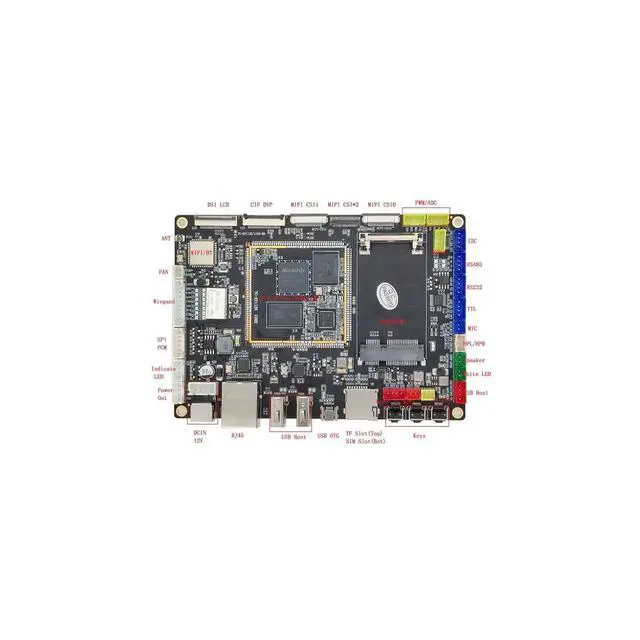

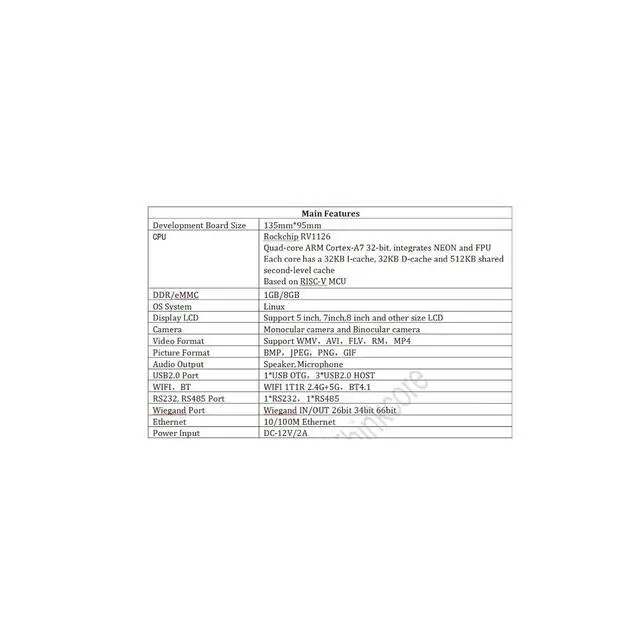

[Extremely Small Size]The size is only 48mm*48mm, ups to 172PIN. Includes I2C/SPI/UART/ADC/PWM/GPIO/USB 2.0 /SDIO/I2S/MIPI-DSI/MIPI-CSI/CIF/PHY and other interfaces are equipped, meeting needs usage scenarios.. [Support Buildroot+QT OS]TC-RV1126 develop board consists of TC-RV1126 stamp hole SOM andcarrier board. It supports Buildroot+QT and Linux OS occupies small space, starts fast, and provides stable and reliable operation.. [Multiple Interfaces]TC-RV1126 carrier board, its size is only 135mm*95mm, includesmany interfaces an functions, such as 4G LTE port, several USB 2.0 port, WIFI, Bluetooth, Audio input and output, MIPI display port, MIPI camera port, DVP camera port, TF card slot, RS485, TTL, Wiegand port, Power output, and so on.
