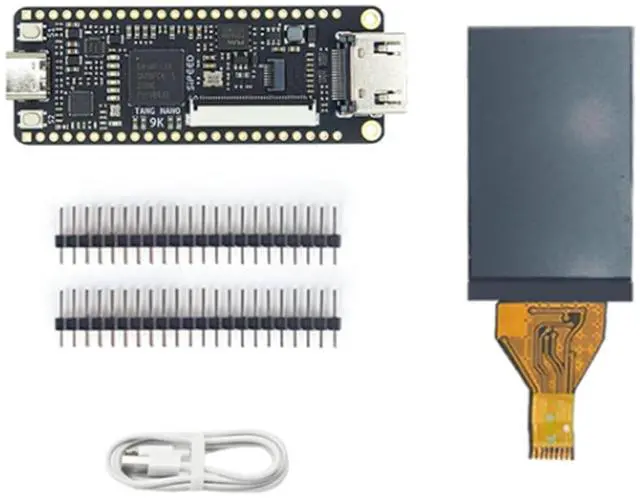

Sipeed Tang Nano 9K Gowin GW1NR-9 RISC-V Single Board Computer, RISCV GoAI FPGA Development Board, 8640 LUT4 Logic Units 468K BSRAM, for Learning FPGAs Deep Designs (9K with 1.14LCD)

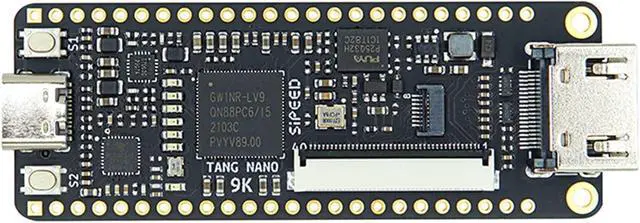

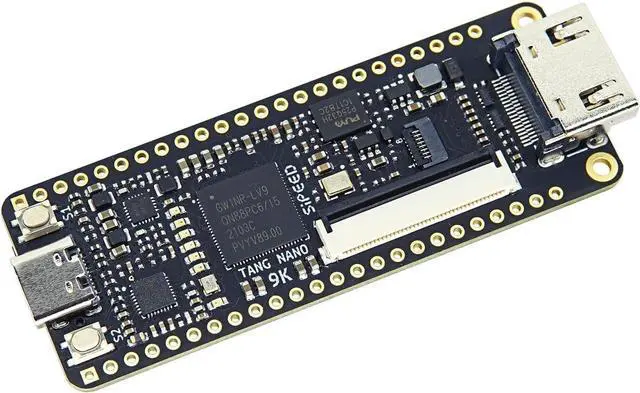

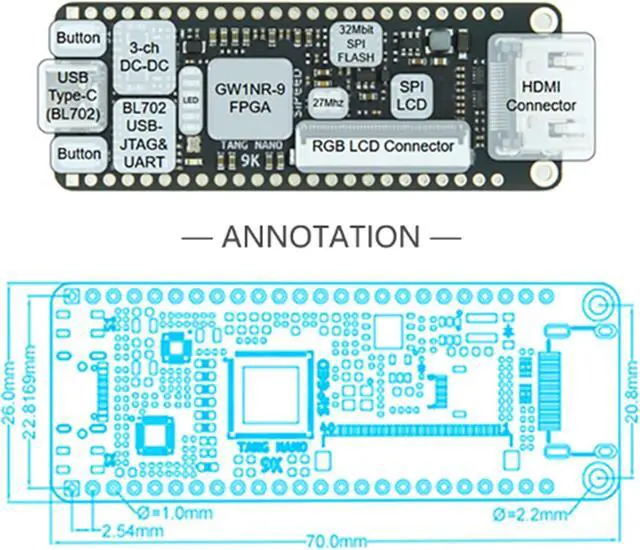

[Based On GW1NR-9 FPGA Chip] Sipeed Tang Nano 9K development board is a streamlined development board designed based on Gowin Semiconductor GW1NR-9 FPGA chip, which provides the core programmable logic function foundation.. [Rich Interfaces and Components] Sipeed Tang Nano 9K development board is equipped with HDMI connector, RGB interface screen connector, SPI screen connector, SPI FLASH and 6 LEDs. These rich interfaces and components facilitate users to perform various connection and display operations, and help to quickly build a verification environment.. [Powerful Logic Unit Resources] Sipeed Tang Nano 9K development board GW1NR-9 chip has 8640 LUT4 logic units, which can design various complex logic circuits, providing hardware support for users to realize diversified functions and meet complex design requirements.

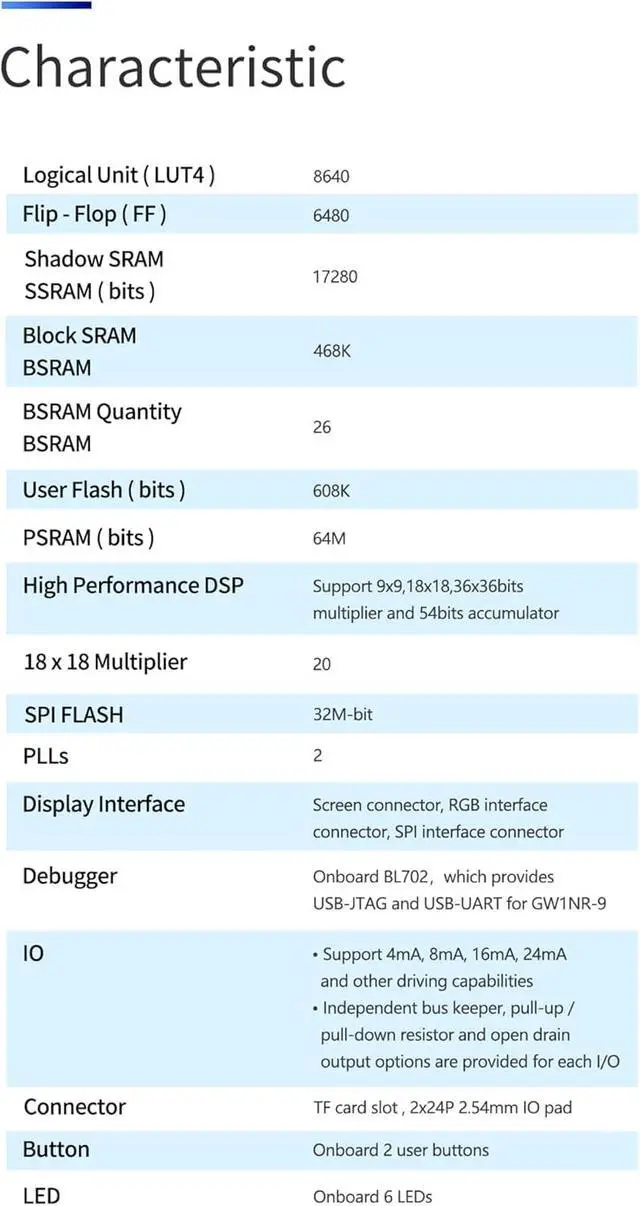

. [8640 LUT4 Logic Units] Sipeed Tang Nano 9K FPGA DEV Board with Logical Unit ( LUT4) 8640/Flip-Flop (FF) 6480/Shadow SRAMSSRAM ( bits ) 17280/Block SRAM468K. 608K User flash (bits). 64M SDR SDRAM (bits). 32M-bit SPI FLASH.. [Support RISC-V Soft Core Verification] Sipeed Tang Nano 9K development board can be used for RISC-V soft core verification, providing a hardware platform for users to learn and study RISC-V architecture and perform functional verification of related soft cores, which helps to promote the learning and application of RISC-V technology.
