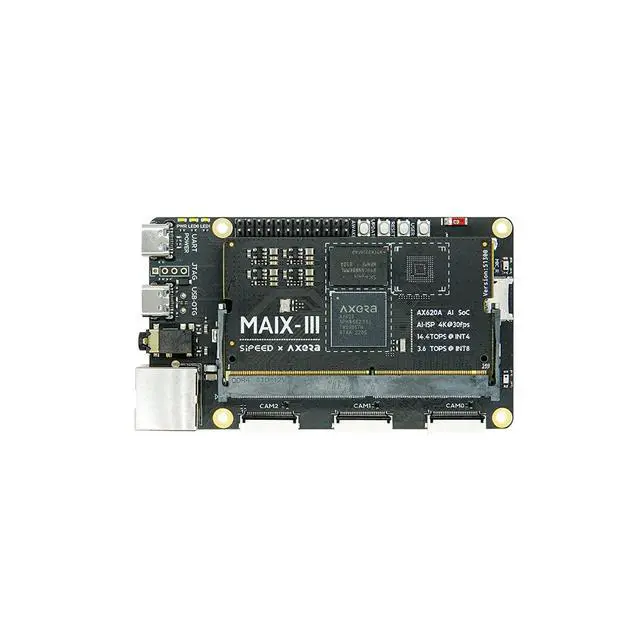

Sipeed M3AXPI Linux AI Development Board Based on AX620A Soc with Quad-core Cortex A7 1Ghz CPU 3.6TOPs NPU 2GB LPDDR4X RAM Onboard WiFi Gigabit Ethernet Support Night Vision/Vision Face Detection

[AX620A Soc] High computing power, high energy efficiency ratio, low power consumption AI SoC chip, the chip integrates a quad-core Cortex A7 @ 1Ghz CPU, has a high computing power NPU with 3.6TOP s@INT8, supports 4K@30fps ISP, and supports H. 264, H. 265 encoded VPU.. [Excellent Storage ] Support 32bit LPDDR4x 2GB RAM, EMMC v 5.1 / SPI Flash, support up to 6 channels of MIPI input, support up to 4 channels of work at the same time, support multiple sub-streams, 1 channel Gigabit Ethernet, 1 channel USB 2.0, 2 channels MIPI DSI /CSI output.

. [Multi-interface function] Support Gigabit Ethernet (ETH) and 2.4GHZ WI-FI onboard antenna. two MEMS MICs onboard support dual microphone noise reduction. 1 x USB 2.0HS, support OTG or HOST function, 1 x USB -UART system serial port. lead out CJTAG, you can connect to the corresponding debugger by yourself, 2 x 12 pin headers, 4 x M 2.5.. [Support Python Programming] The debian11 Linux system supports SD card to start the DD burning system, which is convenient for users to get started out of the box, and supports Python API programming to develop AI applications.

. [Open BSP SDK Source Code] Provide various development source codes, provide API development documents, SDK development methods and other instructions.
