Sipeed Tang Mega 138K Pro Dock GW5AST RISC-V FPGA Development Board Kit, 1GB DDR3 Single Board Computer, onboard PCIe3.0 SFP SFP+ GbE PMOD Port for AI Development Education FPGA Programming

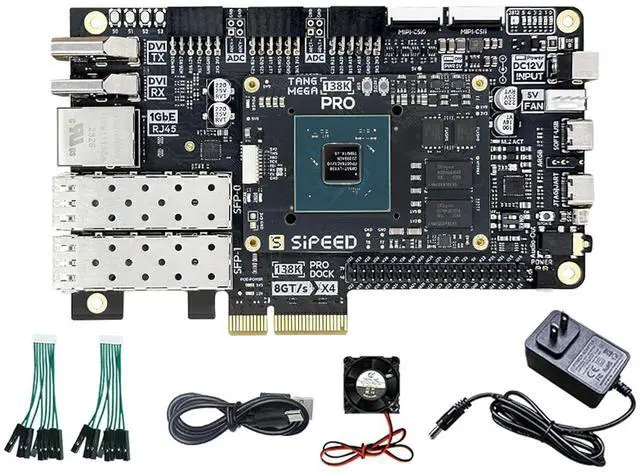

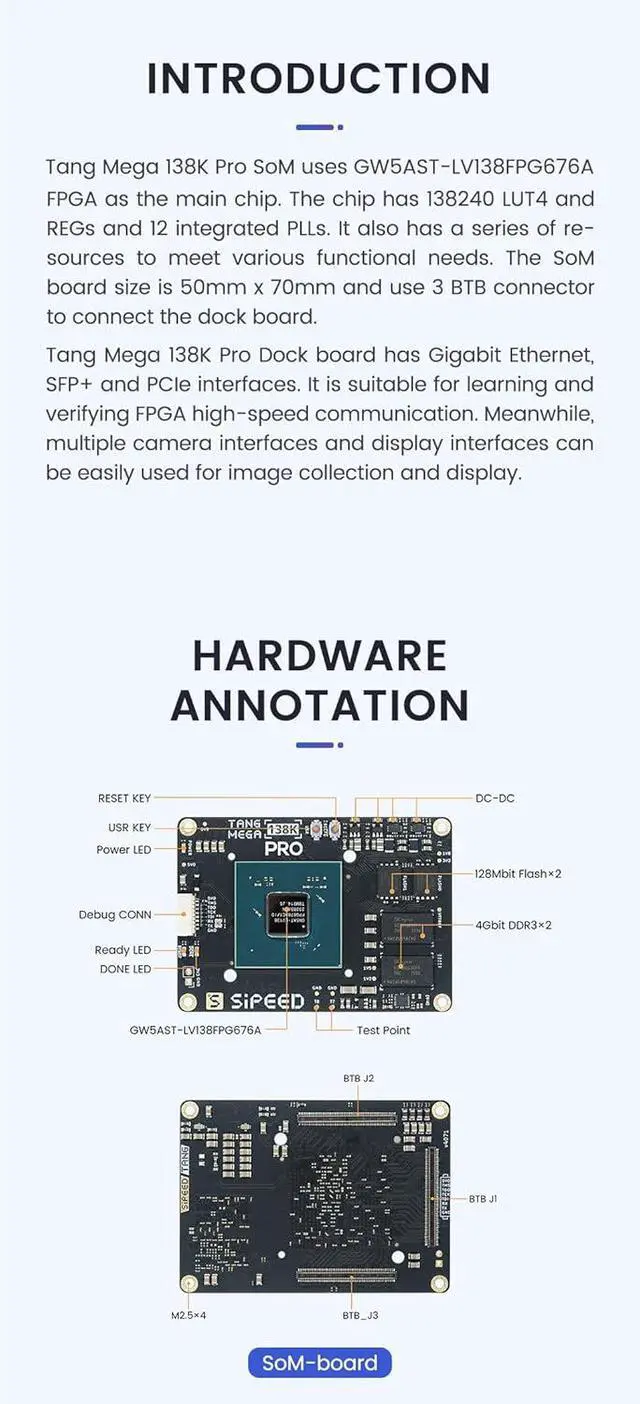

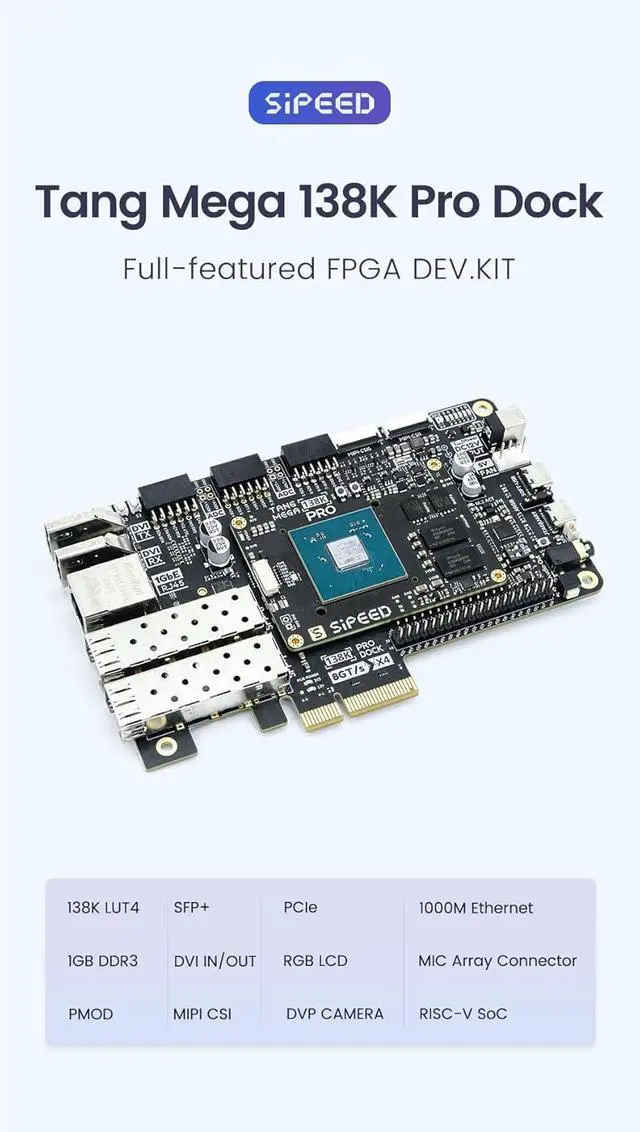

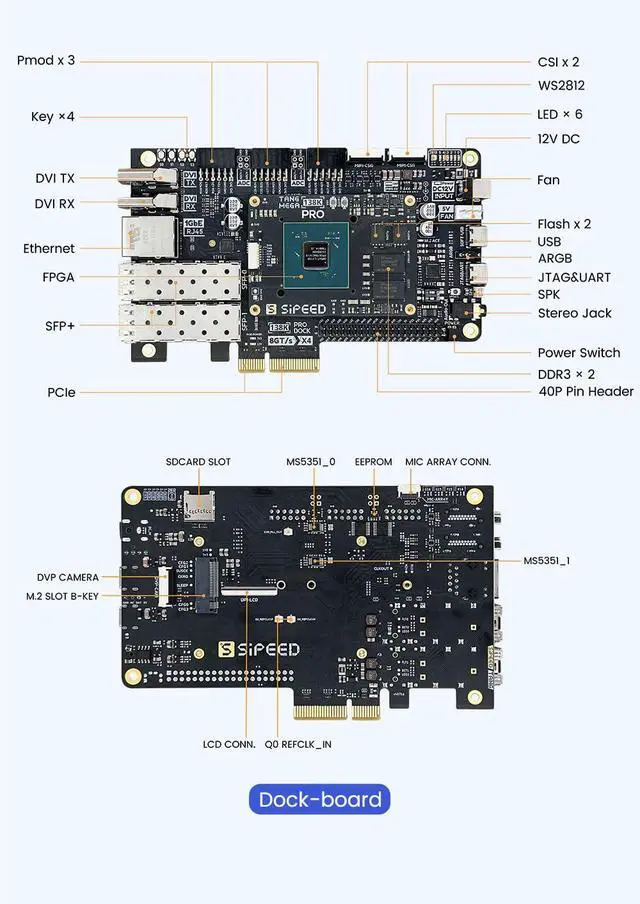

Tang Mega 138K Pro Dock development board kit uses GW5AST FPGA as the main controller chip, the chip has 138240 LUTs and REGs, and a series of resources such as 12 PLLs to meet a variety of functional requirements, integrated 800MHz RISC-V hardcore processor, and BTB connectors to connect with the backplane.. The Tang Mega 138K Pro Dock single board computer is equipped with Gigabit Ethernet, SFP+ and PCle interfaces, which are suitable for learning and verifying high speed FPGA communication. It is also equipped with multiple camera interfaces and display interfaces, which can be easily used for image acquisition and display.

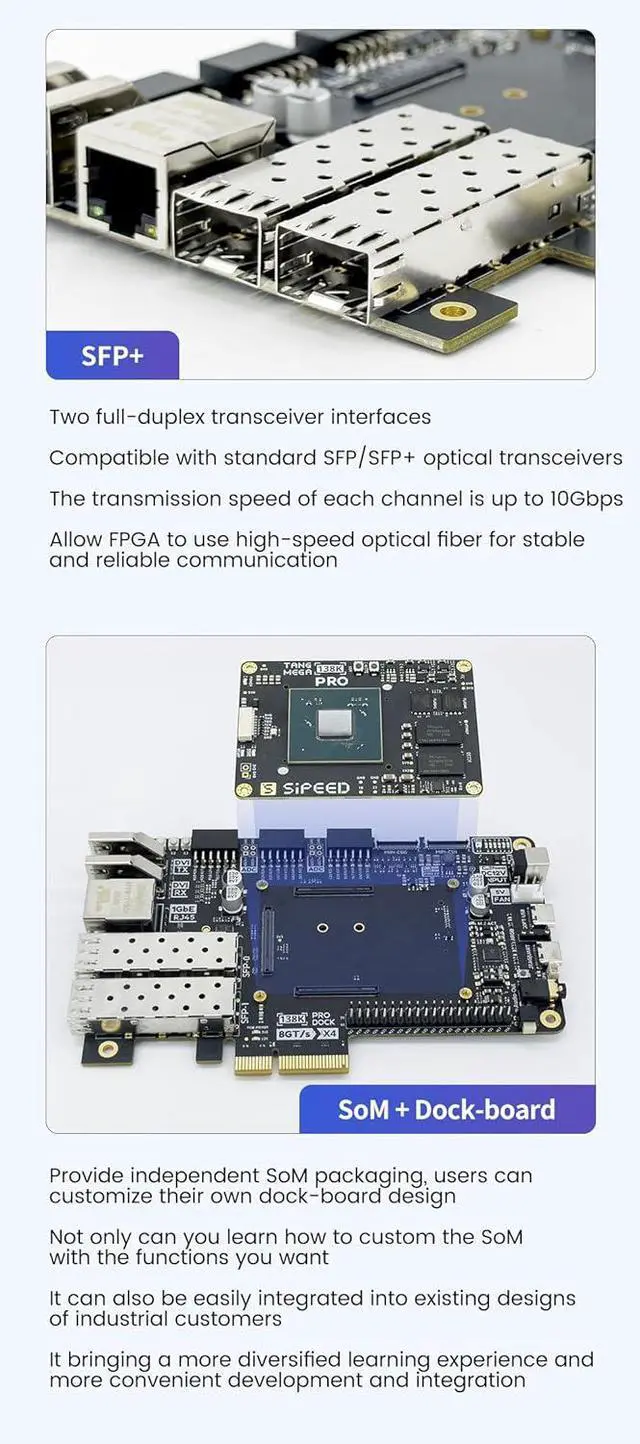

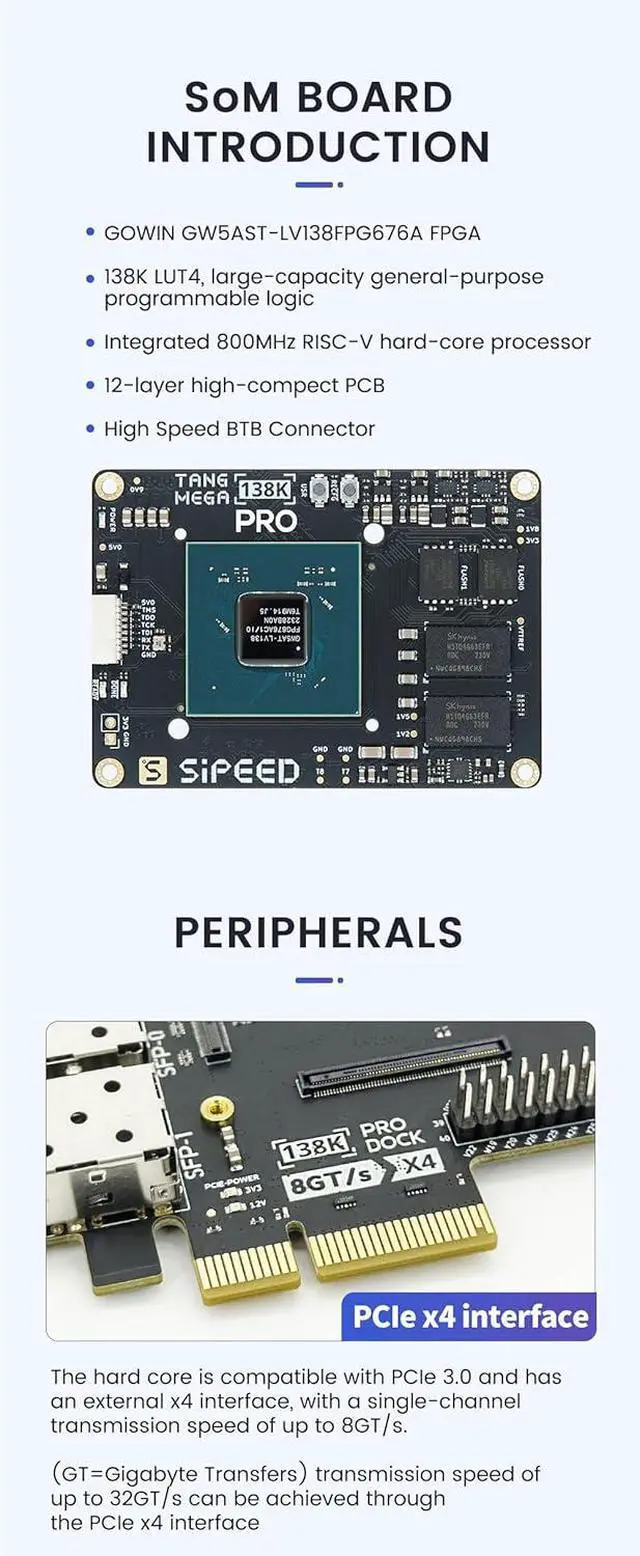

. Tang Mega 138K Pro Dock single board computer on board rich peripheral interfaces, hard-core compatible with PCle 3.0 external lead x4 interface, a single transmission rate of up to 8GT / s (GT = Gigabyte Transfers), through the PCle x4 interface can realize up to 32GT / s high-speed data transfer. The core board measures 50mm x 70mm.. Tang Mega 138K Pro Dock development board can be connected to the standard SFP/SFP + fiber optic transceivers, each way the transmission rate of up to 10Gbps, so that FPGAs can also use high-speed fiber optic communication for stable and reliable, suitable for high-speed communications, protocol conversion, high-performance computing and other occasions.
