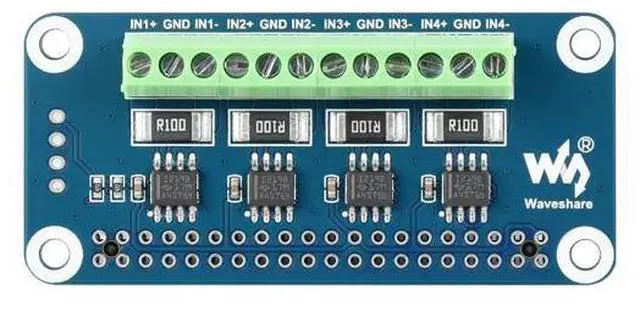

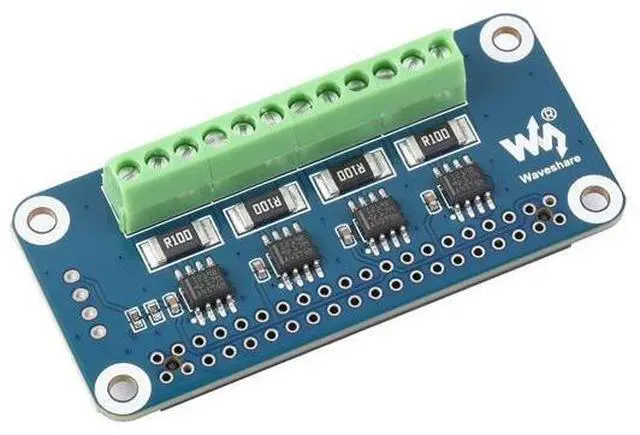

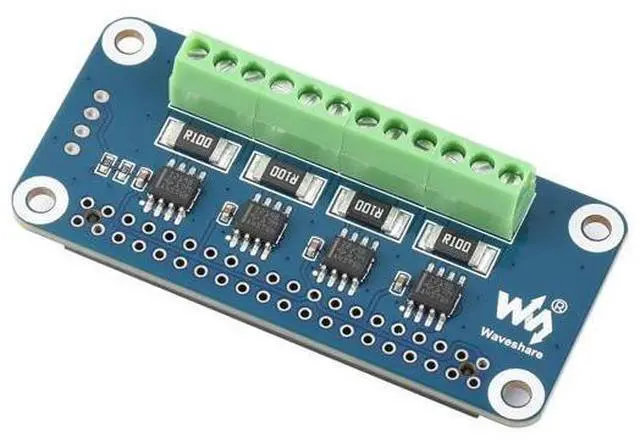

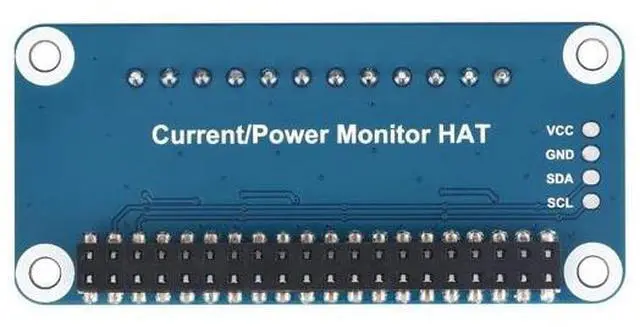

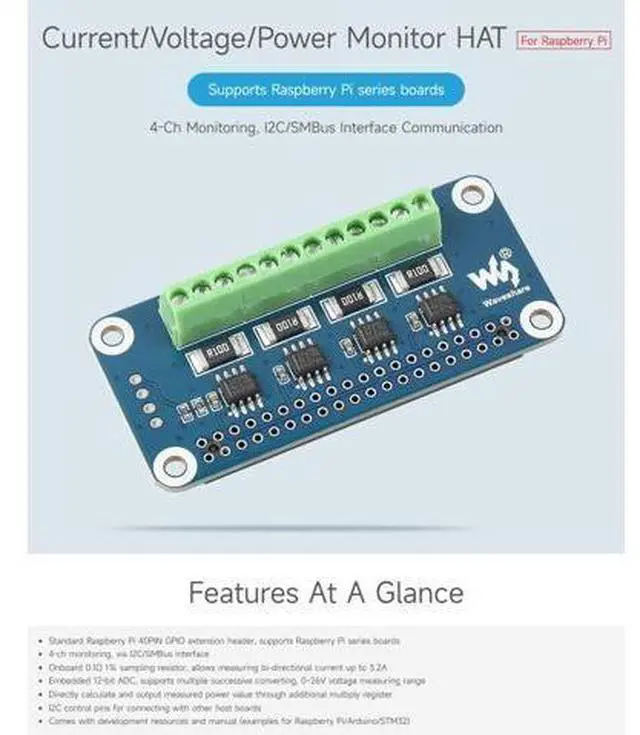

4-ch Current/Voltage/Power Monitor HAT for Raspberry Pi with I2C/SMBus Interface
- 1.Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. 4-ch monitoring, via I2C/SMBus interface
- 2.Onboard 0.1 1 sampling resistor, allows measuring bi-directional current up to 3.2A
- 3.Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range
- 4.Directly calculate and output measured power value through additional multiply register. I2C control pins for connecting with other host boards
- 5.Comes with development resources and manual (examples for Raspberry Pi/STM32)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. 4-ch monitoring, via I2C/SMBus interface
2. Onboard 0.1 1 sampling resistor, allows measuring bi-directional current up to 3.2A
3. Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range
4. Directly calculate and output measured power value through additional multiply register. I2C control pins for connecting with other host boards
5. Comes with development resources and manual (examples for Raspberry Pi/STM32)
2. Onboard 0.1 1 sampling resistor, allows measuring bi-directional current up to 3.2A
3. Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range
4. Directly calculate and output measured power value through additional multiply register. I2C control pins for connecting with other host boards
5. Comes with development resources and manual (examples for Raspberry Pi/STM32)
