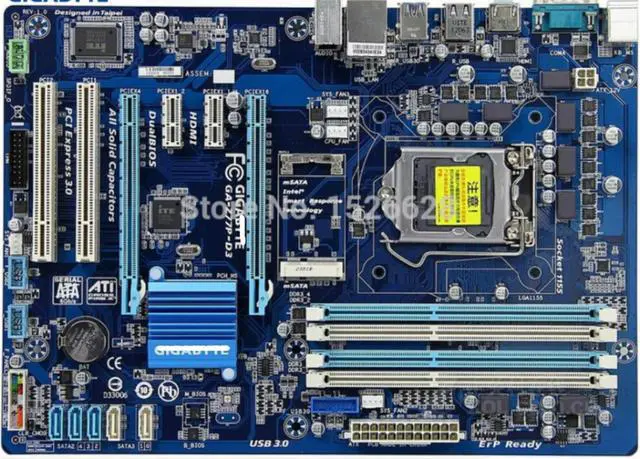

Giga GA-Z77P-D3 original mainboard PC DDR3 LGA1155 boards USB3.0 32GB Z77P-D3 Z77 Desktop Motherboard

Bundle:Motherboards
Quality Certification:ce
Chipset:Intel Z77
Socket Type:LGA 1155
Storage Interface Type:U.2
Item Condition:
Onboard LAN:1x RJ45
Package:No
Model Number:GA-Z77P-D3
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:32 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR3
Usage Scenario:Office
Number of PCI:0
PCI - E standards:PCI - E 4.0
Origin:CN(Origin)
Memory channel:Double
Form Factor:ATX

GA-Z77P-D3 DDR3 LGA1155 boards USB3.0 32GB Z77P-D3 Z77 Desktop Motherboard
This motherboard is , about  90%
100% tested it is working well before shipping
maybe without CMOS battery for air transport.
Packing: motherboard with I/O shield back plate and sata cable.
GA-Z77P-D3 detailed parameters
Motherboard chipset
Processor Specifications
Memory Specifications
Expansion Slots
I / O interface
Plate
Software Management
Other parameters
Motherboard Accessories
Warranty Information
Motherboard chipset
Integrated chip card / card
Chip makers Intel
Main Chipset Intel Z77
Describe the use of Intel Z77 chipset chipset
Audio chip Realtek ALC887 8-channel audio chip
Atheros AR8151 LAN chip onboard Gigabit Ethernet
Processor Specifications
Intel CPU platform
CPU Type Core i7 / Core i5 / Core i3 / Pentium / Celeron
CPU socket LGA 1155
Description Support Intel 22nm CPU processors
Supports a number of CPU
Memory Specifications
Memory Type DDR3
4 × DDR3 DIMM memory slots
The maximum memory capacity of 32GB
Memory description support dual channel DDR3 2400 (OC) / 1600/1333 / 1066MHz memory
Expansion Slots
PCI-E 3.0 graphics slot standard
PCI-E slot 1 × PCI-E X16 slot
1 × PCI-E X4 slot
2 × PCI-E X1 slot
PCI slot 2 × PCI slots
SATA interface 3 × SATA II interface; 2 × SATA III interface
I / O interface
USB interface 8 × USB2.0 interface (4 built-+4 back); 3 × USB3.0 interface (a built-in back +2)
HDMI interface 1 × HDMI interface
PS / 2 port PS / 2 mouse, PS / 2 keyboard port
Serial 1 Parallel port
Other interfaces 1 × RJ45 network interface
Audio Interface
Plate
Mainboard ATX form
Dimensions 30.5 × 21.5cm
