PCIe 4X NVMe U.2 SSD Adapter PCI-Express to SFF-8643 with SFF-8639 Gen3/4 MiniSAS Cable UEFI WIN10 Support PCIE3.0

Type:Cable Adapter
Model Number:IO-PCE4X-U2
Products Status:STOCK
Package:No

PCIe 4X NVMe U.2 SSD Adapter PCI-Express to SFF-8643 with SFF-8639 MiniSAS Cable
Specifications

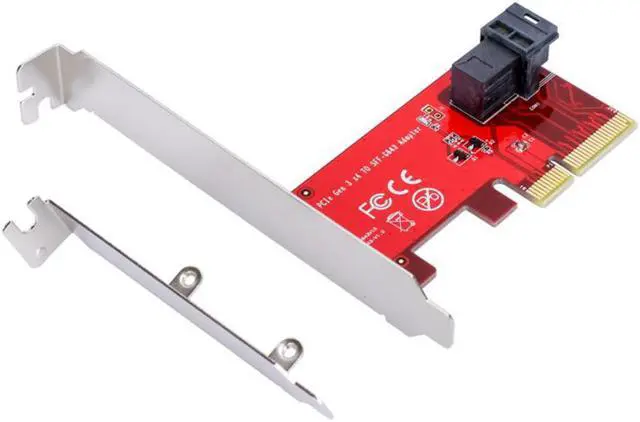

This SFF-8643 PCIe 4X adapter is designed for connecting the high performance 2.5" NVMe U.2 (SFF-8639) SSD to a PCIe 4-lane slot in a system via a SFF-8643 cable. The U.2 SSD could in loaded onto a backplane that has the SFF-8643 connector to interface with Adapter, allowing the U.2 SSD to be used like a drive cartridge.
Feature:
Buit-in SFF-8643 plug connector
D1 ON indicate the card adapter Ready
Allow 2.5" NVMe U.2 (SFF-8639) SSD to connect to system via SFF-8643 cable
Maximum throughput:
32 Gbps when installed into a PCIe 3.0 4-lane slot
16 Gbps when installed into a PCIe 2.0 4-lane slot
8 Gbps when installed into a PCIe 1.0 4-lane slot
No drivers required for this converter
Industrial operating temperature: -40 °C to + 85 °C
OS requirement for NVMe SSD: Windows 10, Windows 7 and Windows server 2008 R2
PCI Express Base Specification Rev 3.0
SFF -8643 Min SAS HD Version 3.5
PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
NVM Express 1.0
Compatible with PCIe 3.0, 2.0 or 1.0
Operating Humidity: 5% - 95% (non condensing)
RoHS compliant
Operating System Support:
Windows 7/8/8.1/10 64 bit
UEFI 2.3.1 or later
Package Included
1 x PCIe to U.2 (SFF-8643) Gen3/4 -Lane Card
1 x SFF-8643 to SFF-8639 MiniSAS Cable(100cm)
1 x Low Profile Bracket
1 x User Manual
