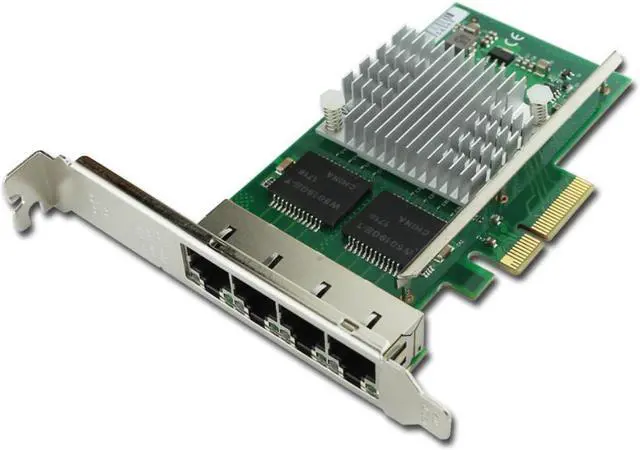

WYI350-T4V2 PCI-E X4 RJ45 Qual Port Server Gigabit Ethernet 10/100/1000Mbps Network Interface Card For i350-T4 NIC

Transmission Rate:10/100/1000Mbps
Certification:NONE
Origin:CN(Origin)
Kind:Internal
Type:Wired
Lan Transmission Rate:1000M Ethernet
Application:Desktop
Adapter Socket:PCI-e
Interface Type:PCI Express
Package:No
Applicable Network Type:Gigabit Ethernet
Model Number:PCI-E 10/100/1000M Gigabit Ethernet Network LAN
is_customized:Yes
Products Status:Stock
Frequency Range:Single frequency (2.4-2.4835GHz)

Performance Features:
16 Transmit and 16 Receive queues per port
Up to 16 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
Support PCI-SIG Single-Root I/O virtualization Rev 1.1.
Support for up to 8 virtual function ( VFs)
Partial replication of PCI Configuration space
Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port
Support Direct Cache Access (DCA)
Support Intel I/O Acceleration Technology v3.0.
TSO interleaving for reduced latency
Minimized device I/O interrupts using MSI and MSI-X
UDP, TCP and IP checksum offload
UDP and TCP transmit segmentation offload (TSO). machine
SCTP receive and transmit checksum offload
Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation
EEE ( IEEE 802.3az) for reduced power consumption during low link utilization periods
Copper Gigabit Ethernet 1000Base-T :
Independently copper Gigabit Ethernet channels support four Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T)
Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation
Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex.
RJ-45 female connectors
Common Key features:
Support PCI Express Base Specification 2.1 (5 GTs)
High performance, reliability, and low power use in Intel i350 Quad integrated MAC + PHY and SERDES chip Controllers
Ultra deep, packet buffer per channel lowers CPU utilization
Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
Server class reliability, availability and performance features:
Link Aggregation and Load Balancing
Priority queuing 802.1p layer 2 priority encoding
Virtual LANs 802.1q VLAN tagging
Jumbo Frame (9.5KB)
802.x flow control
Multicast/ broadcast Packet replication
Supports Vital Product Data (VPD)
LEDs indicators for link/Activity/Speed statu
