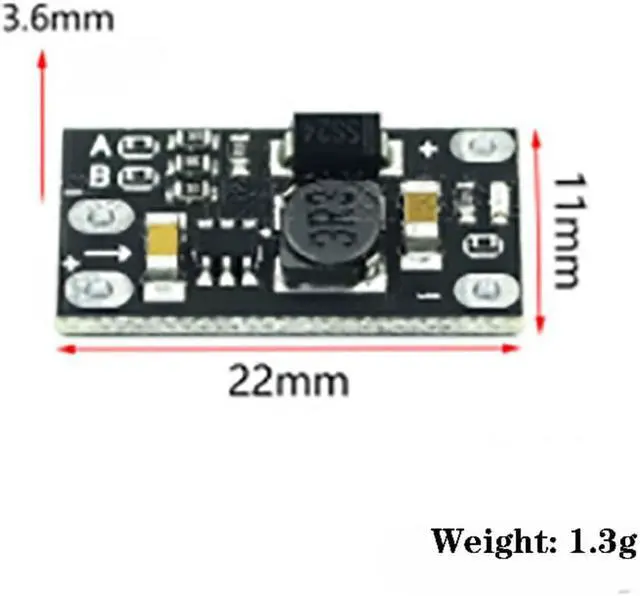

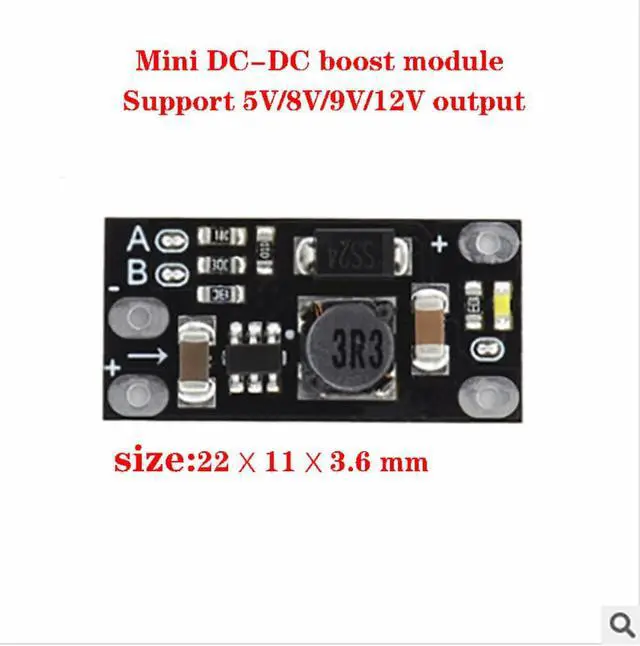

5PCS Mini DC-DC Boost Step Up Converter 3V 3.2V 3.3V 3.7V 5V 9V to 12V Voltage Regulator PCB Board Module can set 5V/ 8V/ 9V
- 5PCS Mini DC-DC Boost Step Up Converter 3V 3.2V 3.3V 3.7V 5V 9V to 12V Voltage Regulator PCB Board Module can set 5V/ 8V/ 9V
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number:LYR0057
Origin:Mainland China
Parameters:
1. The output voltage can be set to 5V/8V/12V, the default is 12V
2. Input voltage range: 2.5V~VOUT. The input voltage must be lower than the set output voltage
3. Output capacity: when input with 3.7V lithium battery, it can output 5V1A, 8V0.5A,9V0.45A, 12V0.3A
4. When using 5V input, it can output 8V0.7A, 9V0.7A, 12V0.5A
5. When the default output is 12V, the LED indicator consumes about 1mA.
6. If the indicator light is turned off, the input current is 1mA when no load
Origin:Mainland China
Parameters:
1. The output voltage can be set to 5V/8V/12V, the default is 12V
2. Input voltage range: 2.5V~VOUT. The input voltage must be lower than the set output voltage
3. Output capacity: when input with 3.7V lithium battery, it can output 5V1A, 8V0.5A,9V0.45A, 12V0.3A
4. When using 5V input, it can output 8V0.7A, 9V0.7A, 12V0.5A
5. When the default output is 12V, the LED indicator consumes about 1mA.
6. If the indicator light is turned off, the input current is 1mA when no load
