Bluetooth 5.0 MP3 Decoder Decoding Board Module Wireless Car USB MP3 Player WMA WAV TF Card / USB / FM Remote Board Module

WIFI:No
DSP:-
DAC:-
Dimensions (WxHxD):-
Body Material:Plastic
Bluetooth:Yes
Supports EBook Reading:No
Operation Mode:Touch Tone
Storage Type:Flash Memory
Have Speakers or not:No
Supports FM:Yes
Battery Specification:External Power
Signal Noise Ratio:89dB
Supports Recording Function:No
Display Size:None
Package:No
Function:FM Radio,bluetooth
Model Number:-
Style:Car MP3
Battery Life:> 20 hours
Screen:Yes
Balanced Out:No
External Memory:Yes
Audio Format Support:MP3, WAV
Origin:Mainland China
Certification:NONE

Description:
With bluetooth audio receiver module, when cell phone and bluetooth module matching contion, the MP3 or nondestructive APE files via bluetooth sent to the product of the bluetooth receiver module to play, which has greatly helped the function of the product and entertainment. This product also be like ordinary MP3 decoder board,play U disk or TF card MP3 files, as well as the radio broadcast.

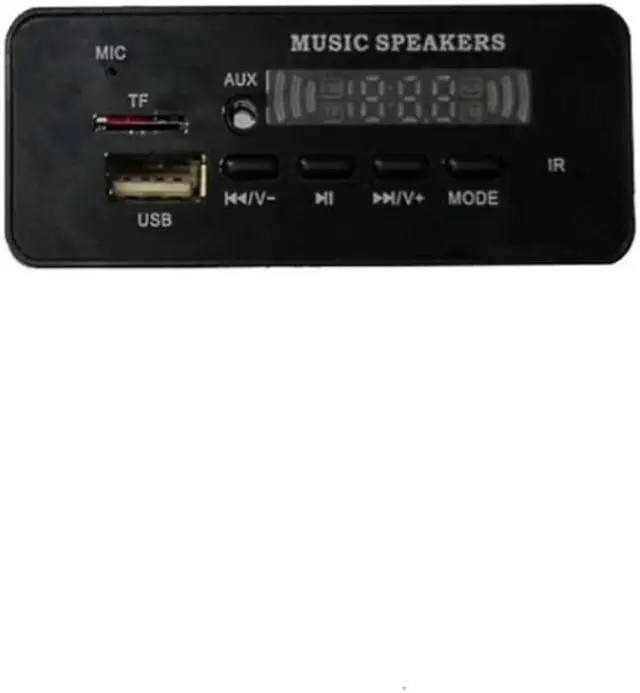

Functions:
USB: Connect USB flash drive (maximum support 32GB)
LED color screen: digital screen display, showing red Infrared receiving module
TF: Connect TF memory card (maximum support 32GB)
AUX: audio input interface
VOL-: Short press is to select the previous song; long press is to decrease the volume
PLAY/PAUSE: Short press is the switch between pause and play; long press is the FM FM automatic station
VOL+: Short press is to select the next song; long press is to increase the volume
MODE: Switching of USB/TF/FM/LINE IN/BLUETOOTH
Parameters:
Main control IC: AC6926
Bluetooth IC: AC6926 Bluetooth version is version 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format music
Power: 2*3W, connect 2 3W speakers
Radio FM frequency: 87.5-107.5 MHZ
Support function: Support MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control/DC 12V
Recording Function:
1. Press and hold the MODE button to start recording. Press and hold the MODE button again to cancel the recording function.
2. Press and hold the PLAY/PAUSE button to play the recording file.
3, when recording, you need to connect a storage device, such as: U disk or TF card

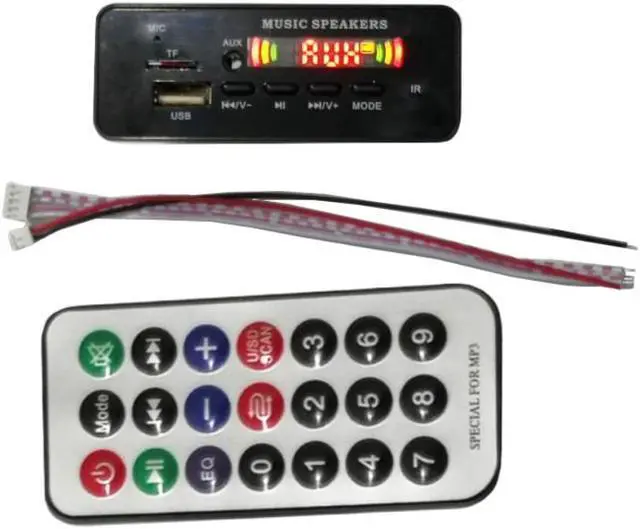

Packing List:
1*Bluetooth 5.0 12V MP3 WMA Decoder Board
