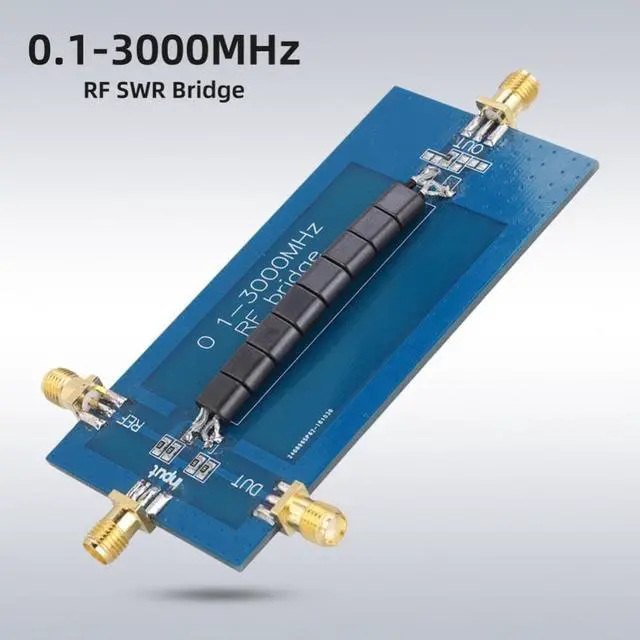

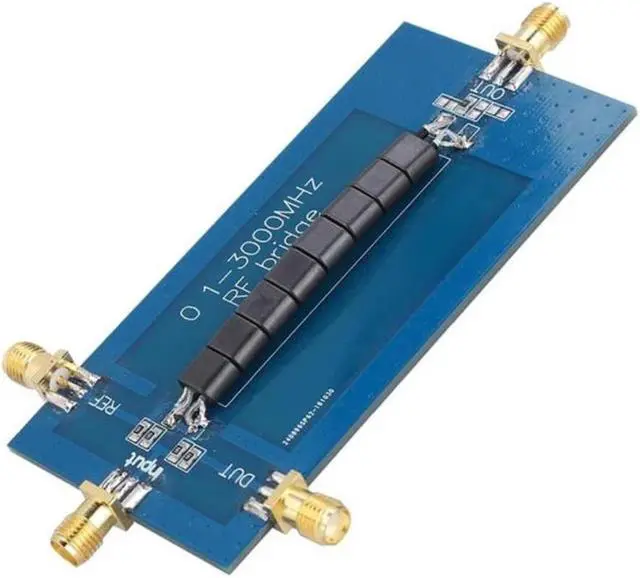

Shock-proof High-quality 0.1-3000MHz Standing Wave Ratio Bridge Low Power Consumption for Modification

Type:Other
Origin:Mainland China,Mainland China
Certification:NONE

Important Information
Material:Plastic, Metal
Package Size:
4.5cm x 9cm/1.77" x 3.54" (Approx.)
Overview:
The standing wave bridge has long service time because it is hard and wear-resistant.
Stable performance of the standing wave bridge can be realized by its fine workmanship.
Made of metal and plastic, the standing wave bridge is hard and durable to use.
The length of the standing wave bridge is 4.5cm and width is 9cm.
The standing wave bridge can be used to measure through mode filters, amplifiers and reflection mode antennas, impedance, inductance, capacitance and impedance matching. It can be used with for HiQSDR or SDR transceivers, N2ADR software and NWT series USB RF analyzers.
Note:
Due to the light and the screen setting difference, the item's color may slightly differs from the pictures.
Please allow slight dimension difference due to the manual measurement.
Specifications:
Color: Blue
Working Frequency: 0.1-3000MHZ
Return Loss: 35dB
Connector: SMA
Features: High Performance, Shock-proof, Indeformable
Package Content:
1 x Standing Wave Bridge(Others Not Included)
