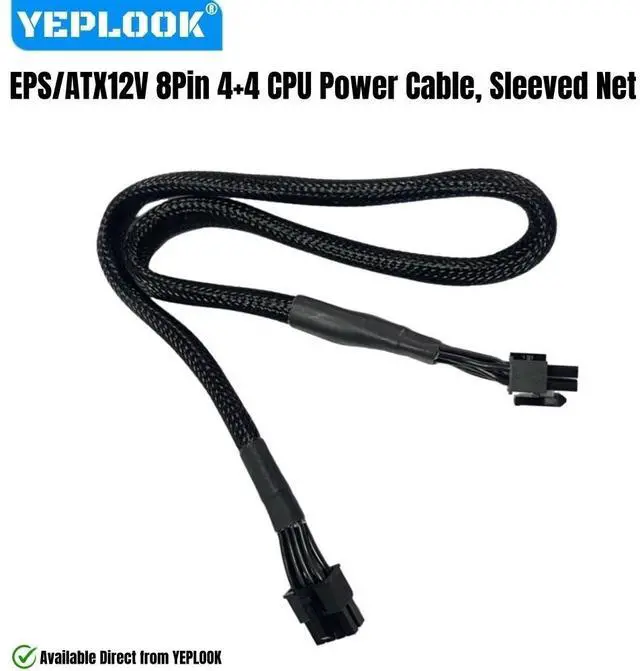

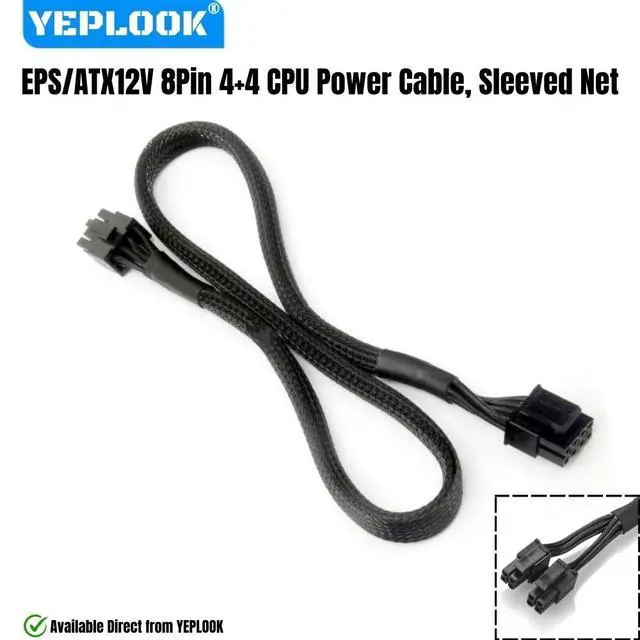

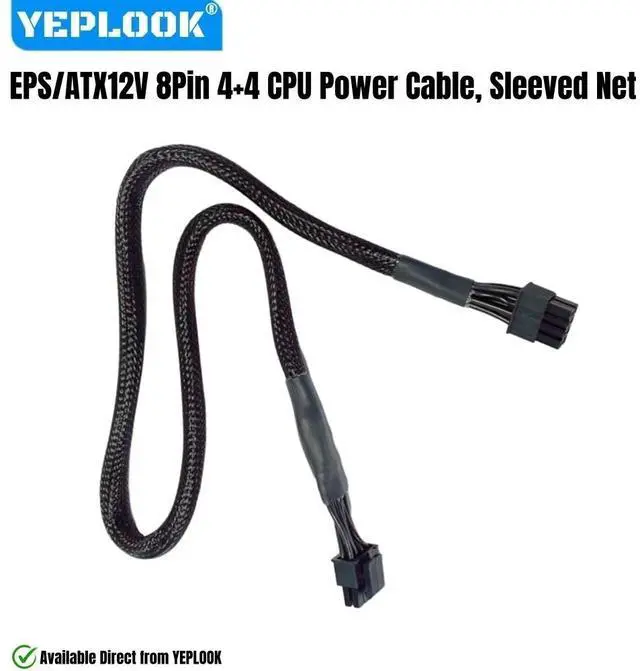

YEPLOOK CPU Power Cable 8Pin to 8Pin 4+4Pin Sleeved Net EPS/ATX12V for Corsair HX1200, HX1000, HX850, HX750 PLATINUM Modular, 18AWG 60CM/23.62inch/1.97ft.

YEPLOOK CPU Power Cable 8Pin to 8Pin 4+4Pin Sleeved Net EPS/ATX12V for Corsair HX1200, HX1000, HX850, HX750 PLATINUM Modular, 18AWG 60CM/23.62inch/1.97ft.

*YEPLOOK Mod Expert Store Pre-Purchase Notes:

1. All images are for reference only. If you need, please contact us for real photos.

2. Please check compatibility before you buy, mix use cables may cause damage.

3. Not work with GPU graphics card. PSU 8Pin and CPU 8Pin 4+4Pin cannot be used interchangeably.

4. We are responsible for quality inspection and customer support of cables sold direct from YEPLOOK.

Do not mix use cables between different brands or models. If your modular power is not listed, please check compatibility with us to ensure proper installation.

This Single CPU power cable is compatible with Corsair HX series modular powers. Such as HX1200 Platinum, HX1000 Platinum, HX850 Platinum, HX750 Platinum, HX1050 Gold, HX850 Gold, HX750 Gold, HX750 Gold, HX650 Gold Type 3 & Type 4 power supplies.

Not for Corsair AX1200 Gold.

Not for Corsair Type 2 AX850 Gold, AX750 Gold, AX650 Gold.

Not for Corsair Type 5 modular powers.

Not for RM850x SHIFT.

Not for modular powers of other brands and models.

Description

Brand: YEPLOOK

Interface: PSU 8Pin to CPU 8Pin 4+4Pin

Cable Length: about 60CM / 23.62 inch / 1.97 ft.

Cable Gauge: 18AWG standard tinned copper wire with premium nylon sleeved net.

Package List: 1x Single 8Pin 4+4Pin CPU Power Cable for Corsair HX Platinum series modular powers.

Advantages

1. Soft cable is suitable for chassis wiring. Easy to bend with good cable management.

2. FLEXIBLE & DURABLE to prevent corrosion and provide a long lifespan.

3. Fully compatible with Corsair Type 3 & Type 4 modular power supply units.

4. The 4Pin CPU cable can supply up to 155 watts & the 8-pin CPU cable can supply up to 235 watts.

How to Connect?

PSU 8Pin male plug into the power supply side. (8Pin male connector is ATX 8 pin, not PCI-e 8 pin. )

CPU 8Pin (4+4Pin) male plug into the Motherboard side. (EPS 4+4Pin used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )

This CPU power cable use an 8-pin EPS12v. CPU cable can be split into two 4-pin connectors. If you want to connect into a 4-pin EPS motherboard port, pull the two halves of the connector apart and connect one half into the motherboard port.
