YEPLOOK CPU Power Cable PSU 8Pin to 2x 8Pin (4+4) for Corsair CS850M, CS750M, CS650M, CS550M, CS450M CS-M Type 3 Modular Powers

YEPLOOK CPU Power Cable PSU 8Pin to 2x 8Pin (4+4) for Corsair CS850M, CS750M, CS650M, CS550M, CS450M CS-M Type 3 Modular Powers

*YEPLOOK Store Pre-Purchase Notes
1. The photos are for display only, please contact us for real photos if you need.
2. Please check compatibility before you buy, mix use cables may cause damage.
3. We are responsible for quality inspection and customer support of cables sold direct from YEPLOOK.

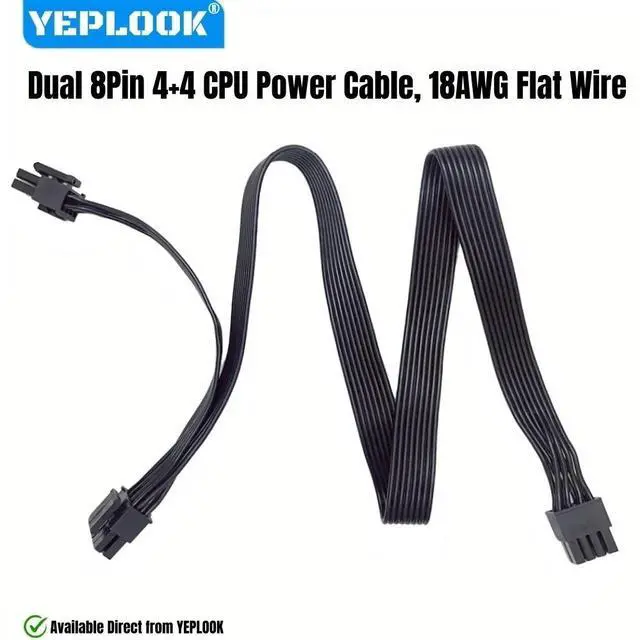

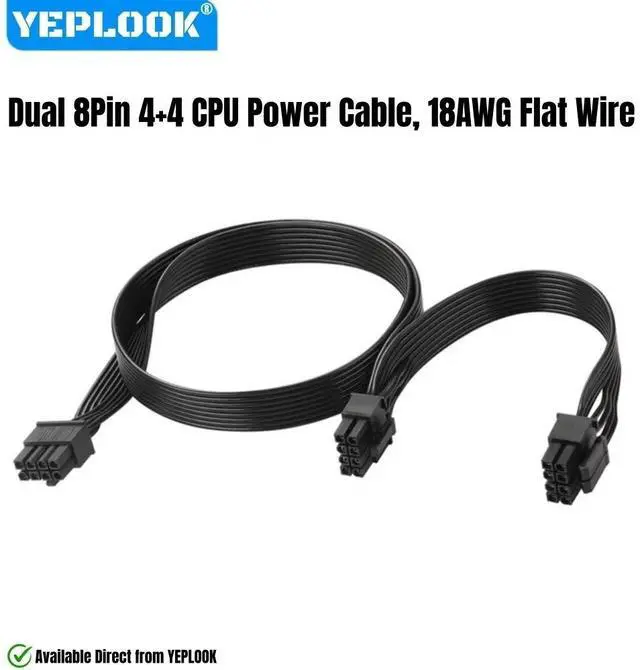

This 2x 8Pin 4+4Pin Dual CPU Power Cable is compatible with Corsair CS-M GOLD Semi modular powers. Such as CS850M, CS750M, CS650M, CS550M, CS450M 80 PLUS Gold Type 3 Modular Power.

Not for Corsair AX1200 Gold.
Not for Corsair Type 2 AX850 Gold, AX750 Gold, AX650 Gold.
Not for Corsair Type 5 modular powers.
Not for modular powers of other brands and models.
Do not mix use cables between different brands or models. If your modular power is not mentioned, please check compatibility with us to ensure proper installation.

Description
Brand: YEPLOOK
Interface: PSU 8Pin to Dual CPU 8Pin 4+4Pin

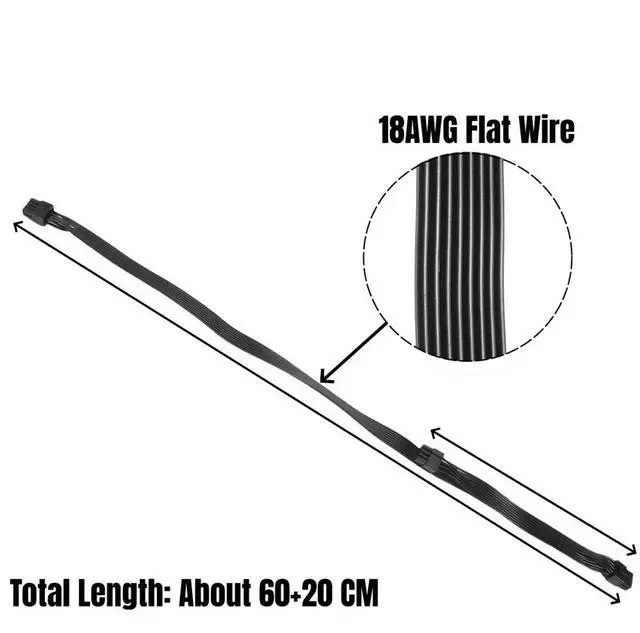

Cable Length: about 70cm / 27.56 inch / 2.3 ft.
Cable Gauge: 18AWG standard tinned copper wire.
Package List: 1x EPS/ATX12V Dual CPU Power Cable for Corsair CS-M series modular powers.

Advantages
1. Flat Soft cables are suitable for chassis wiring. Easy to bend with good cable management.
2. FLEXIBLE & DURABLE to prevent corrosion and provide a long lifespan.
3. Fully compatible with Corsair Type 3 & Type 4 modular power supply units.

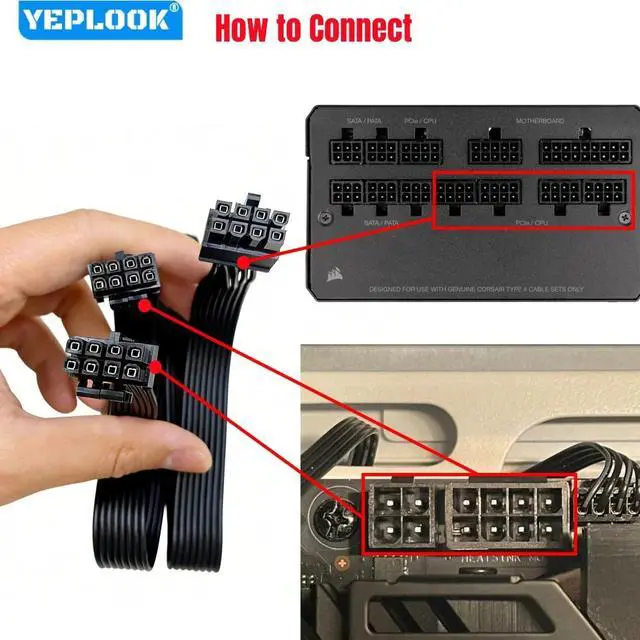

How to Connect?
PSU 8Pin male plug into the power supply. (8Pin male connector is ATX 8 pin, not PCI-e 8 pin. )
CPU 8Pin (4+4Pin) male plug into motherboard. (EPS 4+4Pin used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )

This CPU power cable use an 8-pin EPS12v. CPU cable can be split into two 4-pin connectors. If you want to connect into a 4-pin EPS motherboard port, simply pull the two halves of the connector apart and connect one half into the motherboard port.
