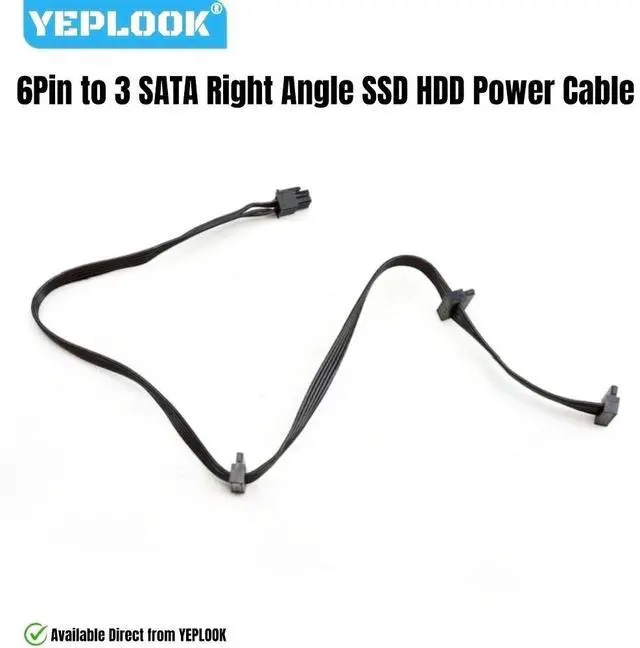

YEPLOOK 6Pin to 3x SATA Right Angle, HDD SSD Power Cable for Corsair HX HX-i AX-i RM RM-i RM-x RM-e CS-M CX-M TX-M SF Modulars

YEPLOOK 6Pin to 3x SATA Right Angle, HDD SSD Power Cable for Corsair HX HX-i AX-i RM RM-i RM-x RM-e CS-M CX-M TX-M SF Modular Powers, 18AWG 50+15+15CM

*YEPLOOK Store Pre-Purchase Notes:

1. All images are for reference only. If you need to view real photos, please contact us.

2. An empty hole on 6Pin connector, which is default pin layout. Because SATA is 5-wire powered.

3. We are responsible for quality inspection and customer support of cables sold direct from YEPLOOK.

Description

Brand: YEPLOOK
Interface: 6Pin to 3 Port SATA Male Right Angle
Cable Length: about 50+15+15 CM
Cable Gauge: 18AWG standard tinned copper wire.
Advantages: Soft ribbon flat cables with good cable management. Easy to bend, suitable for chassis wiring. Tinned copper wires are good to prevent corrosion and provide a long lifespan.
Package List: 1 Piece 6Pin to 3x SATA Right Angle SSD HDD Power Cable for Corsair Type 3 & Type 4 Modular Powers.

How to Connect?

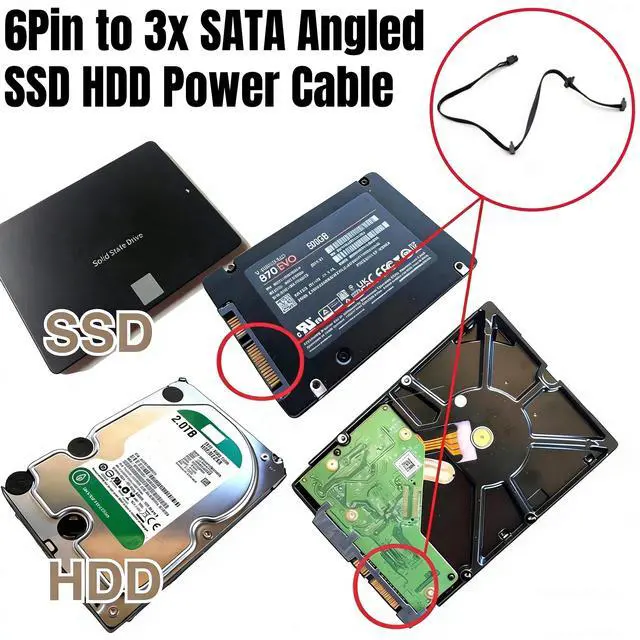

6Pin connector plug into modular power side. SATA connector plug into devices that need powered by SATA ports, Such as SSD, HDD Hard Disk Drive, Riser Cards, etc.

Compatibility about this 6Pin to 3x SATA HDD SSD power cable, which is fully compatible with Corsair TYPE 3 & TYPE 4 modular powers.

Compatible with Corsair Type 3 Modular Powers below:

For Corsair AX-i: AX1500i, AX1200i, AX860i, AX760i
For Corsair HX-i: HX1200i, HX1000i, HX850i, HX750i, HX650i, HX550i (Blue label)
For Corsair HX Gold: HX1050, HX850, HX750, HX650
For Corsair RM: RM1000, RM850, RM750, RM650, RM550, RM450 (Yellow label)
For Corsair CX-M: CX850M, CX750M, CX650M, CX600M, CX500M, CX450M, CX430M
For Corsair CX: CX750, CX650, CX600, CX550, CX500, CX450, CX430
For Corsair CS-M: CS850M, CS750M, CS650M, CS550M, CS450M
For Corsair TX-M: TX850M, TX750M, TX650M, TX550M

Compatible with Corsair Type 4 Modular Powers below:

For Corsair AX1600i, AX1000 Titanium, AX850 Titanium
For Corsair SF: SF750, SF600, SF450 (Not for SF850, SF1000)
For Corsair RM Gold: RM850, RM750, RM650, RM550, RM450 Gold (White label 2021 Version)
For Corsair RM-x: RM1000x, RM850x, RM750x, RM650x, RM550x (Not for RM-x Shift Version)
For Corsair RM-i: RM1000i, RM850i, RM750i, RM650i, RM550i
For Corsair RM-e: RM1200e, RM1000e, RM850e, RM750e
For Corsair HX Platinum: HX1200, HX1000, HX850, HX750 Platinum (White label)
For Corsair HX-i Platinum: HX1500i, HX1200i, HX1000i (White label Type 4 Version)

Not for Corsair AX1200 Gold.
Not for Corsair Type 2 AX850 Gold, AX750 Gold, AX650 Gold.
Not for Corsair Type 5 modular powers. Not for Corsair RM850x SHIFT. Not for Corsair SF850, SF1000.
Not for modular powers of other brands and models.

Mix using cables may cause damage. If your modular power is not listed above, please check compatibility with us to ensure proper installation.
