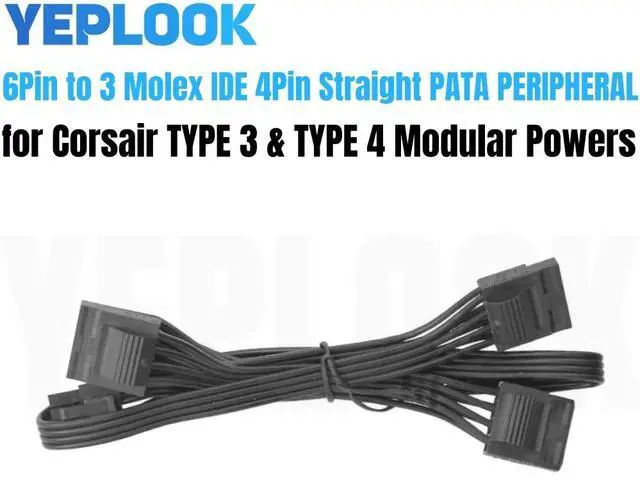

YEPLOOK 6Pin to 3 Molex 4Pin Straight, PATA PERIF IDE Power Cable for Corsair HX1200, HX1050, HX1000, HX850, HX750, HX650 Modular Powers, 50+15+15 CM 18AWG Tinned Copper Wire

YEPLOOK 6Pin to 3 Molex 4Pin Straight, PATA PERIF IDE Power Cable for Corsair HX1200, HX1050, HX1000, HX850, HX750, HX650 Modular Powers, 50+15+15 CM 18AWG Tinned Copper Wire

*YEPLOOK Store Purchase Notice:


1. All images are for reference only. If you need to check real photos, please contact us.

2. There are two empty pins on 6Pin connector, because molex IDE 4Pin only needs 4 wires for power supply. It is a normal correct pinouts, not a quality defect. There are 2 ways of wires are arranged on 6Pin, both are compatible with Corsair Modular PSUs as listed below.

3. We are responsible for quality inspection and customer support of cables sold direct from YEPLOOK Official Store.

Compatibility of this 6Pin to 3 Molex IDE 4Pin
Power Supply Cable:

This 6Pin to 3x Molex power cable is compatible with Corsair HX series modular powers.
Such as for Corsair HX1200 Platinum, HX1000 Platinum, HX850 Platinum, HX750 Platinum, HX1050 Gold, HX850 Gold, HX750 Gold, HX650 Gold modular powers.

Not for Corsair AX1200 Gold. Not for Corsair Type 2 AX850 Gold, AX750 Gold, AX650 Gold.
Not for Corsair Type 5 modular powers. Not for Corsair RM850x SHIFT, SF850, SF1000.
Not for modular powers of other brands and models.
Mix using cables may cause damage. Do not mix use cables between different brands or models. If your modular power is not listed above, please check compatibility with us.

Description

Brand: YEPLOOK
Port 1: 6 Pin Male Connector
Port 2: 3 Ports Molex IDE 4Pin Straight Connector
Cable Length: about 50+15+15 CM
Cable Gauge: 18AWG standard tinned copper wire
Package List: 1 Piece 6Pin to 3x Molex IDE 4Power Cable for Corsair HX GOLD & PLATINUM Type 3 & Type 4 Modulars.

Advantages


1. Tinned copper wire canprevent insulation rubber from sticky, black core brittle.

2. Flat Soft cables have a much greater flexibility allowing tighter folding and management of cables

3. Flexible & durable to prevent corrosion and provide a long lifespan.

How to Connect?

1. 6Pin connector plug into modular power side (only for Corsair some types of as listed below).

2. Molex 4Pin connector plug into devices with molex port, such as cooler fan, motherboard, floppy drive, disc drive, old optical drives ect.
