YEPLOOK Molex Power Cable for Corsair PSUs, 6Pin to 3x Molex IDE 4Pin for Corsair CS-M CX-M TX-M RM-i RM-x RM-e SF HX HX-i AX-i

YEPLOOK Molex Power Cable for Corsair PSUs, 6Pin to 3x Molex IDE 4Pin for Corsair CS-M CX-M TX-M RM-i RM-x RM-e SF HX HX-i AX-i Type 3 & Type 4 Modular Powers, 50+15+15 CM 18AWG Tinned Copper Wire

*YEPLOOK Store Purchase Guidelines:

1. All images are for reference only. Please contact us for real photos if you need.

2. Mix use cables may cause damage. Please check compatibility with us before you buy.

3. It is a correct pinouts that there are two empty holes on the 6Pin, as Molex only needs 4 wires to power.

4. We are responsible for quality inspection and customer support of cables sold direct from YEPLOOK.

Description

Brand: YEPLOOK
Port 1: 6 Pin Connector
Port 2: 4 x Molex IDE 4Pin Connector Right Angle
Cable Length: about 50+15+15 CM (about 20+6+6 inches)
Cable Gauge: 18AWG standard tinned copper wire.

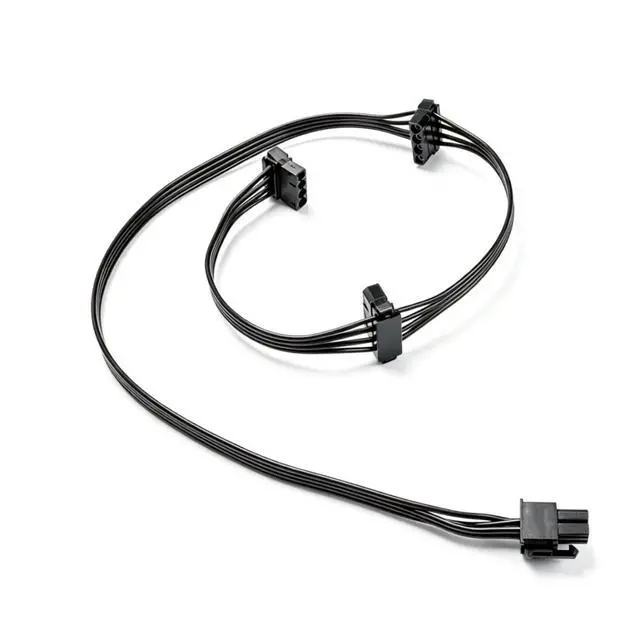

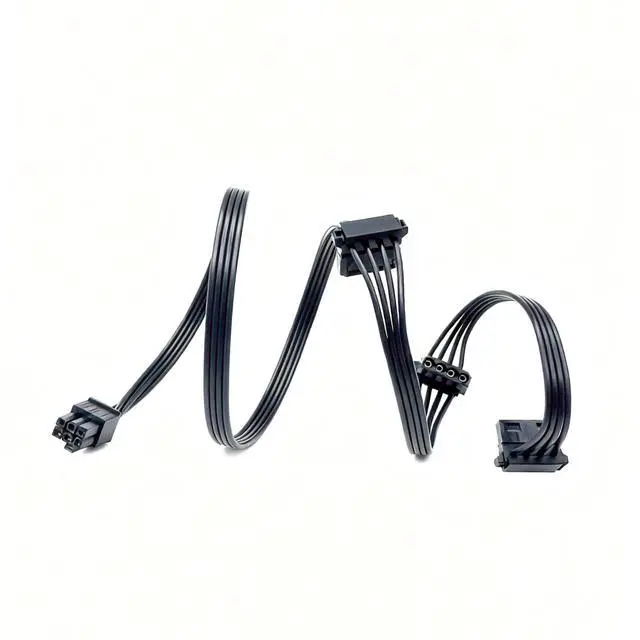

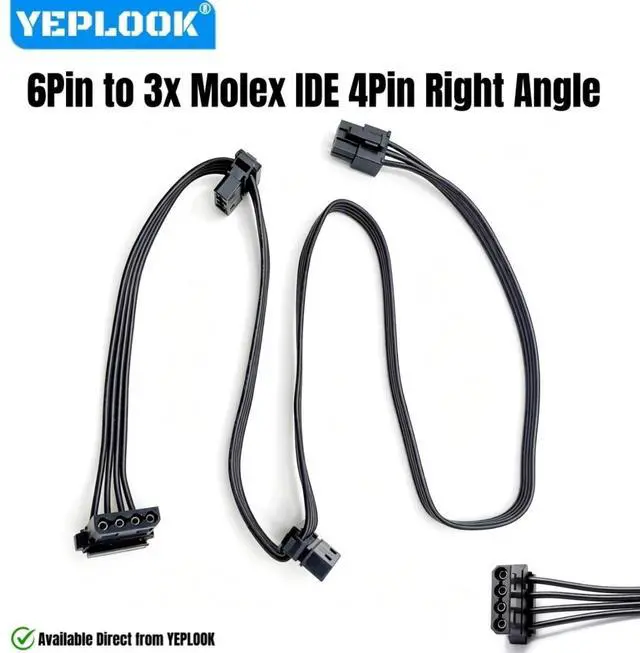

Package List: 1 Piece 6Pin to 3x Molex 4Pin Angled IDE Power Cable for Corsair Type 3 & Type 4 Modular Powers.

Advantages

1. 18AWG Tinned copper wire can prevent insulation rubber from sticky, black core brittle.

2. Flat Soft cables have a much greater flexibility allowing tighter folding and management of cables
3. FLEXIBLE & DURABLE to prevent corrosion and provide a long lifespan.

How to Connect?

1. 6Pin connector plug into modular power side (only for Corsair some types of as listed below)

2. Molex IDE 4Pin plug into devices with molex port, such as cooler fan, motherboard, floppy drive, disc drive, older optical drives, etc.

This 6Pin to 3 Molex IDE 4Pin Power Cable is fully compatible with Corsair Type 3 & Type 4 Modular Powers

Type 3:

For Corsair AX-i: AX1500i, AX1200i, AX860i, AX760i
For Corsair HX-i: HX1200i, HX1000i, HX850i, HX750i, HX650i, HX550i (Blue label)
For Corsair HX Gold: HX1050, HX850, HX750, HX650
For Corsair RM: RM1000, RM850, RM750, RM650, RM550, RM450 (Yellow label)
For Corsair CX-M: CX850M, CX750M, CX600M, CX500M, CX450M, CX430M
For Corsair CX: CX750, CX650, CX600, CX550, CX500, CX450, CX430
For Corsair CS-M: CS850M, CS750M, CS650M, CS550M, CS450M
For Corsair TX-M: TX850M, TX750M, TX650M, TX550M

Type 4:

For Corsair AX1600i, AX1000 Titanium, AX850 Titanium
For Corsair SF: SF750, SF600, SF450
For Corsair RM Gold: RM850, RM750, RM650, RM550, RM450 Gold (White label 2021 Version)
For Corsair RM-x: RM1000x, RM850x, RM750x, RM650x, RM550x (Not for RM-x Shift Version)
For Corsair RM-i: RM1000i, RM850i, RM750i, RM650i, RM550i
For Corsair RM-e: RM1200e, RM1000e, RM850e, RM750e
For Corsair HX Platinum: HX1200, HX1000, HX850, HX750 Platinum (White label)
For Corsair HX-i Platinum: HX1500i, HX1200i, HX1000i (White label Type 4 Version)

Not for Corsair AX1200 Gold.
Not for Corsair Type 2 AX850 Gold, AX750 Gold, AX650 Gold.
Not for Corsair Type 5 modular powers. Not for Corsair RM850x SHIFT, SF850, SF1000.
Not for modular powers of other brands and models.

Different modulars use different pinouts. Mix use cables may cause damage. If your modular is not listed, please check compatibility with us to ensure proper installation.
