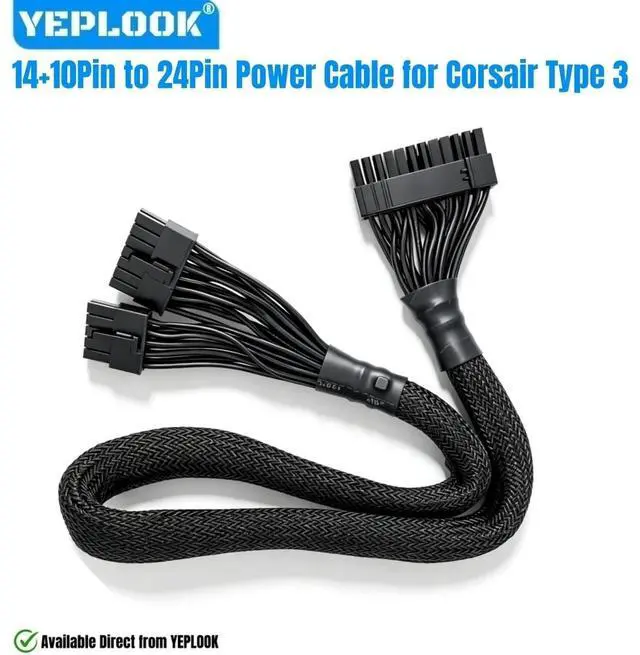

YEPLOOK 14+10Pin to 24Pin ATX Main Motherboard Power Cable for Corsair HX1200i, HX1000i, HX850i, HX750i, HX650i, HX-i Type 3 Modular Powers PSUs, 18AWG Sleeved Net 60CM / 23.62 inch / 1.97ft.

YEPLOOK 14+10Pin to 24Pin ATX Main Motherboard Power Cable for Corsair HX1200i, HX1000i, HX850i, HX750i, HX650i, HX-i Type 3 Modular Powers PSUs, 18AWG Sleeved Net 60CM / 23.62 inch / 1.97 ft.

*YEPLOOK Store Purchase Notes:


1. All images only for reference. For real photos, please ask fromour technical team.

2. The empty hole on 24Pin, which is normal default pinout design. Not quality defect.

3. We are responsible for quality inspection and customer support of cables sold direct from YEPLOOK.

Compatibility of this 14+10Pin to 24Pin
Motherboard Power Supply Cable:
This Type 3 24Pin Power Cable is only Compatible with Corsair HX1200i, HX1000i, HX850i, HX750i, HX650i Type 3 Modular Power Supply Units. (model number in blue color)

If your modular power is not listed above, please check compatibility with us to ensure proper installation and operation. Mix use cables may cause damage.

Not for Corsair AX860 Platinum, AX760 Platinum Type 1 Modular PSUs.
Not for Corsair AX850 Gold, AX750 Gold, AX650 Gold Type 2 Modular PSUs.
Not for Corsair AX1600i, AX1000, AX850 Type 4 Modular PSUs.
Not for Corsair Type 4 Modular PSUs.
Not for Corsair Type 4 RM GOLD 2021 Version Modular PSUs. (model number in white color)
Not for Corsair Type 4 HX Platinum Modular PSUs. Not for HX1200/HX1000/HX850/HX750 Platinum.
Not for Corsair HX1500i, HX1200i, HX1000i Platinum HX-i (2022) Modular Powers. (model number in white color)
Not for Corsair Type 4 RM-i/RM-x/RM-e/SF Series Modular PSUs.
Not for Corsair Type 5 Modular Powers. Not for Corsair RM850x SHIFT/SF850/SF1000 Modular PSUs.
Not for modular powers of other brands and models.

Description

Brand: YEPLOOK
Ports: 14+10Pin to 24Pin 20+4Pin (for Corsair Type 3), Not 18+10Pin (Not for Corsair Type 4)
Cable Length: about 60CM / 23.62 inch / 1.97 ft.
Cable Gauge: 18AWG standard tinned copper wire combined with high-quality nylon safety braided mesh, which features many tiny ventilation holes.
Package List: 1x 14+10Pin to 24Pin ATX Sleeved Net Main Power Cable for Corsair HX-i Series Type 3 Modular Powers.

Advantages:

1. 18AWG Tinned copper wire can prevent insulation rubber from sticky.

2. Soft sleeved cables are wieldy, have a greater flexibility allowing tighter folding and management.

3. Flexible & durable to prevent corrosion and provide a long lifespan.

How to Connect?

14+10Pin connector plug into modular power side. ATX 24Pin connector plug into motherboard side.
