PCIe Dual 8Pin 6+2, GPU Power Cable for Seasonic Prime Ultra 1300W, 1000W, 850W, 750W, 650W, 550W Titanium/Platinum/Gold Modular

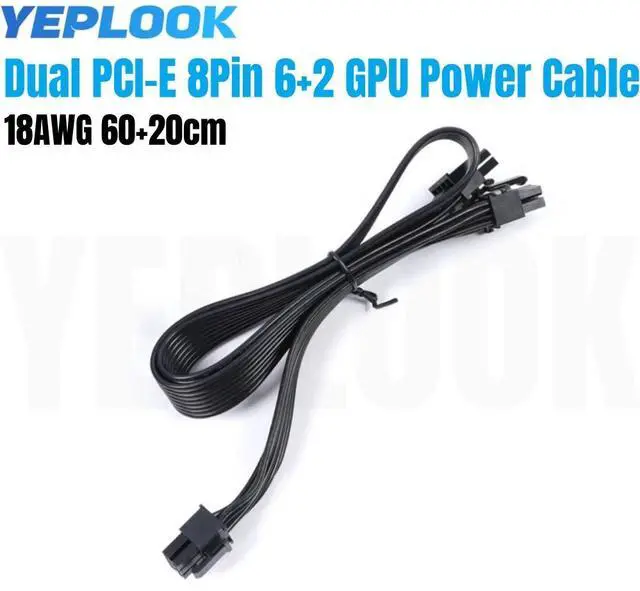

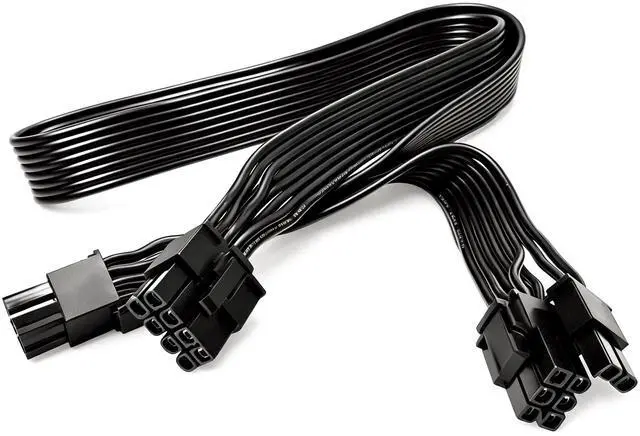

YEPLOOK PCIe Dual 8Pin 6+2, GPU Power Cable for Seasonic Prime Ultra 1300W, 1000W, 850W, 750W, 650W, 550W Titanium/Platinum/Gold Modular Powers, 18AWG Tinned Copper Wire, 60+20cm/ 23.6 + 7.8 inch/ 1.97 + 0.66 ft.

* YEPLOOK will test cables to ensure seamless connection and to avoid any pin issues.

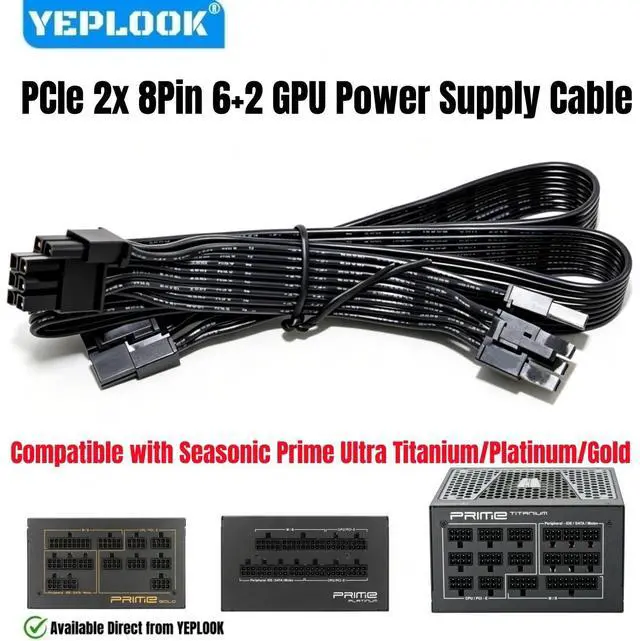

This PCIe Dual 8Pin 6+2 GPU Power Supply Cable is Only Compatible with Seasonic PRIME Ultra Titanium / Platinum /
Gold Series Modular Powers Below:

Compatible with Seasonic PRIME Ultra Titanium /
PRIME TX Series Modular Powers:
Model: SSR-1000TR (PRIME Ultra 1000 Titanium / PRIME TX-1000)
Model: SSR-850TR (PRIME Ultra 850 Titanium / PRIME TX-850)
Model: SSR-750TR (PRIME Ultra 750 Titanium / PRIME TX-750)
Model: SSR-650TR (PRIME Ultra 650 Titanium / PRIME TX-650)

Compatible with Seasonic PRIME Ultra Platinum /
PRIME PX Series Modular Powers:
Model: SSR-1000PD Active PFC F3 (PRIME Ultra 1000 Platinum / PRIME PX-1000)
Model: SSR-850PD Active PFC F3 (PRIME Ultra 850 Platinum / PRIME PX-850
Model: SSR-750PD Active PFC F3 (PRIME Ultra 750 Platinum / PRIME PX-750)
Model: SSR-650PD Active PFC F3 (PRIME Ultra 650 Platinum / PRIME PX-650)
Model: SSR-550PD Active PFC F3 (PRIME Ultra 550 Platinum / PRIME PX-550)

Compatible with Seasonic PRIME Ultra Gold /
PRIME GX Series Modular Powers:
Model: SSR-1300GD Active PFC F3 (PRIME 1300 Gold / PRIME GX-1300)
Model: SSR-1000GD Active PFC F3 (PRIME Ultra 1000 Gold / PRIME GX-1000)
Model: SSR-850GD Active PFC F3 (PRIME Ultra 850 Gold / PRIME GX-850)
Model: SSR-750GD² Active PFC F3 (PRIME Ultra 750 Gold / PRIME GX-750)
Model: SSR-650GD² Active PFC F3 (PRIME Ultra 650 Gold / PRIME GX-650)
Model: SSR-550GD² Active PFC F3 (PRIME Ultra 550 Gold / PRIME GX-550)

Not Compatible with modulars of other brands and models. DO NOT mix use power cables between different brands and models. It may cause damage. Please check compatibility with us to ensure proper installation and operation.

* Not Compatible with Seasonic Old Versions of
Modular Powers Below:
* Not Compatible with Seasonic X Series: SS-650KM, SS-750KM, SS-560KM, SS-660KM, SS-760KM, SS-850KM, SS-1050XM, SS-1250XM.
* Not Compatible with Seasonic P Series: SS-1000XP, SS-860XP.
* Not Compatible with Seasonic FL Series: SS-400FL, SS-460FL.

Description

Brand: YEPLOOK
Length: about 60+20cm/ 23.6 + 7.8 inch/ 1.97 + 0.66 ft.
Interface: PSU 8Pin to PCI-E 2x 8Pin (6+2)
Cable Gauge: 18AWG standard tin-coating copper wire.
Temperature Range: -30°C ~ 80°C
Conductor Construction: 34x 0.178 mm thick inner wires combined.
Package List: 1x PCI-e 2x 8Pin GPU Power Cable for Seasonic Prime Ultra Titanium/Platinum/Gold Modular

Features


1.
Benefits of tinned copper wire: add an extra layer of protection. Improves the performance and life.

2. Flat cables have a much greater flexibility allowing tighter folding and good management of cables.
3. PCI-e GPU power cable is compatible with GPU cards with 8pin, 6pin or 8pin+6pin power socket.

Installation

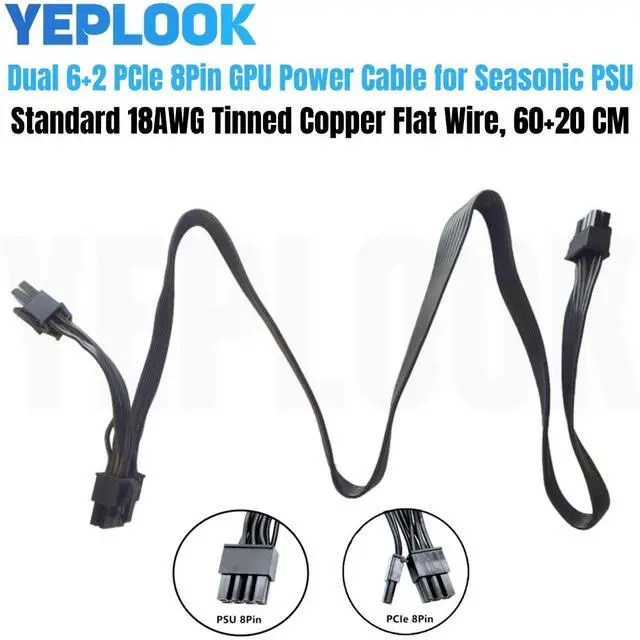

The only correct way to connect this PCIe cable is 7Pin port [PSU side] insert into modular power. The 6+2 PIN [PCIE] port insert into GPU card side.

Questions

Q 1: Why is its [PSU] interface only 7Pin?
A 1: PSU 8Pin has a double wired pin, so there is an empty hole. Because GPU card power supply only needs 3-Pins 12V signals. The other 5-Pins are GND signals.

Q 2: Can I use it power for CPU?
A 2: No, although the CPU interface in the power panel is shared with the PCIE interface. The PCIE 8Pin connector pinout differs and has a different latch position. It is distinct from the 8-Pin EPS/CPU connector.

Q 3: Does it work with other brands of module power supplies?
A 3: No, it only compatible with Seasonic modular powers mentioned above.
