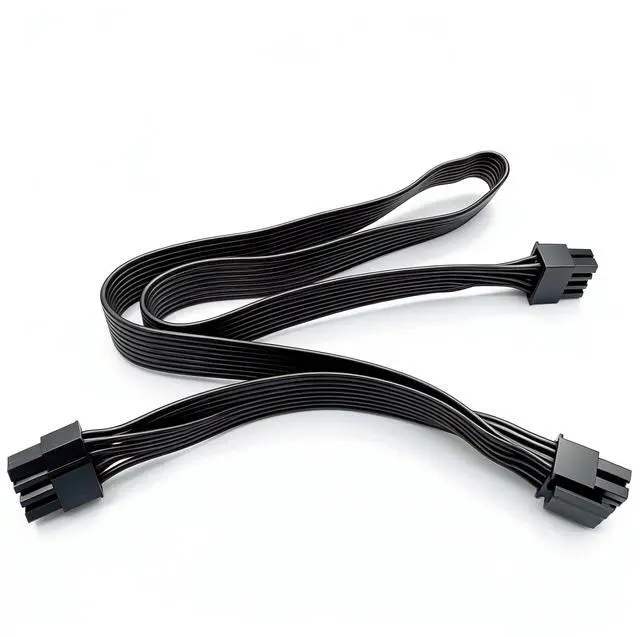

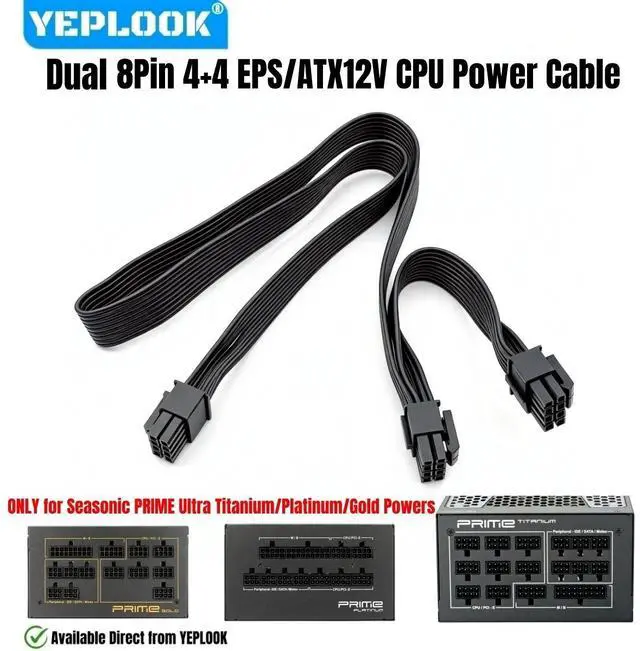

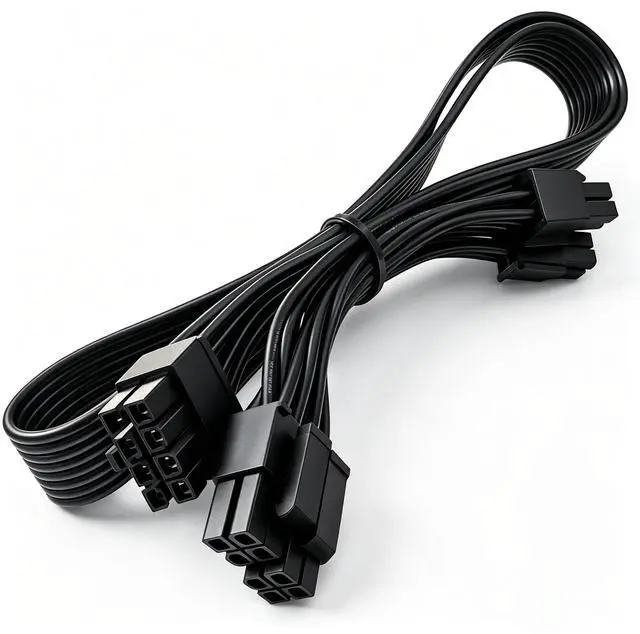

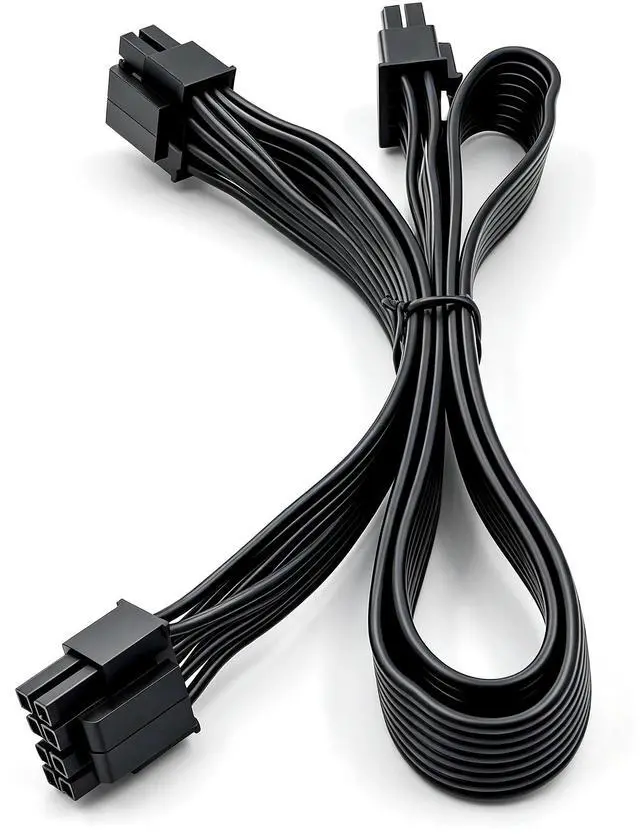

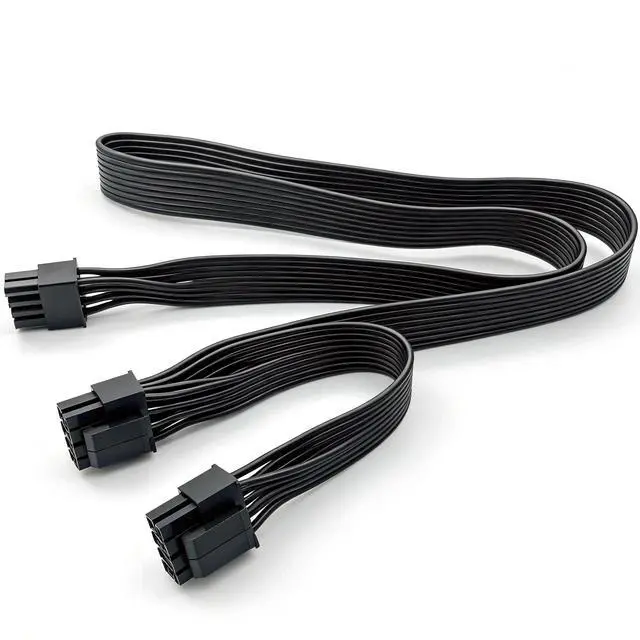

Dual CPU Power Cable 2x 8Pin 4+4 for Seasonic PRIME Ultra Titanium/Platinum/Gold 1300W, 1000W, 850W, 750W, 650W, 550W Modulars

YEPLOOK Dual CPU Power Cable 2x 8Pin 4+4 EPS/ATX12V for Seasonic PRIME Ultra Titanium/Platinum/Gold 1300W, 1000W, 850W, 750W, 650W, 550W Modular Powers, 18AWG Tinned Copper Wire, 60 CM/ 23.6 inch/ 1.97 ft

*YEPLOOK Store Pre-Purchase Notice:

1. All images are for reference only. If you need, please contact us for real photos.

2. Please check compatibility before you buy, mix use cables may cause damage.

3. We are responsible for quality inspection and customer support of cables sold direct from YEPLOOK.

This 8Pin 4+4 EPS/ATX12V Single CPU Power Cable is Only Compatible with G14Seasonic PRIME Ultra Titanium / Platinum /
Gold Series Modular Powers Below:

Compatible with Seasonic PRIME Ultra Titanium /
PRIME TX Series Modular Powers:
Model: SSR-1000TR (PRIME Ultra 1000 Titanium / PRIME TX-1000)
Model: SSR-850TR (PRIME Ultra 850 Titanium / PRIME TX-850)
Model: SSR-750TR (PRIME Ultra 750 Titanium / PRIME TX-750)
Model: SSR-650TR (PRIME Ultra 650 Titanium / PRIME TX-650)

Compatible with Seasonic PRIME Ultra Platinum /
PRIME PX Series Modular Powers:
Model: SSR-1000PD Active PFC F3 (PRIME Ultra 1000 Platinum / PRIME PX-1000)
Model: SSR-850PD Active PFC F3 (PRIME Ultra 850 Platinum / PRIME PX-850
Model: SSR-750PD Active PFC F3 (PRIME Ultra 750 Platinum / PRIME PX-750)
Model: SSR-650PD Active PFC F3 (PRIME Ultra 650 Platinum / PRIME PX-650)+G16
Model: SSR-550PD Active PFC F3 (PRIME Ultra 550 Platinum / PRIME PX-550)

Compatible with Seasonic PRIME Ultra Gold /
PRIME GX Series Modular Powers:
Model: SSR-1300GD Active PFC F3 (PRIME 1300 Gold / PRIME GX-1300)
Model: SSR-1000GD Active PFC F3 (PRIME Ultra 1000 Gold / PRIME GX-1000)
Model: SSR-850GD Active PFC F3 (PRIME Ultra 850 Gold / PRIME GX-850)
Model: SSR-750GD² Active PFC F3 (PRIME Ultra 750 Gold / PRIME GX-750)
Model: SSR-650GD² Active PFC F3 (PRIME Ultra 650 Gold / PRIME GX-650)
Model: SSR-550GD² Active PFC F3 (PRIME Ultra 550 Gold / PRIME GX-550)

Not Compatible with modulars of other brands and models. DO NOT mix use power cables between different brands and models. It may cause damage. Please check compatibility with us to ensure proper installation and operation.

* Not Compatible with Seasonic Old Versions of
Modular Powers Below:
* Not Compatible with Seasonic X Series: SS-650KM, SS-750KM, SS-560KM, SS-660KM, SS-760KM, SS-850KM, SS-1050XM, SS-1250XM.
* Not Compatible with Seasonic P Series: SS-1000XP, SS-860XP.
* Not Compatible with Seasonic FL Series: SS-400FL, SS-460FL.

Description

Brand: YEPLOOK
Interface: PSU 8Pin to CPU 2x 8Pin 4+4Pin
Length: about 60+20cm/ 23.6 + 7.8 inch/ 1.97 + 0.66 ft.
Cable Gauge: 18AWG standard tin-plated copper wire.
Temperature Range: -30°C ~ 80°C
Number of Inner Wires: 34 PCS
Package List: 1x Dual 8Pin 4+4 CPU Power Cable for Seasonic PRIME Ultra Modular Powers.

Advantages


1.
Gauge: Made of 18AWG tinned copper wire, solid connectors and sturdy cable, adding an extra layer of protection, improving the performance and extending the service life of this wire.

2. Soft flat ribbon cables are wieldy, easy to solder and bend. Have a greater flexibility allowing tighter folding and cable management.

3. This 4Pin CPU cable can supply up to 155 watts & the 8Pin CPU cable can supply up to 235 watts.

Installation

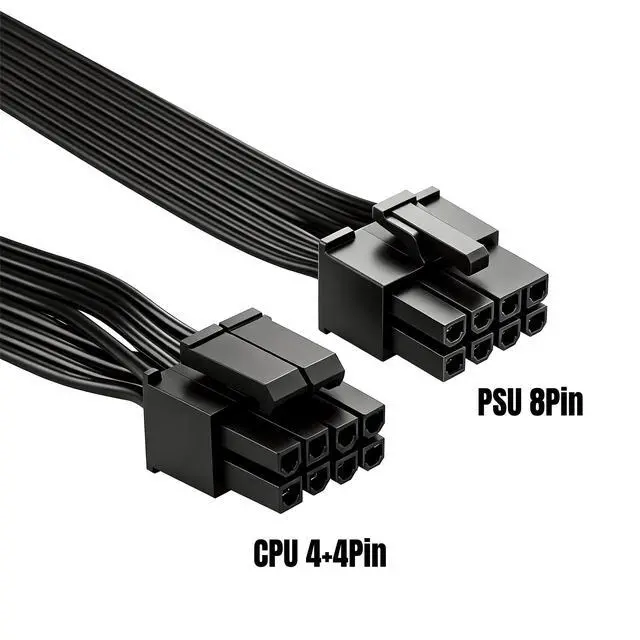

PSU 8Pin plug into power supply side. (8Pin male connector is ATX 8 pin, not pci-e 8 pin. )
CPU 8Pin (4+4Pin) plug into M/B side. (EPS 4+4Pin used as 8Pin or 4Pin by sliding on/off the 4Pin. )

Questions

Q 1: Can I use it power for GPU Card?
A 1: No, although the CPU interface in the power panel is shared with the PCIE interface.

Q 2: Does it work with other brands of module power supplies?
+G16A 2: No, it only compatible with Seasonic PRIME Ultra Titanium / Platinum / Gold Series Modular Powers.
