6+2 PCIe 8Pin GPU Power Cable for Seasonic Prime Ultra Titanium/Platinum/Gold 1300W, 1000W, 850W, 750W, 650W, 550W Modular Power

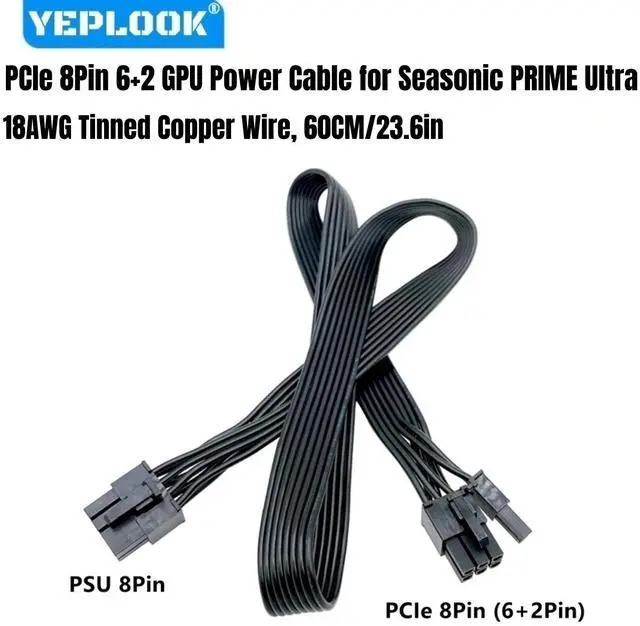

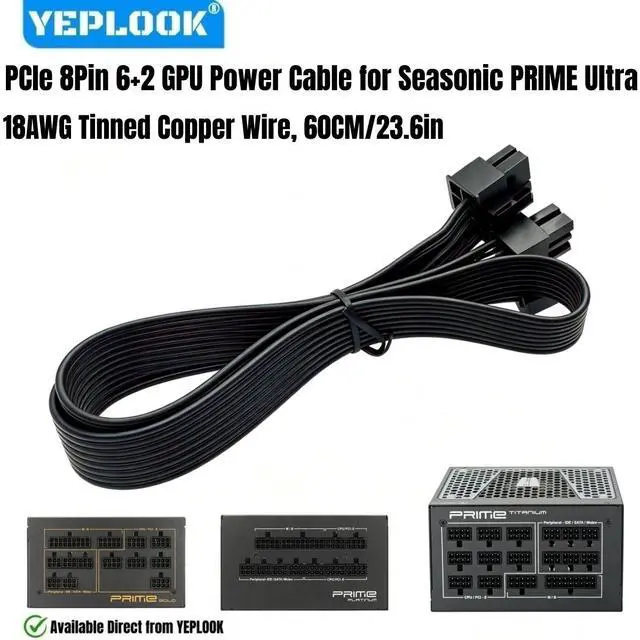

YEPLOOK 6+2 PCIe 8Pin GPU Power Cable for Seasonic Prime Ultra Titanium/Platinum/Gold 1300W, 1000W, 850W, 750W, 650W, 550W Modular Powers, 18AWG Tinned Copper Wire, 60 CM/ 23.6 in/ 1.97 ft

* YEPLOOK will test cables to ensure seamless connection and to avoid any pin issues.

This PCIe Single 8Pin 6+2 Sleeved Net GPU Power Supply Cable is Only Compatible with Seasonic PRIME Ultra Titanium / Platinum /
Gold Series Modular Powers Below:

Compatible with Seasonic PRIME Ultra Titanium /
PRIME TX Series Modular Powers:
Model: SSR-1000TR (PRIME Ultra 1000 Titanium / PRIME TX-1000)
Model: SSR-850TR (PRIME Ultra 850 Titanium / PRIME TX-850)
Model: SSR-750TR (PRIME Ultra 750 Titanium / PRIME TX-750)
Model: SSR-650TR (PRIME Ultra 650 Titanium / PRIME TX-650)

Compatible with Seasonic PRIME Ultra Platinum /
PRIME PX Series Modular Powers:
Model: SSR-1000PD Active PFC F3 (PRIME Ultra 1000 Platinum / PRIME PX-1000)
Model: SSR-850PD Active PFC F3 (PRIME Ultra 850 Platinum / PRIME PX-850
Model: SSR-750PD Active PFC F3 (PRIME Ultra 750 Platinum / PRIME PX-750)
Model: SSR-650PD Active PFC F3 (PRIME Ultra 650 Platinum / PRIME PX-650)
Model: SSR-550PD Active PFC F3 (PRIME Ultra 550 Platinum / PRIME PX-550)

Compatible with Seasonic PRIME Ultra Gold /
PRIME GX Series Modular Powers:
Model: SSR-1300GD Active PFC F3 (PRIME 1300 Gold / PRIME GX-1300)
Model: SSR-1000GD Active PFC F3 (PRIME Ultra 1000 Gold / PRIME GX-1000)
Model: SSR-850GD Active PFC F3 (PRIME Ultra 850 Gold / PRIME GX-850)
Model: SSR-750GD² Active PFC F3 (PRIME Ultra 750 Gold / PRIME GX-750)
Model: SSR-650GD² Active PFC F3 (PRIME Ultra 650 Gold / PRIME GX-650)
Model: SSR-550GD² Active PFC F3 (PRIME Ultra 550 Gold / PRIME GX-550)

Not Compatible with modulars of other brands and models. DO NOT mix use power cables between different brands and models. It may cause damage. Please check compatibility with us to ensure proper installation and operation.

* Not Compatible with Seasonic Old Versions of
Modular Powers Below:
* Not Compatible with Seasonic X Series: SS-650KM, SS-750KM, SS-560KM, SS-660KM, SS-760KM, SS-850KM, SS-1050XM, SS-1250XM.
* Not Compatible with Seasonic P Series: SS-1000XP, SS-860XP.
* Not Compatible with Seasonic FL Series: SS-400FL, SS-460FL.

Description

Brand: YEPLOOK
Length: about 60 CM / 23.62 inch / 1.97 ft.

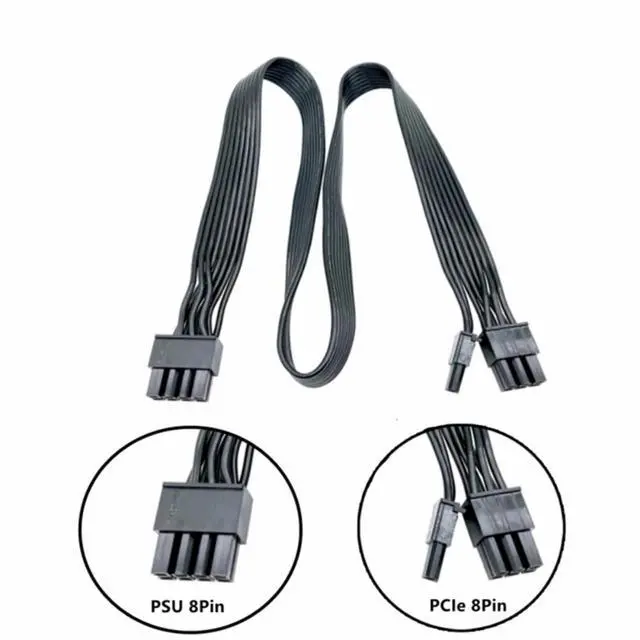

Interface: PSU 8Pin to PCI-E Single 8Pin (6+2)
Cable Gauge: 18AWG standard tinned copper wire combined with high-quality nylon safety braided mesh.
Temperature Range: -30°C ~ 80°C
Conductor Construction: 34x 0.178 mm thick inner wires combined.
Package List: 1x PCI-e 8Pin GPU Power Cable for Seasonic Prime Ultra Titanium/Platinum/Gold Modular Powers

Features


1.
Gauge: Made of 18AWG tinned copper wire, solid connectors and sturdy cable, adding an extra layer of protection, improving the performance and extending the service life of this wire.

2. Soft sleeved net cables are wieldy, easy to solder and bend. Have a greater flexibility allowing tighter folding and cable management.
3. YEPLOOK PCI-e 6+2Pin GPU power cable compatible with GPU graphics card that has 8pin, 6pin or 8pin+6pin power socket.

4. Support power at most 800W for GTX1080, GTX1080Ti, RTX2060, RTX2070, RTX2080, RTX2080Ti, RTX3060, RTX3070, RTX3080Ti, RTX3090Ti, RTX4060. RTX4080, RTX4090, RX570, RX580, RX590, RX5700 XT, RX6700 XT, RX6800 XT, RX6900 XT, etc.

Installation

The only correct way to connect this PCIe cable is 7Pin port [PSU side] insert into modular power. The 6+2 PIN [PCIE] port insert into GPU card side.
