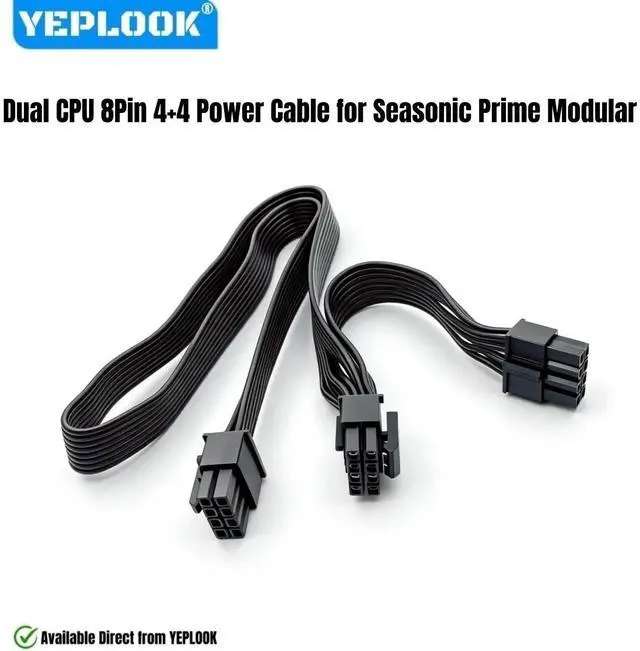

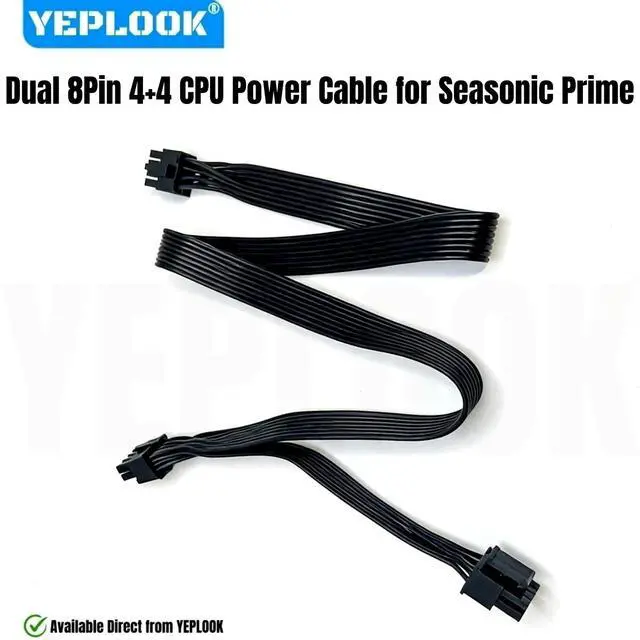

YEPLOOK Dual 4+4 EPS12V/ATX12V CPU Power Cable for Seasonic PRIME Titanium/Platinum/Gold/SNOWSILENT 1300W, 1000W, 850W, 750W, 650W, 550W

YEPLOOK Dual 4+4 EPS12V/ATX12V CPU Power Cable for Seasonic PRIME Titanium/Platinum/Gold/SNOWSILENT 1300W, 1000W, 850W, 750W, 650W, 550W Modular Powers, 18AWG Tinned Copper Wire+G32

Description

Interface: PSU 8Pin to CPU Dual 8Pin (4+4)

Wire Gauge: 18AWG standard tin-plated copper wire.
Working Temperature Range: -30°C ~ 80°C
Conductor Construction: 34x 0.178 mm inner wires combined.
Package List: 1x Dual 8Pin 4+4 CPU Power Cable for Seasonic PRIME Series Modular Powers.
Advantages: Made of 18AWG tinned copper wire, solid connectors and sturdy cable, improving the performance and extending the service life of this wire. Soft flat ribbon cables are wieldy, easy to bend, allowing tighter folding and better cable management.

This Dual CPU Power Cable is Compatible with Seasonic PRIME All Series Modular Powers Below:

Compatible with Seasonic PRIME Titanium Series Modular Powers:
Model: SSR-1000TD Active PFC F3 (PRIME TX-1000, PRIME 1000 Titanium)
Model: SSR-850TD Active PFC F3 (PRIME TX-850, PRIME 850 Titanium)
Model: SSR-750TD Active PFC F3 (PRIME TX-750, PRIME 750 Titanium)
Model: SSR-650TD Active PFC F3 (PRIME TX-650, PRIME 650 Titanium)

Compatible with Seasonic PRIME Platinum Series Modular Powers:
Model: SSR-1200PD Active PFC F3 (PRIME PX-1200, PRIME 1200 Platinum)
Model: SSR-1000PD Active PFC F3 (PRIME PX-1000, PRIME 1000 Platinum)
Model: SSR-850PD Active PFC F3 (PRIME PX-850, PRIME 850 Platinum)
Model: SSR-750PD Active PFC F3 (PRIME PX-750, PRIME 750 Platinum)
Model: SSR-650PD Active PFC F3 (PRIME PX-650, PRIME 650 Platinum)

Compatible with Seasonic PRIME Gold Series Modular Powers:
Model: SSR-1300GD Active PFC F3 (PRIME 1300 Gold, PRIME GX-1300)
Model: SSR-1000GD Active PFC F3 (PRIME 1000 Gold, PRIME GX-1000)
Model: SSR-850GD Active PFC F3 (PRIME 850 Gold, PRIME GX-850)
Model: SSR-750GD Active PFC F3 (PRIME 750 Gold, PRIME GX-750)
Model: SSR-650GD Active PFC F3 (PRIME 650 Gold, PRIME GX-650)

Compatible with Seasonic PRIME Fanless Series Modular Powers:
Model: SSR-700TL (PRIME Fanless TX-700)
Model: SSR-600TL (PRIME Fanless TX-600)
Model: SSR-500PL (PRIME Fanless PX-500)
Model: SSR-450PL (PRIME Fanless PX-450)

Compatible with Seasonic PRIME SNOWSILENT Series Modular Powers:
Model: SSR-750TR-SNOWSILENT (PRIME SnowSilent 750 Titanium)
Model: SSR-650PD2-SNOWSILENT (PRIME SnowSilent 650 Platinum)
Model: SSR-550GD2-SNOWSILENT (PRIME SnowSilent 550 Gold)

Compatible with Seasonic PRIME AirTouch Series Modular Powers:
Model: SSR-850GD Active PFC F3 (PRIME AirTouch 850 Gold)

Not Compatible with modulars of other brands and models.
Not Compatible with Seasonic Old Versions of
Modular Powers Below:
Not Compatible with Seasonic X Series: SS-650KM, SS-750KM, SS-560KM, SS-660KM, SS-760KM, SS-850KM, SS-1050XM, SS-1250XM.
Not Compatible with Seasonic P Series: SS-1000XP, SS-860XP.
Not Compatible with Seasonic FL Series: SS-400FL, SS-460FL.

* DO NOT mix use power cables between different brands and models. It may cause damage. Please check compatibility with us to ensure proper installation and operation.

Installation

PSU 8Pin plug into power supply side. (8Pin male connector is ATX 8 pin, not pci-e 8 pin. ) CPU 8Pin (4+4Pin) plug into M/B side. (EPS 4+4Pin used as 8Pin or 4Pin by sliding on/off the 4Pin. )
For motherboard requires a 4pin ATX 12V (CPU) connector, please detach a 4pin connector. For motherboard requires a 8pin EPS connector, please use the 4+4pin connector.

Questions

Q 1: Can I use it power for GPU Card?
A 1: No, although the CPU interface in the power panel is shared with the PCIE interface.

Q 2: Does it work with other brands of module power supplies?
A 2: No, it is only compatible with Seasonic PRIME Ultra Titanium / Platinum / Gold Series Modular Powers.
