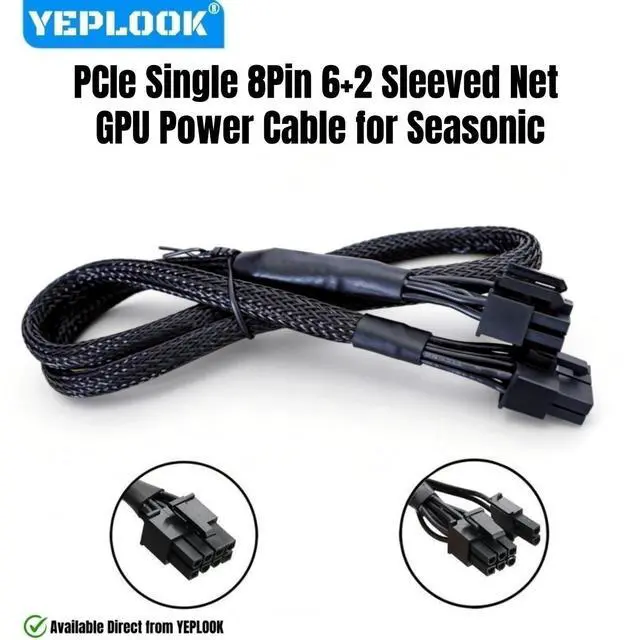

YEPLOOK GPU Power Cable for Seasonic PRIME, PCIe 6+2Pin Sleeved Net for Titanium/Platinum/Gold/SNOWSILENT 1300W, 1000W, 850W, 750W, 650W

YEPLOOK GPU Power Cable for Seasonic PRIME, PCIe 6+2Pin Sleeved Net for Titanium/Platinum/Gold/SNOWSILENT 1300W, 1000W, 850W, 750W, 650W, 550W Modular Powers

This PCIe 8Pin 6+2 Sleeved Net GPU Power Cable is Compatible with Seasonic PRIME All Series Modular Powers Below:

Compatible with Seasonic PRIME Titanium Series Modular Powers:
Model: SSR-1000TD Active PFC F3 (PRIME TX-1000, PRIME 1000 Titanium)
Model: SSR-850TD Active PFC F3 (PRIME TX-850, PRIME 850 Titanium)
Model: SSR-750TD Active PFC F3 (PRIME TX-750, PRIME 750 Titanium)
Model: SSR-650TD Active PFC F3 (PRIME TX-650, PRIME 650 Titanium)

Compatible with Seasonic PRIME Platinum Series Modular Powers:
Model: SSR-1600PD Active PFC F3 (PRIME PX-1600, PRIME 1600 Platinum)
Model: SSR-1300PD Active PFC F3 (PRIME PX-1300, PRIME 1300 Platinum)
Model: SSR-1200PD Active PFC F3 (PRIME PX-1200, PRIME 1200 Platinum)
Model: SSR-1000PD Active PFC F3 (PRIME PX-1000, PRIME 1000 Platinum)
Model: SSR-850PD Active PFC F3 (PRIME PX-850, PRIME 850 Platinum)
Model: SSR-750PD Active PFC F3 (PRIME PX-750, PRIME 750 Platinum)
Model: SSR-650PD Active PFC F3 (PRIME PX-650, PRIME 650 Platinum)

Compatible with Seasonic PRIME Gold Series Modular Powers:
Model: SSR-1300GD Active PFC F3 (PRIME 1300 Gold, PRIME GX-1300)
Model: SSR-1000GD Active PFC F3 (PRIME 1000 Gold, PRIME GX-1000)
Model: SSR-850GD Active PFC F3 (PRIME 850 Gold, PRIME GX-850)
Model: SSR-750GD Active PFC F3 (PRIME 750 Gold, PRIME GX-750)
Model: SSR-650GD Active PFC F3 (PRIME 650 Gold, PRIME GX-650)

Compatible with Seasonic PRIME Fanless Series Modular Powers:
Model: SSR-700TL (PRIME Fanless TX-700)
Model: SSR-600TL (PRIME Fanless TX-600)
Model: SSR-500PL (PRIME Fanless PX-500)
Model: SSR-450PL (PRIME Fanless PX-450)

Compatible with Seasonic PRIME SNOWSILENT Series Modular Powers:
Model: SSR-750TR-SNOWSILENT (PRIME SnowSilent 750 Titanium)
Model: SSR-650PD2-SNOWSILENT (PRIME SnowSilent 650 Platinum)
Model: SSR-550GD2-SNOWSILENT (PRIME SnowSilent 550 Gold)

Compatible with Seasonic PRIME AirTouch Series Modular Powers:
Model: SSR-850GD Active PFC F3 (PRIME AirTouch 850 Gold)

Mix use power cables between different brands and models may cause damage. Please check compatibility with us to ensure proper installation and operation.

* Not Compatible with modulars of other brands and models.
* Not Compatible with Seasonic Old Versions of
Modular Powers Below:
* Not Compatible with Seasonic X Series: SS-650KM, SS-750KM, SS-560KM, SS-660KM, SS-760KM, SS-850KM, SS-1050XM, SS-1250XM.
* Not Compatible with Seasonic P Series: SS-1000XP, SS-860XP.
* Not Compatible with Seasonic FL Series: SS-400FL, SS-460FL.

Description

Length: about 60 CM / 23.62 inch / 1.97 ft.
Interface: PSU 8Pin to PCI-E Single 8Pin (6+2)
Cable Gauge: 18AWG standard tinned copper wire combined with nylon braided mesh.
Package List: 1x PCI-e 8Pin 6+2 Sleeved Net GPU Power Cable for Seasonic Prime All Series Modular Powers

Features


1.
Gauge: Made of 18AWG tinned copper wire, solid connectors and sturdy cable.

2. Soft sleeved net cables are wieldy, easy to solder and bend. Have a greater flexibility allowing tighter folding and cable management.
3. YEPLOOK PCI-e 6+2Pin GPU power cable compatible with GPU graphics card that has 8pin, 6pin or 8pin+6pin power socket.

4. Support power at most 800W for GTX1080, GTX1080Ti, RTX2060, RTX2070, RTX2080, RTX2080Ti, RTX3060, RTX3070, RTX3080Ti, RTX3090Ti, RTX4060. RTX4080, RTX4090, RX570, RX580, RX590, RX5700 XT, RX6700 XT, RX6800 XT, RX6900 XT, etc.

Questions

Q 1: Why is its [PSU] interface only 7Pin?
A 1: PSU 8Pin has a double wired pin, so there is an empty hole. Because GPU card power supply only needs 3-Pins 12V signals. The other 5-Pins are GND signals.

Q 2: Can I use it power for CPU?
A 2: No, although the CPU interface in the power panel is shared with the PCIE interface. The PCIE 8Pin connector pinout differs and has a different latch position. It is distinct from the 8-Pin EPS/CPU connector.
